RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Deck Lift & Controls 2008 & Before Parts Diagram

42" RZT Zero-Turn Mower, Kohler

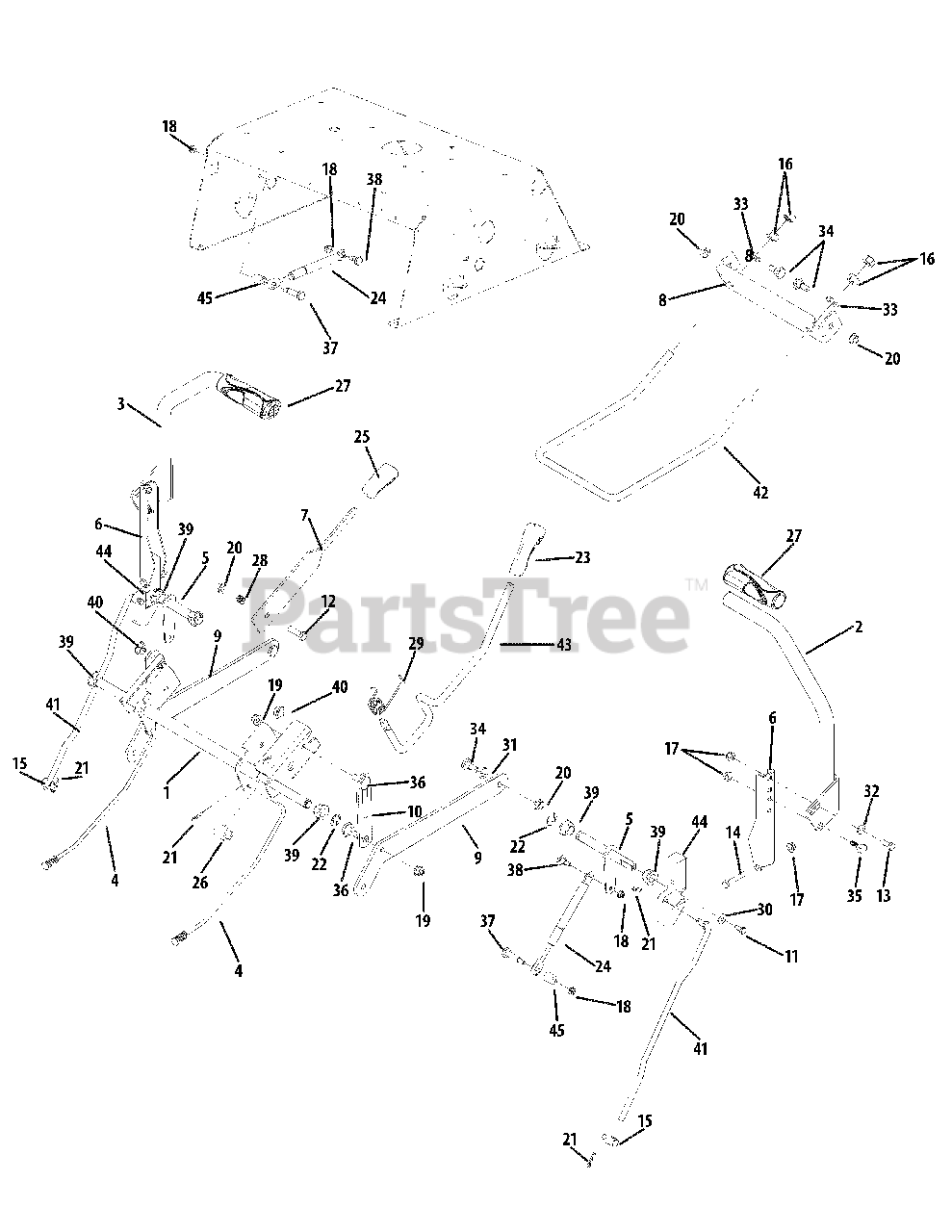

Deck Lift & Controls 2008 & Before Parts Diagram

  • Title

1

Cub Cadet 603-04160B

Deck Lift Shaft Assembly
(Superseded to 603-04160C-0637)

Variations

Cub Cadet 603-04160B-0637

USE 603-04160C-0637 SHAFT ASM - POWDER BLACK (0637)

$150.99

$

Usually ships in 3-6 days

0

$150.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-04322

Lapbar Lever RH

Variations

Cub Cadet 603-04322-0638

HANDLE-RH LAPBAR - MTD/TROY-BILT RED (0638)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04322-0637

Right Lapbar Handle - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-04322-0662

HANDLE-RH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 603-04322-4021

HANDLE-RH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 603-04322-0709

HANDLE-RH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 603-04322-4038

HANDLE-RH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$

$

3

Cub Cadet 603-04324

Lapbar Lever LH

Variations

Cub Cadet 603-04324-0637

Left Lapbar Handle - POWDER BLACK (0637)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04324-0638

HANDLE-LH LAPBAR - MTD/TROY-BILT RED (0638)

$70.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04324-0662

HANDLE-LH LAPBAR - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 603-04324-4021

HANDLE-LH LAPBAR - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 603-04324-0709

HANDLE-LH LAPBAR - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 603-04324-4038

HANDLE-LH LAPBAR - DAY ORANGE (4038)

$

$

Not available

$61.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 747-04651

Brake Rod

$16.99

$

In Stock, only 1 left!

0

5

Cub Cadet 647-04099

Control Shaft
(Superseded to 647-04099A)

$85.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-05387B

Lapbar Pivot Bracket

$26.99

$

In Stock, Qty 8

0

7

Cub Cadet 703-05396A

Brake Handle
(Superseded to 703-05396A-0637)

Variations

Cub Cadet 703-05396A-0637

Brake Handle - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-05414A

Front Deck Hanger Bracket

Variations

Cub Cadet 703-05414A-0606

BRACKET-DECK HANGER - MAJESTIC ORANGE (0606)

$57.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4021

Hanger Deck Bracket - CUB YELLOW 2 (4021)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0650

BRACKET-DECK HANGER - RED METALLIC (0650)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0691

BRACKET-DECK HANGER - BLACK JACK (0691)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4033

Hanger Deck Bracket - FLINT MICA (4033)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4044

BRACKET-DECK HANGER - CRAFTSMAN RED (4044)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0637

BRACKET-DECK HANGER - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0638

BRACKET-DECK HANGER - MTD/TROY-BILT RED (0638)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0674

BRACKET-DECK HANGER - YARDMAN YELLOW (0674)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0709

BRACKET-DECK HANGER - MASTERCRAFT GREEN (0709)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-0716

BRACKET-DECK HANGER - CUB YELLOW-99 (0716)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05414A-4015

BRACKET-DECK HANGER - FIRE RED (4015)

$61.99

$

Usually ships in 3-6 days

0

$49.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-05793A

Deck Lift Arm

Variations

Cub Cadet 703-05793A-0637

Deck Lift Arm - POWDER BLACK (0637)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-0606

Deck Lift Arm - MAJESTIC ORANGE (0606)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-0638

ARM-DECK LIFT - MTD/TROY-BILT RED (0638)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-0674

ARM-DECK LIFT - YARDMAN YELLOW (0674)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-0691

Deck Lift Arm - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-0716

Deck Lift Arm - CUB YELLOW-99 (0716)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-4015

ARM-DECK LIFT - FIRE RED (4015)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-05793A-4021

Deck Lift Arm - CUB YELLOW 2 (4021)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-4033

ARM-DECK LIFT - FLINT MICA (4033)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-4044

ARM-DECK LIFT - CRAFTSMAN RED (4044)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-0650

ARM-DECK LIFT - RED METALLIC (0650)

$49.99

$

In Stock, only 3 left!

0

Cub Cadet 703-05793A-0665

ARM-DECK LIFT - YARDMAN GREEN (0665)

$49.99

$

In Stock, only 3 left!

0

$40.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-06169

Lift Link Plate
(Superseded to 703-06169-0637)

Variations

Cub Cadet 703-06169-0637

Lift Link Plate, Rz - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-0433

Hex Lock Screw, 1/4-20 x .62

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-3005

Hex Cap Screw,3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3180

Hex Cap Screw, 5/16-18 x 1.75

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 711-0832

Ferrule, 3/8 -24 x .375
(Superseded to 911-0832)

$14.99

$

In Stock, Qty 7

0

16

Cub Cadet 712-0206

Hex Nut, 1/2-13

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04063

Hex Flange Insert Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04064

Hex Flange Insert Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-04065

Hex Flange Insert Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0431

Hex Flange Lock Nut, 3/8 -16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

Cub Cadet 714-0104

Cotter Pin

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 716-0106

E-Ring, .625 Dia.

$3.99

$

In Stock, only 3 left!

0

23

Cub Cadet 720-0311

Handle Grip

$14.99

$

In Stock, Qty 7

0

24

Cub Cadet 727-04141

Damper Cylinder
(Superseded to 927-04141)

$97.99

$

In Stock, Qty 7

0

25

Cub Cadet 731-04735

Handle Grip

$19.99

$

In Stock, only 3 left!

0

26

Cub Cadet 731-05732

Spacer, .62 x 1.0

$3.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-05882

Hand Grip
(Superseded to 759-04316)

$36.99

$

In Stock, Qty 5

0

28

Cub Cadet 732-0334

Compression Spring

$3.49

$

In Stock, Qty 20+

0

29

Cub Cadet 732-04869A

Spring, Torsion RZT

Note: Replaces 732-0874 in this application

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 13

0

31

Cub Cadet 736-0272

Flat Washer, .51 x 1.0 x .06

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0275

Flat Washer, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 736-3019

Flat Washer, .531 x 1.062 x .134

$5.49

$

In Stock, Qty 19

0

34

Cub Cadet 738-0143

Shoulder Screw, .498 x .340 x 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0296

Shoulder Screw, .437 x .268 x 5/16-18

$3.99

$

In Stock, Qty 11

0

36

Cub Cadet 738-0507B

Shoulder Screw, .5 x .434 x 3/8-16

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0572

Shoulder Screw, .374 x 1.16 x 1/4-20

$7.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 738-0974

Shoulder Screw, .375 x .38 x 1/4-20

$10.99

$

In Stock, only 3 left!

0

39

Cub Cadet 741-0225

Hex Flange Bearing
(Superseded to 941-0225)

$6.99

$

In Stock, Qty 20+

0

40

Cub Cadet 741-3074

Flange Bearing, .626 x .938 x .344

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 747-04225A

Lapbar Control Rod

$39.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-04401A

Deck Front Hanger Rod

$54.99

$

In Stock, only 1 left!

0

43

Cub Cadet 747-04637

Deck Lift Handle Rod

$48.99

$

In Stock, only 1 left!

0

44

Cub Cadet 748-04169

Control Hub
(Superseded to 748-04169A)

Variations

Cub Cadet 748-04169-0637

USE 748-04169A HUB-LABBAR CON - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

$44.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 750-04676

Spacer, .385 x .630 x .75

$19.99

$

In Stock, only 3 left!
