RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Electrical 2008 & Before Parts Diagram

42" RZT Zero-Turn Mower, Kohler

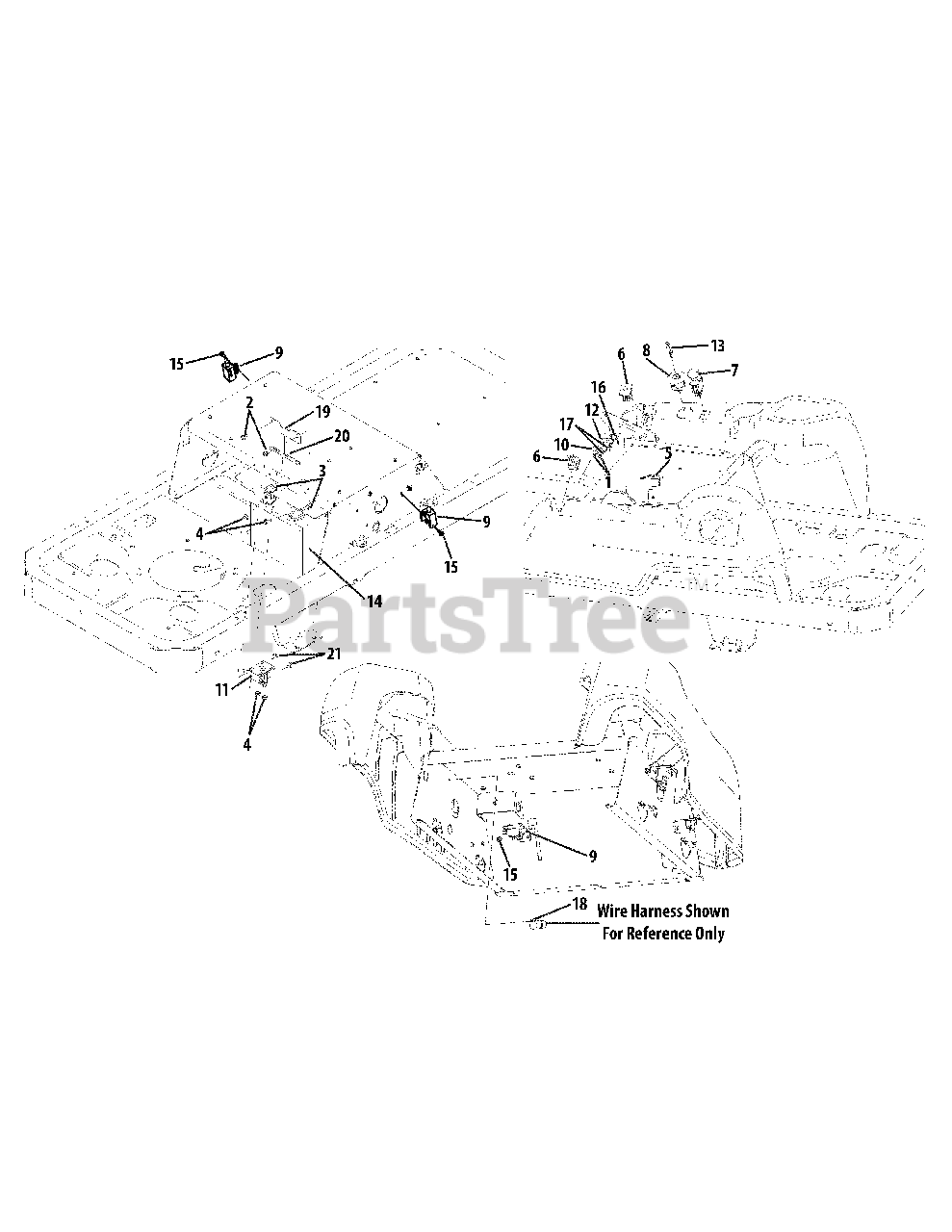

Electrical 2008 & Before Parts Diagram

  • Title

1

Cub Cadet 710-0227

Hex Screw, #8-18 x .5

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0271

Hex Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 725-04022B

Hour Meter
(Superseded to 925-04022B)

$136.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 725-04165

Double Pole Neutral Switch
(Superseded to 925-04165)

$30.99

$

In Stock, Qty 12

0

7

Cub Cadet 725-04174

PTO Switch
(Superseded to 925-04174A)

$65.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-04228

Ignition Switch
(Superseded to 925-04228)

$36.99

$

In Stock, Qty 20+

0

9

Cub Cadet 725-04363

Interlock Switch

$14.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725-1303

Outer Seat Swing Switch
(Superseded to 925-1303)

$5.99

$

In Stock, Qty 8

0

11

Cub Cadet 725-1426A

Solenoid
(Superseded to 925-1426A)

$24.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-1439

Inner Seat Spring Switch

$7.99

$

In Stock, Qty 8

0

13

Cub Cadet 725-1745

Key
(Superseded to 925-1745A)

$15.99

$

In Stock, Qty 20+

0

14

Cub Cadet 725-1737A

Battery, 235 CCA
(Superseded to 925-1707D)

$

$

Not available

15

Cub Cadet 738-04237A

Shoulder Screw, #10-32 x .500

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-0278

Insulator Boss Plate

$6.49

$

In Stock, Qty 10

0

17

Cub Cadet 726-0279

Insulator Plate

$3.49

$

In Stock, Qty 8

0

18

Cub Cadet 726-0470

Cable Tie

$4.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-05894

Batter Holdown
(Superseded to 703-05894-0637)

Variations

Cub Cadet 703-05894-0637

Battery Hold-Down Bracket - POWDER BLACK (0637)

$27.99

$

In Stock, only 3 left!

0

$27.99

$

In Stock, only 3 left!

0

20

Cub Cadet 731-0511

Trim Strip

$3.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 710-0653

Hex Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

Cub Cadet 925-04621A

Wiring Harness

Note: Not Shown

$172.99

$

Usually ships in 3-6 days

0
