RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Fuel System Parts Diagram

42" RZT Zero-Turn Mower, Kohler

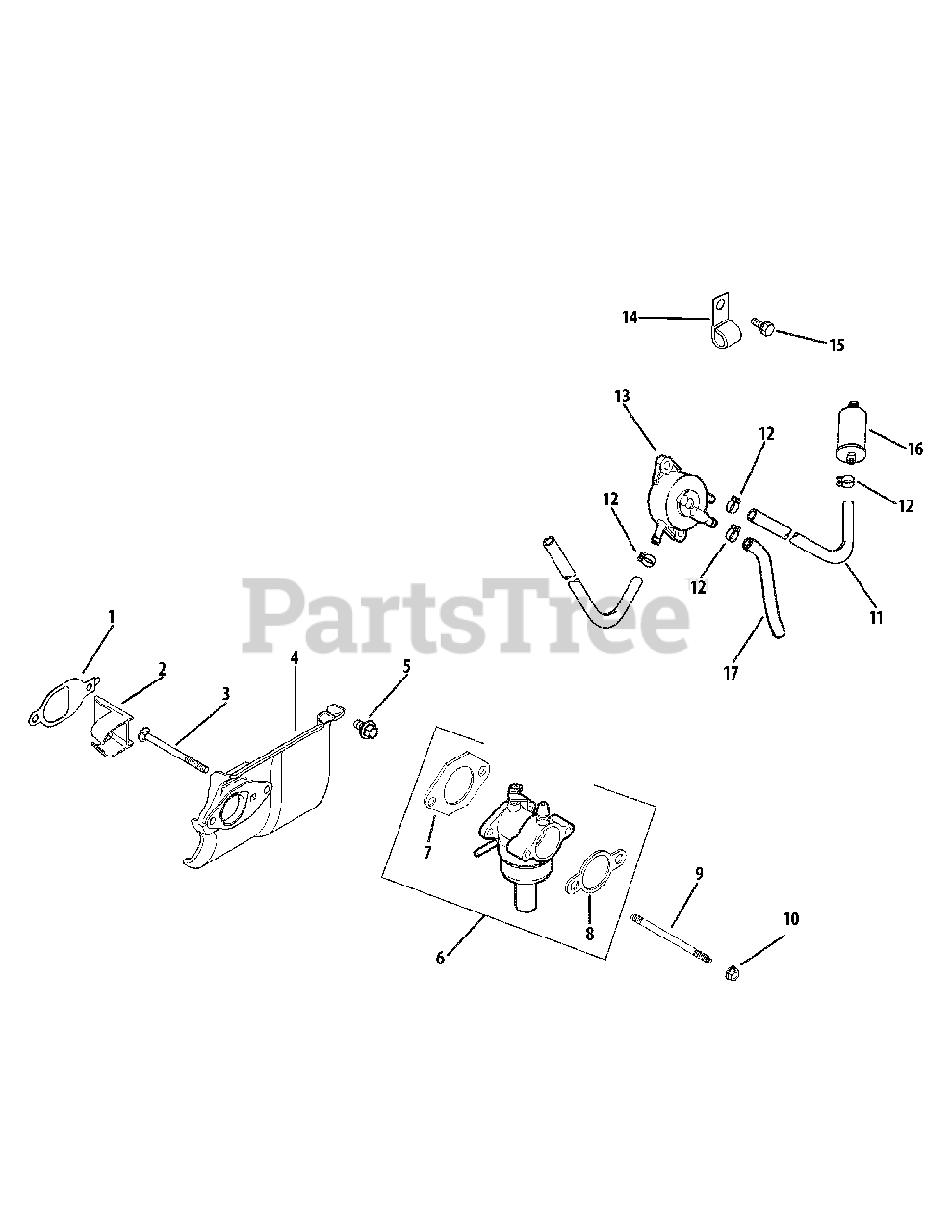

Engine Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, only 4 left!

0

2

Cub Cadet KH-20-332-01-S

Intake Port Insert

$2.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-20-072-07-S

Carburetor Stud
(Superseded to KH-20-072-09-S)

$2.99

$

In Stock, only 3 left!

0

4

Cub Cadet KH-20-265-07-S

Heat Deflector Kit
(Superseded to KH-20-265-09-S)

$29.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-M-651020-S

Flg Screw, M6 x 1.0 x 20

$2.49

$

In Stock, only 1 left!

0

6

Cub Cadet KH-20-853-33-S

Carburetor Kit

Note: (Inc. 7 & 8)

$194.99

$

In Stock, Qty 8

0

7

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 17

0

8

Cub Cadet KH-12-041-02

Air Cleaner Base Gasket

$2.99

$

In Stock, only 4 left!

0

9

Cub Cadet KH-20-072-05-S

Stud, M6 X 1.0 X 100
(Superseded to KH-20-072-10-S)

$6.49

$

In Stock, only 2 left!

0

10

Cub Cadet KH-M-641060-S

Flg Nut, M6 X 1.0

$4.49

$

In Stock, Qty 8

0

11

Cub Cadet KH-25-111-34-S

Fuel Line, 24"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, Qty 11

0

12

Cub Cadet KH-25-237-14-S

Spring Hose Clamp, 1/2"
(Superseded to KH-25-237-31-S)

$5.99

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

14

Cub Cadet KH-47-154-01-S

Cable Clip

$5.49

$

In Stock, only 1 left!

0

15

Cub Cadet KH-M-445010

Thrd Frm Screw, M4 X 0.7 X 10

$

$

Not available

16

Cub Cadet KH-25-050-22-S

Fuel Filter
(Superseded to KH-25-050-22-S1)

$9.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-353-10

Fuel Line

$

$

Not available

Cub Cadet KH-25-454-05-S

Tie

Note: (Not Shown)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1/4"

Note: (Not Shown)

$

$

Not available
