RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2008 - 2009) Engine Oil Pan & Lubrication Parts Diagram

42" RZT Zero-Turn Mower, Kohler

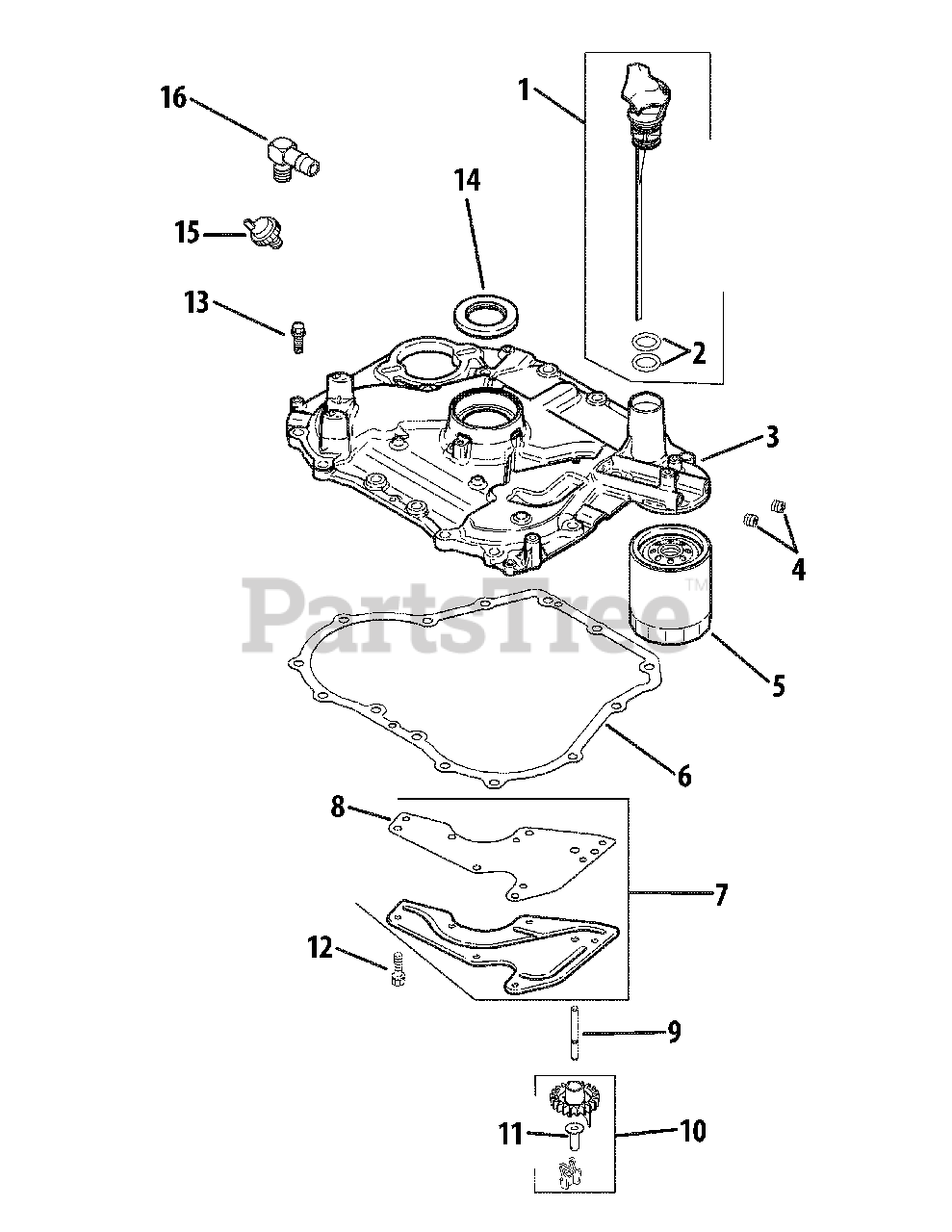

Engine Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-20-040-03-S

Dipstick w/ 2 O-Rings
(Superseded to KH-20-040-08-S)

Note: (Inc. 2)

$7.99

$

In Stock, Qty 11

0

2

Cub Cadet KH-20-153-01-S

O-Ring
(Superseded to KH-25-153-09-S)

$4.49

$

In Stock, Qty 8

0

3

Cub Cadet KH-20-009-21-S

Closure Plate Assembly Kit
(Superseded to KH-20-009-35-S)

$238.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-139-60-S

CTSK Pipe Plug, 1/8 "

$3.49

$

In Stock, only 2 left!

0

5

Cub Cadet KH-52-050-02-S

Oil Filter

$16.99

$

In Stock, Qty 20+

0

6

Cub Cadet KH-20-041-01-S

Closure Plate Gasket
(Superseded to KH-20-041-21-S)

$

$

Not available

7

Cub Cadet KH-20-096-02-S

Oil Passage Cover Kit

Note: (Inc. 8)

$

$

Not available

8

Cub Cadet KH-20-041-02-S

Oil Passage Gasket

$3.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-20-144-03-S

Governor Cross Shaft

$2.99

$

In Stock, Qty 8

0

10

Cub Cadet KH-25-310-01-S

Governor Gear Kit
(Superseded to KH-25-310-09-S)

Note: (Inc. 11)

$20.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

12

Cub Cadet KH-M-545013-S

Flg Thd Frm Screw, M5 x 0.8 x 13

$2.49

$

In Stock, only 3 left!

0

13

Cub Cadet KH-25-086-127-S

Hex Flange Screw, 1/2 Dog Point
(Superseded to KH-25-086-421-S)

$2.99

$

In Stock, only 3 left!

0

14

Cub Cadet KH-20-032-01-S

Oil Seal
(Superseded to KH-20-032-08-S)

$10.99

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-25-099-27-S

Oil Pressure Switch

$15.99

$

In Stock, Qty 6

0

16

Cub Cadet KH-25-155-02

90 Connector Hose

$

$

Not available
