RZT-42 (17AE2ACG010) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2010) Kohler SV600-0221 Ignition & Electrical Parts Diagram

42" RZT Zero-Turn Mower, Kohler

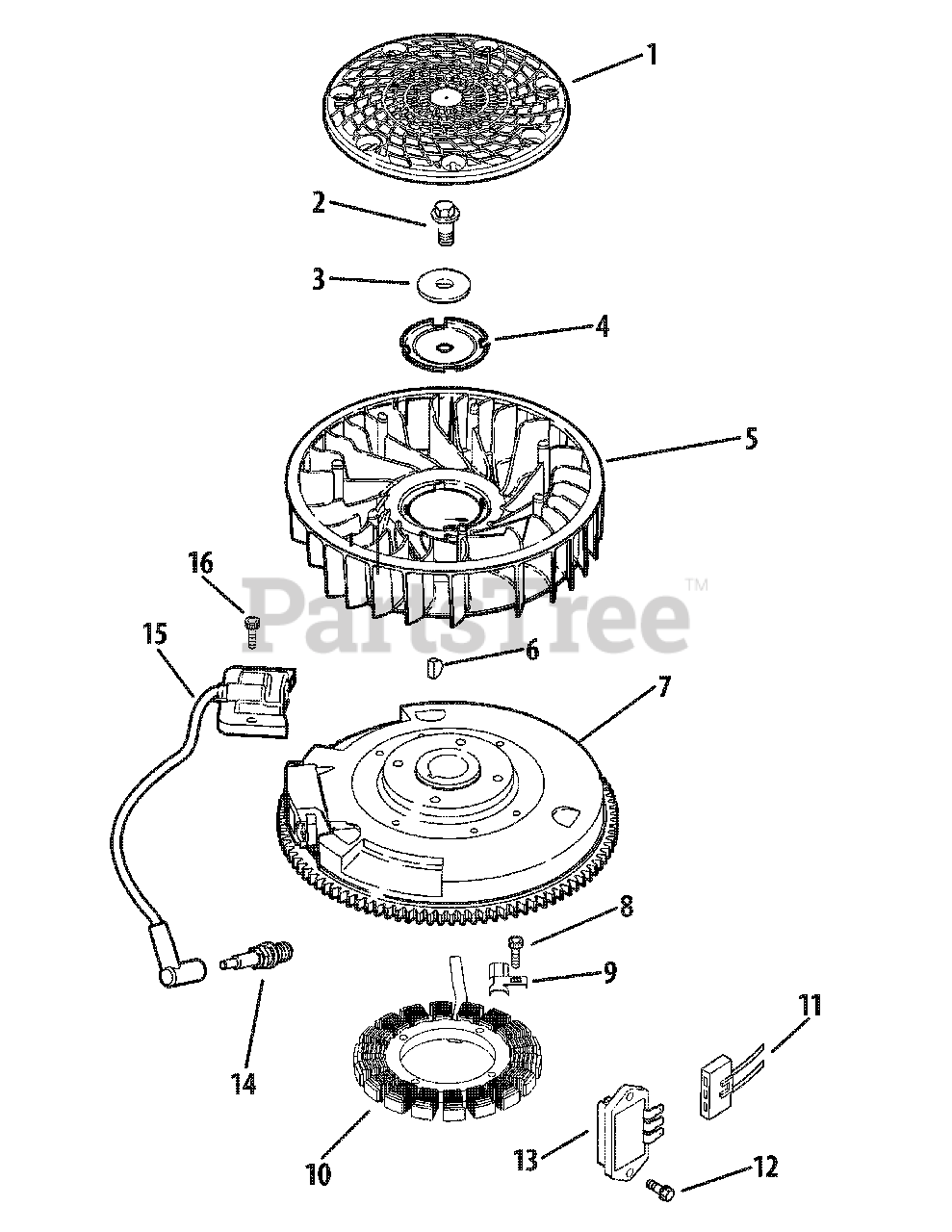

Kohler SV600-0221 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-20-162-02-S

Grass Screen

$7.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-086-125-S

Flg Screw, M10 x 1.5 x 45
(Superseded to KH-25-086-362-S)

$4.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-12-468-05

Flat Washer, 13/32"

$

$

Not available

4

Cub Cadet KH-20-146-05-S

Fan Mounting Plate

$2.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-20-157-01-S

Fan

$24.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-X-42-15

Key, 3/16" x 5/8"

$

$

Not available

7

Cub Cadet KH-20-025-40-S

Flywheel
(Superseded to KH-20-025-44-S)

$251.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-M-548025-S

Skt Thd Frm Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$3.49

$

In Stock, Qty 12

0

9

Cub Cadet KH-20-154-04-S

Sator Wire Clip

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-237878

15 Amp Stator Kit

$149.99

$

In Stock, Qty 7

0

11

Cub Cadet KH-25-155-41-S

Connector (3 Contact)

$31.99

$

In Stock, Qty 14

0

12

Cub Cadet KH-M-545020-S

Flg Thd Frm Screw, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$3.49

$

In Stock, Qty 20+

0

13

Cub Cadet KH-41-403-10-S

Rectifier-Regulator
(Superseded to KH-25-403-37-S)

$105.99

$

Usually ships in 2-5 days

0

14

Cub Cadet 759-3336

Spark Plug
(Superseded to RC12YC)

$3.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-20-584-03-S

Ignition Module

$32.99

$

In Stock, Qty 20+

0

16

Cub Cadet KH-M-561025-S

Skt Thd Frm Screw, M5 x 0.8 x 25

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-20-237-01-S

Cable Clamp

Note: (Not Shown)

$2.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-20-176-09-S

Wiring Harness
(Superseded to KH-20-176-11-S)

Note: (Not Shown)

$27.99

$

Usually ships in 2-5 days

0
