RZT-42 (17AE2ACG710) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2007) Rear Drive and Wheels Parts Diagram

42" RZT Zero-Turn Mower, Kohler

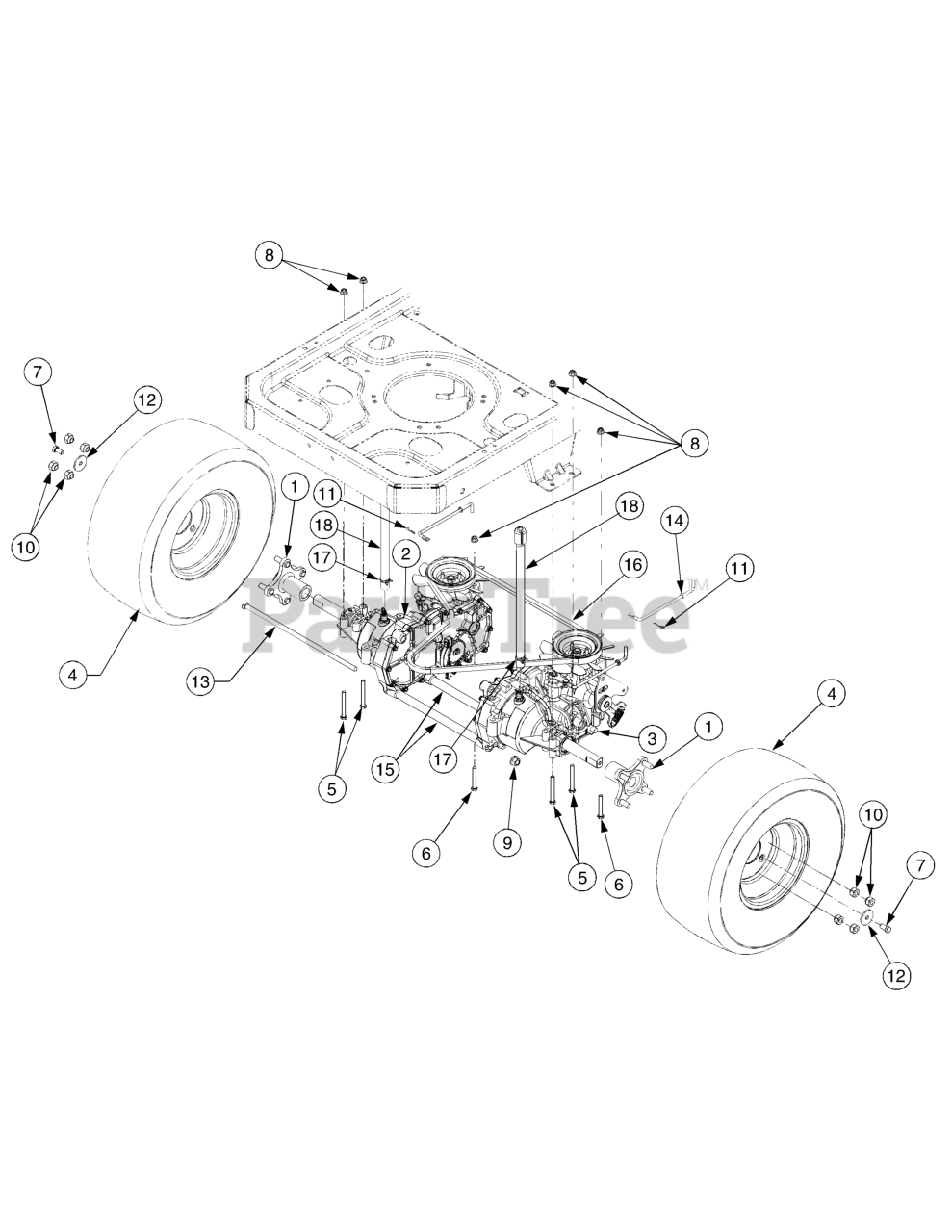

Rear Drive and Wheels Parts Diagram

  • Title

1

Cub Cadet 618-04317

Hub, Wheel
(Superseded to 918-04317)

$108.99

$

In Stock, Qty 13

0

1

Cub Cadet 710-0852

Stud, Rib Neck, 7/16-14 x 1.6

$5.99

$

In Stock, Qty 20+

0

2

Cub Cadet 618-04431

Transmission Assembly, LH
(Superseded to 918-04431B)

Note: Before Production Date A267

$1599.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618-04431A

Transmission Assembly, LH
(Superseded to 918-04431B)

Note: Production Date A267 & After -Replaces 618-04431

$1599.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-04432

Transmission Assembly, RH
(Superseded to 918-04432B)

Note: Before Production Date A267

$1679.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-04432A

Transmission Assembly, RH
(Superseded to 918-04432B)

Note: Production Date A267 & After -Replaces 618-04432

$1679.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 634-04293

Wheel Assembly, 18 x 8.5 x 8

Variations

Cub Cadet 634-04293-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04293-0916

WHEEL ASM COMPLETE - Kenda Gray (0916)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04293-0931

WHEEL ASM COMPLETE - Carlisle Beige (0931)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04293-0961

Wheel Assembly, Gray - Carlisle Gray (0961)

$149.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04293-0936

WHEEL ASM COMPLETE - Kenda Beige (0936)

$123.99

$

Usually ships in 3-6 days

0

Cub Cadet 634-04293-0966

Wheel Assembly - Kenda Gray (0966)

$149.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 734-04246

Tire, 18 x 8.5 x 8

Variations

Cub Cadet 734-04246-0901

Tire, 18 X 8.5-8 Square Tread - Carlisle (0901)

$79.99

$

In Stock, only 2 left!

0

Cub Cadet 734-04246-0906

Tire, 18 X 8.5-8 Square Tread - Kenda (0906)

$79.99

$

In Stock, only 2 left!

0

$123.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 734-0255

Valve Assembly
(Superseded to 934-0255)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 603-04173

Rim Assembly

Variations

Cub Cadet 603-04173-0499

Rim Assembly, Rear - CUB BEIGE (0499)

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04173-0662

Rim Assembly, Rear - OYSTER GRAY (0662)

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04173-0674

Rim Assembly, Rear - YARDMAN YELLOW (0674)

$76.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-04173-4042

RIM ASM-REAR - CRAFTSMAN GRAY (4042)

$82.99

$

Usually ships in 3-6 days

0

$66.99

$

In Stock, only 2 left!

0

5

Cub Cadet 710-0176

Screw, Hex Cap, 5/16-18 x 2.75 GR5

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 710-0395

Screw, Hex Cap, 5/16-18 x 2.25 GR5

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet 710-3119

Screw, Hex Cap Lock, 3/8-16 x .75 GR5

$6.49

$

In Stock, Qty 7

0

8

Cub Cadet 712-04063

Nut, Hx Flnge Insert Lck, 5/16-18 GrF

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0459

Nut, Hex Flange Lock, 7/16-20 GrB

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3050

Nut, Lug, 7/16-14

$9.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-0507

Pin, Cotter, 3/32 x .75

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 .134

$5.99

$

In Stock, Qty 20+

0

13

Cub Cadet 738-04192

Rod, .405 x 14.0
(Superseded to 738-04192B)

$19.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 747-04217C

Rod, Bypass
(Superseded to 747-04217C-0637)

Variations

Cub Cadet 747-04217C-0637

Bypass Rod - POWDER BLACK (0637)

$20.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 750-04561

Tube, .45 x .69 x 10.2
(Superseded to 750-04561A)

$25.99

$

In Stock, only 2 left!

0

16

Cub Cadet 754-04043

V-Belt, Type A Sec x 57.7
(Superseded to 954-04043B)

$42.99

$

In Stock, Qty 20+

0

17

Cub Cadet 726-04059

Clamp, Hose

Note: Used ONLY with 618-04431 & 618-04432 Trans.

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 751-10474

Hose, Breather

Note: Used ONLY with 618-04431 & 618-04432 Trans.

$36.99

$

Usually ships in 3-6 days

0
