RZT-42 (17AE2ACG756) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2007) Frame and Drive Idler Assembly Parts Diagram

42" RZT Zero-Turn Mower, Kohler

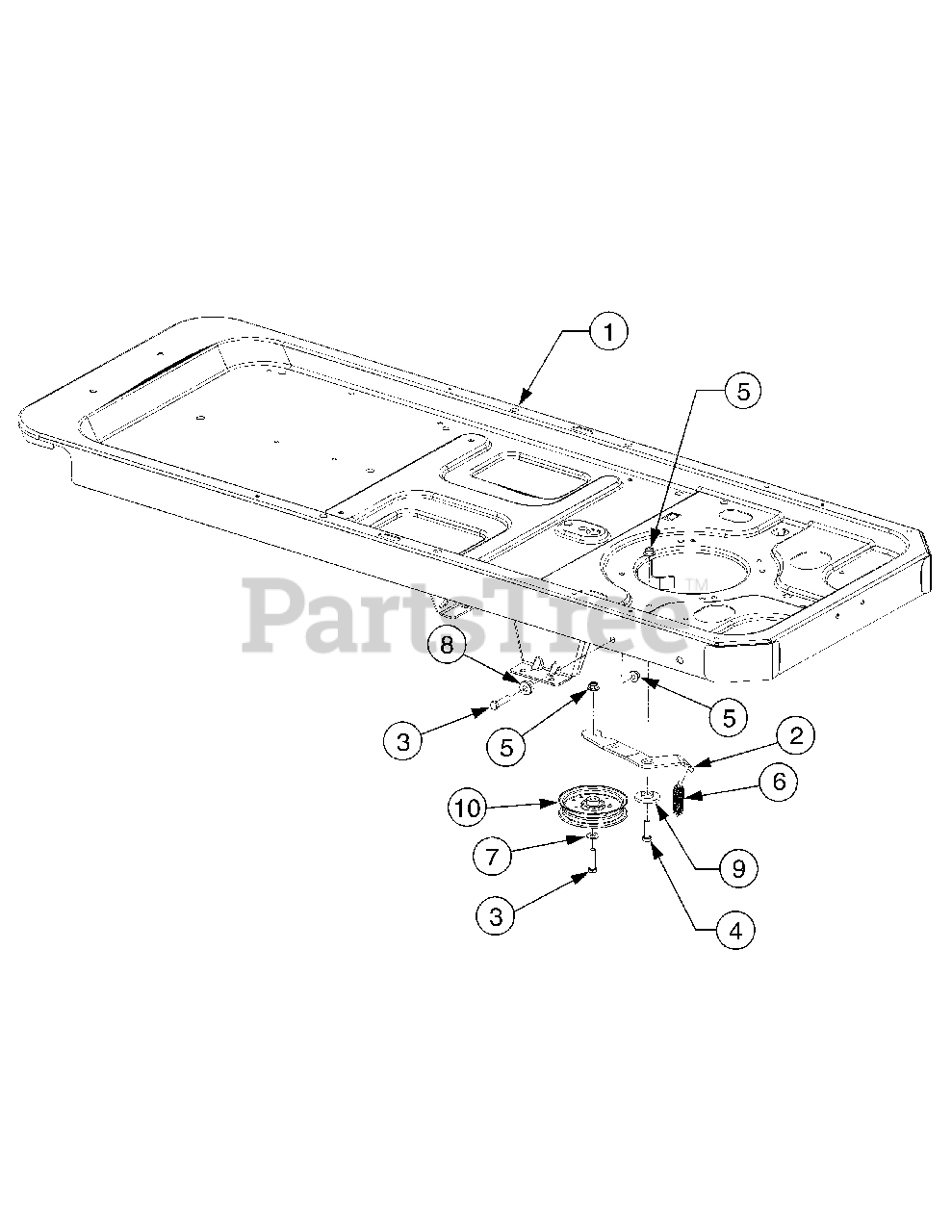

Frame and Drive Idler Assembly Parts Diagram

  • Title

1

Cub Cadet 603-04303C

Frame Assembly
(Superseded to 603-04680A)

Variations

Cub Cadet 603-04303C-0606

USE 603-04680A-0606 FRAME ASM - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 603-04303C-0638

USE 603-04680A-0638 FRAME ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 603-04303C-0650

USE 603-04303E-0650 FRAME-ASS - RED METALLIC (0650)

$

$

Not available

Cub Cadet 603-04303C-0674

USE 603-04303C FRAME-RZT - YARDMAN YELLOW (0674)

$

$

Not available

Cub Cadet 603-04303C-0716

USE 603-04680A-4021 FRAME ASM - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 603-04303C-4015

USE 603-04680A-4015 FRAME ASM - FIRE RED (4015)

$

$

Not available

Cub Cadet 603-04303C-4021

USE 603-04680A-4021 FRAME ASM - CUB YELLOW 2 (4021)

$

$

Not available

$889.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 777D10717

Graphic, Cub Cadet

Note: not shown

$

$

Not available

1

Cub Cadet 777I22489

Graphic, Release Lever

Note: not shown

$

$

Not available

2

Cub Cadet 703-05829

Idler Arm, Drive

Variations

Cub Cadet 703-05829-0637

Idler Arm - POWDER BLACK (0637)

$45.99

$

In Stock, Qty 5

0

$45.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-0520

Screw, Hex Cap, 3/8-16 x 1.5 GR5

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3005

Screw, Hex Cap, 3/8-16 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04065

Nut, Hx Insert Flnge Lck, 3/-16 GrF

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 732-0626

Spring, Extension, .75 x 5.06

$13.99

$

In Stock, Qty 5

0

7

Cub Cadet 736-0300

Washer, Flat, .408 x .875 x .059

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 738-04058

Spacer, Shoulder, .39 x 1.0 x .7

$4.99

$

In Stock, only 2 left!

0

9

Cub Cadet 738-04162A

Spacer, Shoulder, .884 x .19
(Superseded to 738-04162C)

$14.99

$

In Stock, Qty 20+

0

10

Cub Cadet 756-04129

Pulley, Idler, 4.25 Dia.
(Superseded to 753-08171)

$37.99

$

In Stock, Qty 20+

0
