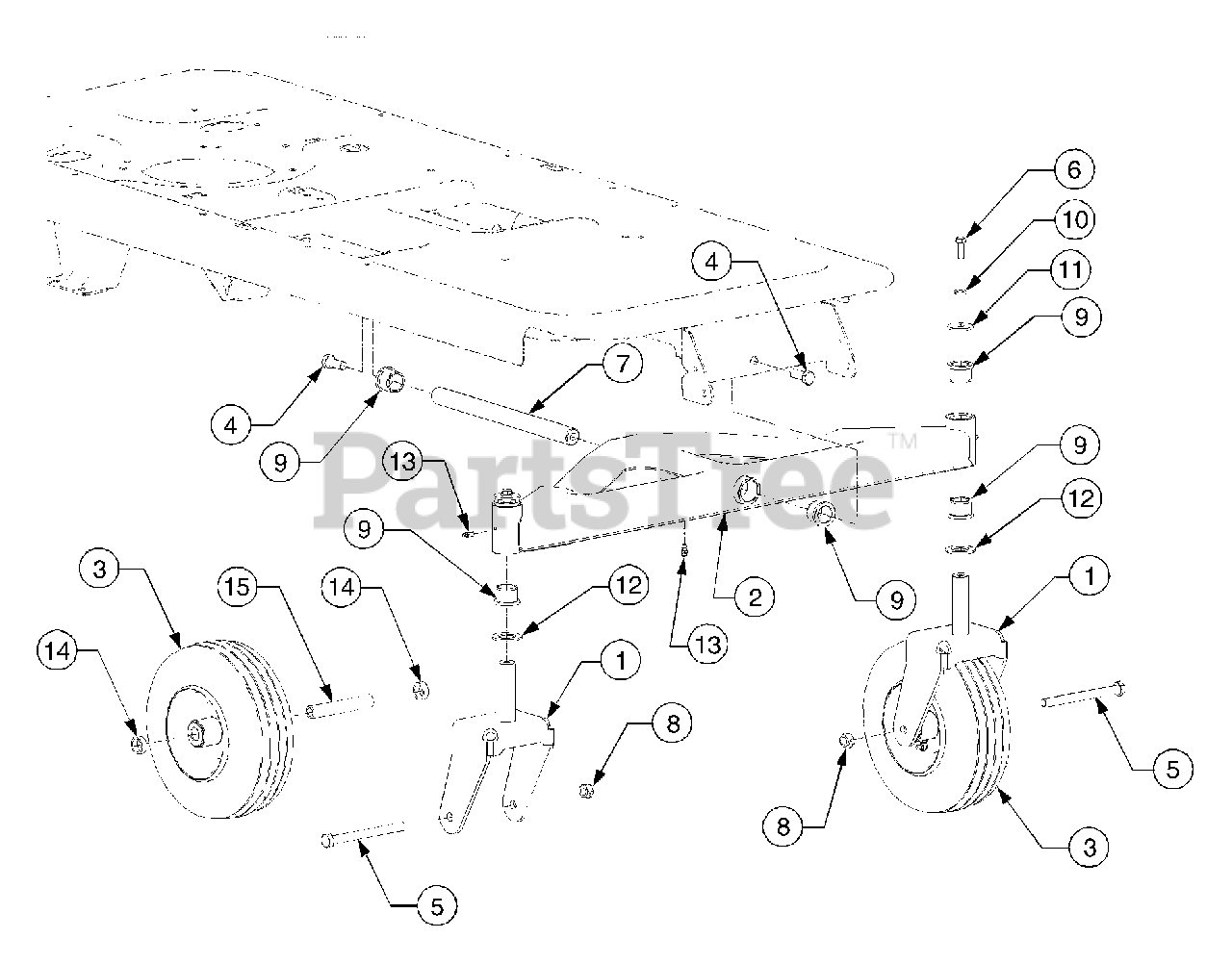

RZT-42 (17BA5A4G709) - Cub Cadet 42" RZT Zero-Turn Mower, Briggs & Stratton Intek Front Axle Parts Diagram

42" RZT Zero-Turn Mower, Briggs & Stratton Intek

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-0363A

Bracket, Castor Wheel

Variations

603-0363A-0716

Cub Cadet 603-0363A-0716

Caster Wheel Yoke Kit - CUB YELLOW-99 (0716)

$121.99

$

In Stock, only 2 left!

0

603-0363A-0650

Cub Cadet 603-0363A-0650

Caster Wheel Yoke Kit - RED METALLIC (0650)

$

$

Not available

$121.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-04148

Axle, Front Pivot
(Superseded to 603-04148C)

Variations

603-04148-0716

Cub Cadet 603-04148-0716

USE 603-04148C-0716 AXLE-FRON - CUB YELLOW-99 (0716)

$425.99

$

Usually ships in 3-6 days

0

603-04148-0650

Cub Cadet 603-04148-0650

USE 603-04148C-0650 AXLE-FRON - RED METALLIC (0650)

$

$

Not available

$425.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-3163

Wheel Assembly, 11.0 x 4.0 x 5.0

$240.99

$

In Stock, only 4 left!

0

3

Cub Cadet 02002093

Tire, Front

Note: Not Shown

$71.99

$

In Stock, Qty 7

0

3

Cub Cadet 02002095

Bushing, Front
(Superseded to 741-3069)

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 741-3069

Bearing, Flange

Note: Not Shown

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 741-3070

Bearing, Roller
(Superseded to 941-3070)

Note: Not Shown

$57.99

$

In Stock, only 3 left!

0

4

Cub Cadet 710-04186

Screw, Hex Lock, 1/2-13 x 1.25 GR5

$7.49

$

In Stock, Qty 18

0

5

Cub Cadet 710-0506

Screw, Hex Cap, 1/2-20 x 5.5 GR5

$11.99

$

In Stock, Qty 12

0

6

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 711-04228

Shaft, Axle
(Superseded to 911-04228)

$81.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-0239

Nut, Hex Lock, 1/2-20 GRA
(Superseded to 912-0239)

$

$

Not available

9

Cub Cadet 731-0374

Bearing, Flange, 1.0 x 1.254
(Superseded to 931-0374)

$7.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0169

Washer, Lock, 3/8
(Superseded to 936-0169)

$

$

Not available

11

Cub Cadet 736-0227

Washer, Flat, .39 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

12

Cub Cadet 736-0250

Washer, Flat, 1.0 x 1.75 x .107

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 737-3000

Fitting, Lube, 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 750-0456

Spacer, .79 x .347
(Superseded to 950-0456)

$

$

Not available

15

Cub Cadet 750-3197A

Spacer, Wheel

$22.99

$

In Stock, Qty 5

0
