RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) HYDRAULIC PUMP- MOTOR Parts Diagram

48" Zero-Turn Riding Mower

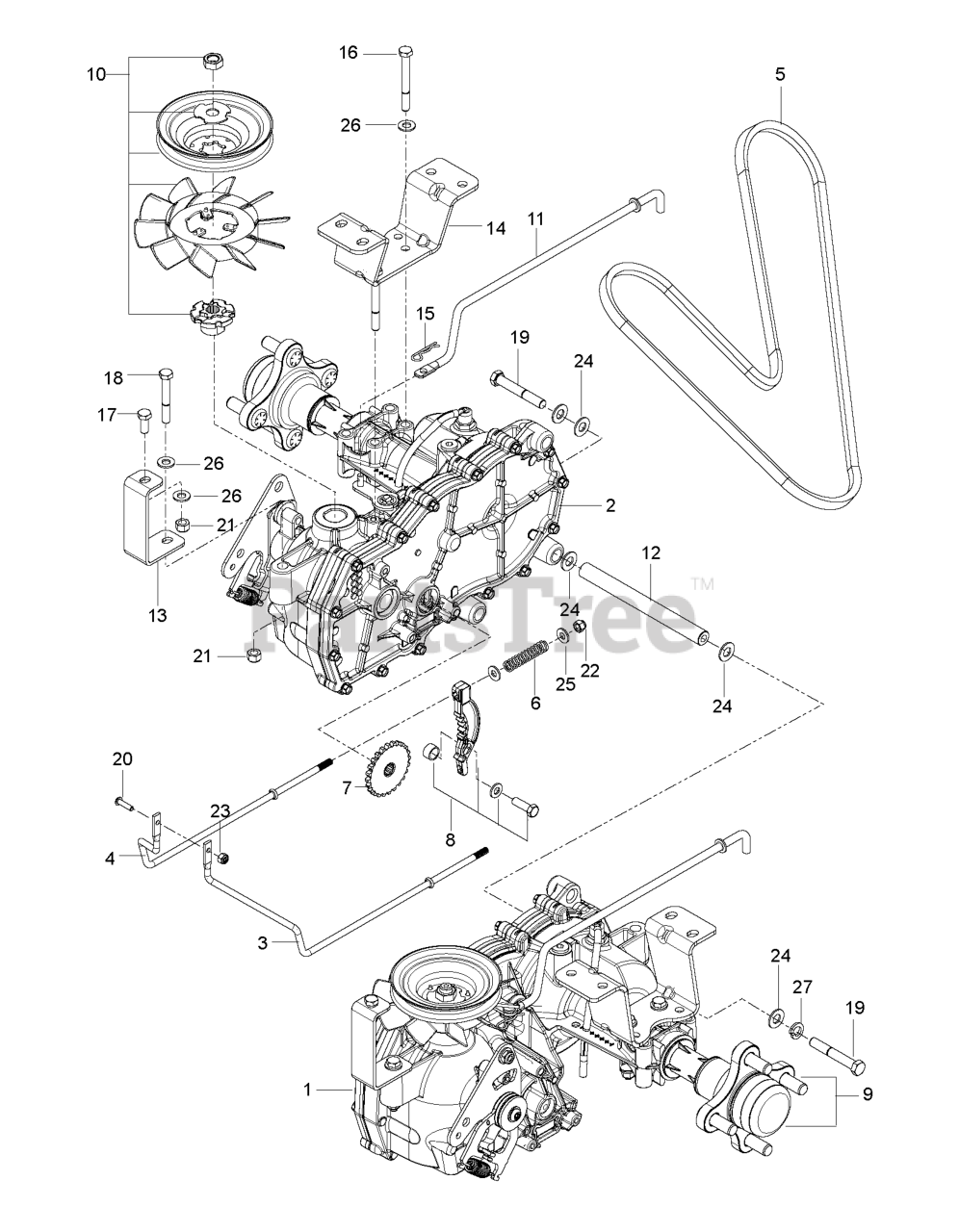

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

RedMax 510375601

HG_EZT, LT

$1091.99

$

In Stock, only 1 left!

0

2

RedMax 510375602

HG_EZT, RT

$1091.99

$

In Stock, only 1 left!

0

3

RedMax 574030501

LINKAGE.BRAKE.LT
(Superseded to 596930401)

$7.49

$

In Stock, only 3 left!

0

4

RedMax 574030502

LINKAGE, BRAKE RT
(Superseded to 596930701)

$7.49

$

In Stock, Qty 10

0

5

RedMax 539110411

BELT, HYDRO PUMP

$28.99

$

In Stock, Qty 20+

0

6

RedMax 539110342

SPRING
(Superseded to 596299801)

$3.99

$

In Stock, Qty 12

0

7

RedMax 539120080

HG_DISC COG BRAKE 51635

$34.99

$

In Stock, only 2 left!

0

8

RedMax 539120079

HG_KIT BRAKE ARM (EZT)

$37.99

$

In Stock, Qty 17

0

9

RedMax 575507001

HG_KIT, HYDRO-GEAR HUB

$218.99

$

Usually ships in 3-10 days

0

10

RedMax 501403602

KIT FAN/PULLEY 72137

$133.99

$

Usually ships in 3-10 days

0

11

RedMax 522941101

LINKAGE, BYPASS, EZT

$14.99

$

Usually ships in 3-10 days

0

12

RedMax 510184104

SPACER TUBE EZT
(Superseded to 593852803)

$9.49

$

In Stock, Qty 6

0

13

RedMax 580806502

SUPPORT.FRONT.TRANS.PNTX431

$4.99

$

In Stock, Qty 20+

0

14

RedMax 580806602

BRACKET.EZT.MOUNT.REAR.PNTX431

$6.49

$

In Stock, only 2 left!

0

15

RedMax 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 874780544

BOLT HEX
(Superseded to 596218601)

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

18

RedMax 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

19

RedMax 539990637

HCS 3/8C X 2 1/2
(Superseded to 596434201)

$4.99

$

In Stock, only 4 left!

0

20

RedMax 874811012

SCREW.TRSHD.SL.#10-24UNC X

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

22

RedMax 539976978

RP_NUT 1/4-20 NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

23

RedMax 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

24

RedMax 819131316

WASHER

$4.99

$

In Stock, Qty 9

0

25

RedMax 819091016

WASHER
(Superseded to 596582301)

$3.99

$

In Stock, Qty 11

0

26

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

27

RedMax 539990118

SLW 3/8 STD
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0
