RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Riding Mower

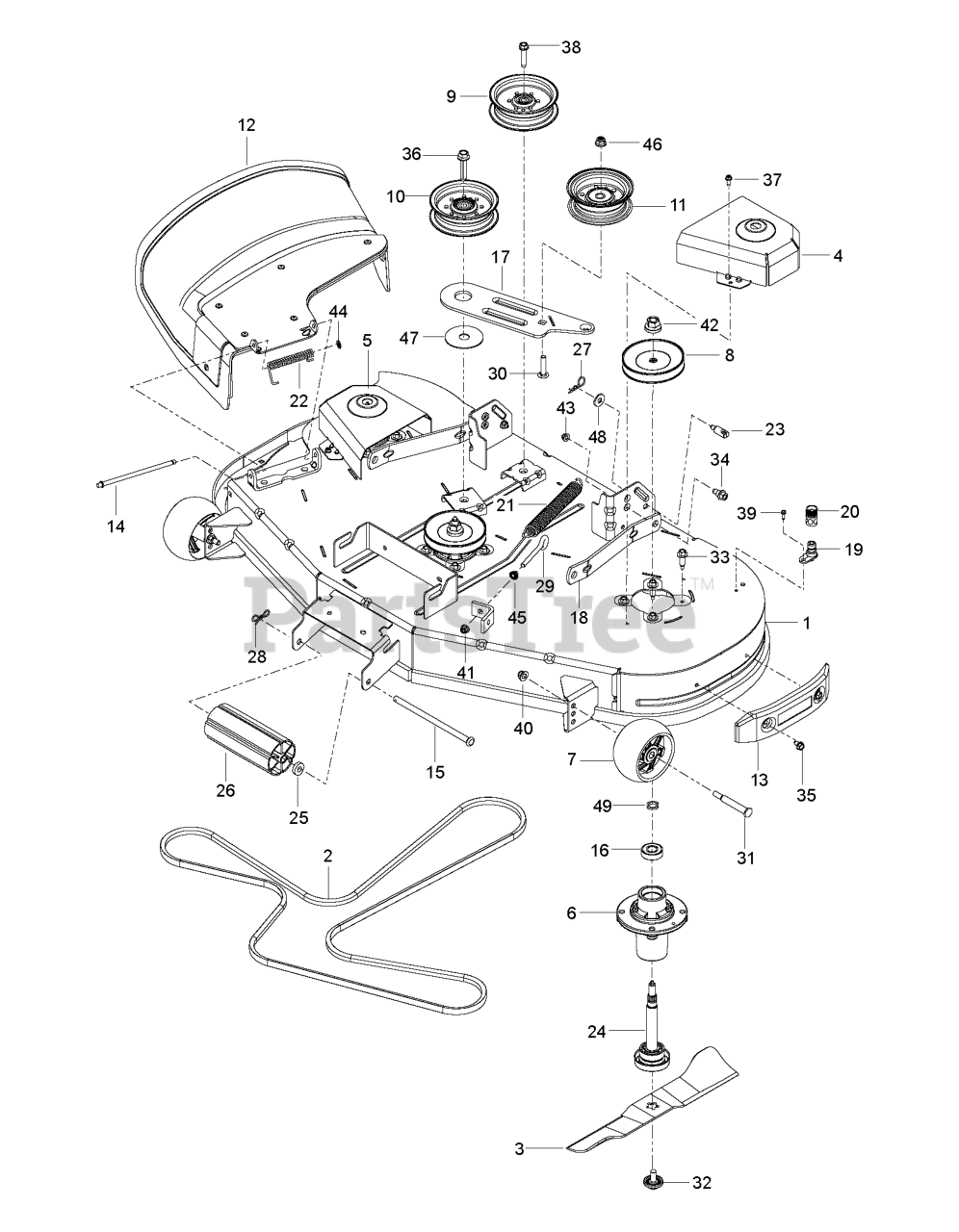

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

RedMax 583810101

DECK SVC.48.CC.RZ 668

$739.99

$

Usually ships in 3-10 days

0

2

RedMax 582558001

BELT.DECK

$97.99

$

In Stock, Qty 14

0

3

RedMax 588811002

BLADE.BAGGER.RES.CLRCT.48".BLK

$30.99

$

In Stock, Qty 20+

0

4

RedMax 588812805

COVER 48 CLEARCUT ZTR LH MANDR

$9.99

$

In Stock, only 1 left!

0

5

RedMax 588812405

COVER 48 CLEARCUT RH MANDREL B

$8.99

$

In Stock, only 1 left!

0

6

RedMax 539131898

MANDREL ASM, CAST IRON

Note: . 16 24

$80.99

$

In Stock, Qty 20+

0

7

RedMax 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$4.99

$

In Stock, Qty 20+

0

8

RedMax 532173435

MANDREL.PULLEY.38.BRIGHT.ZINC

$10.99

$

In Stock, Qty 20+

0

9

RedMax 532196106

PULLEY.IDLER.2006

$24.99

$

In Stock, Qty 20+

0

10

RedMax 532196104

PULLEY.IDLER.MWR.STATI.LH

$34.99

$

In Stock, Qty 20+

0

11

RedMax 532193197

PULLEY.IDLER.48"PRIMARY
(Superseded to 532177968)

$24.99

$

In Stock, Qty 20+

0

12

RedMax 588980701

DEFLECTOR.ASM.48".CLRCT.RES.OR
(Superseded to 593649701)

$94.99

$

In Stock, only 2 left!

0

13

RedMax 582541101

BUMPER.ASM.SIDE.TRIM.CLRCUT.48

$11.99

$

In Stock, Qty 8

0

14

RedMax 532131491

ROD.HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

15

RedMax 532179127

ROD.ROLLER.NOSE.NARROW.48"
(Superseded to 594092501)

$4.99

$

In Stock, Qty 20+

0

16

RedMax 532110485

BEARING

$10.99

$

In Stock, Qty 20+

0

17

RedMax 588812202

ARM.PNT.CLUTCHING.EDIP

$7.49

$

Usually ships in 3-10 days

0

18

RedMax 587140502

ARM.RFIXED.MOWER.SUSPNSIONX431

$6.99

$

In Stock, only 4 left!

0

19

RedMax 532415598

PORT.WASHOUT

$8.99

$

In Stock, Qty 20+

0

20

RedMax 532416405

COUPLING.QUICK CONNECT

$8.99

$

In Stock, Qty 20+

0

21

RedMax 582504001

SPRING.EXTENSION

$7.49

$

In Stock, Qty 14

0

22

RedMax 587354701

SPRING.42.FCS.DEFLECTOR

$4.99

$

In Stock, Qty 10

0

23

RedMax 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

24

RedMax 532187291

SHAFT ASM MANDREL
(Superseded to 597023501)

$25.99

$

In Stock, Qty 20+

0

25

RedMax 582360501

BUSHING.NOSE.ROLLER

$4.99

$

In Stock, Qty 13

0

26

RedMax 532176066

NOSE ROLLER 48"

$9.99

$

In Stock, Qty 20+

0

27

RedMax 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 532194208

PIN.COTTER.5/16.BOW TI

$3.99

$

In Stock, Qty 20+

0

29

RedMax 539115574

EYE BOLT 5/16 X 3.50
(Superseded to 596240801)

$4.99

$

In Stock, Qty 11

0

30

RedMax 872110614

BOLT
(Superseded to 596136201)

$3.99

$

In Stock, Qty 8

0

31

RedMax 532193406

BOLT.SHOULDER.3/8-16X3-5/8.
(Superseded to 596434404)

$3.49

$

In Stock, Qty 20+

0

32

RedMax 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

33

RedMax 584953901

BOLT.HEX.WASHR.HED.313-18X1.19

$3.49

$

In Stock, Qty 20+

0

34

RedMax 532196539

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

35

RedMax 817000510

BOLT.5/16HEX.WHS.HD

$7.49

$

In Stock, Qty 20+

0

36

RedMax 588438301

SCREW.7/16-14 X 2.125.WASHER

$6.49

$

In Stock, Qty 10

0

37

RedMax 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 20+

0

38

RedMax 817490628

SCREW LT
(Superseded to 596564003)

$3.49

$

Usually ships in 3-10 days

0

39

RedMax 817490408

SCREW
(Superseded to 874780408)

$1.49

$

Usually ships in 3-10 days

0

40

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.99

$

In Stock, Qty 20+

0

41

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 20+

0

42

RedMax 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

43

RedMax 873900500

NUT LOCK HEX FLANGE 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, Qty 20+

0

44

RedMax 532110452

NUT PUSH M

$3.99

$

In Stock, Qty 20+

0

45

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

46

RedMax 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 20+

0

47

RedMax 532178515

WASHER

$6.49

$

In Stock, Qty 20+

0

48

RedMax 819212113

WASHER
(Superseded to 596320001)

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 532187690

WASHER.SPACER.MANDREL

$3.49

$

In Stock, Qty 20+

0

RedMax 539118762

SPRING
(Superseded to 596482001)

Note: NOT SHOWN

$7.49

$

In Stock, Qty 11

0
