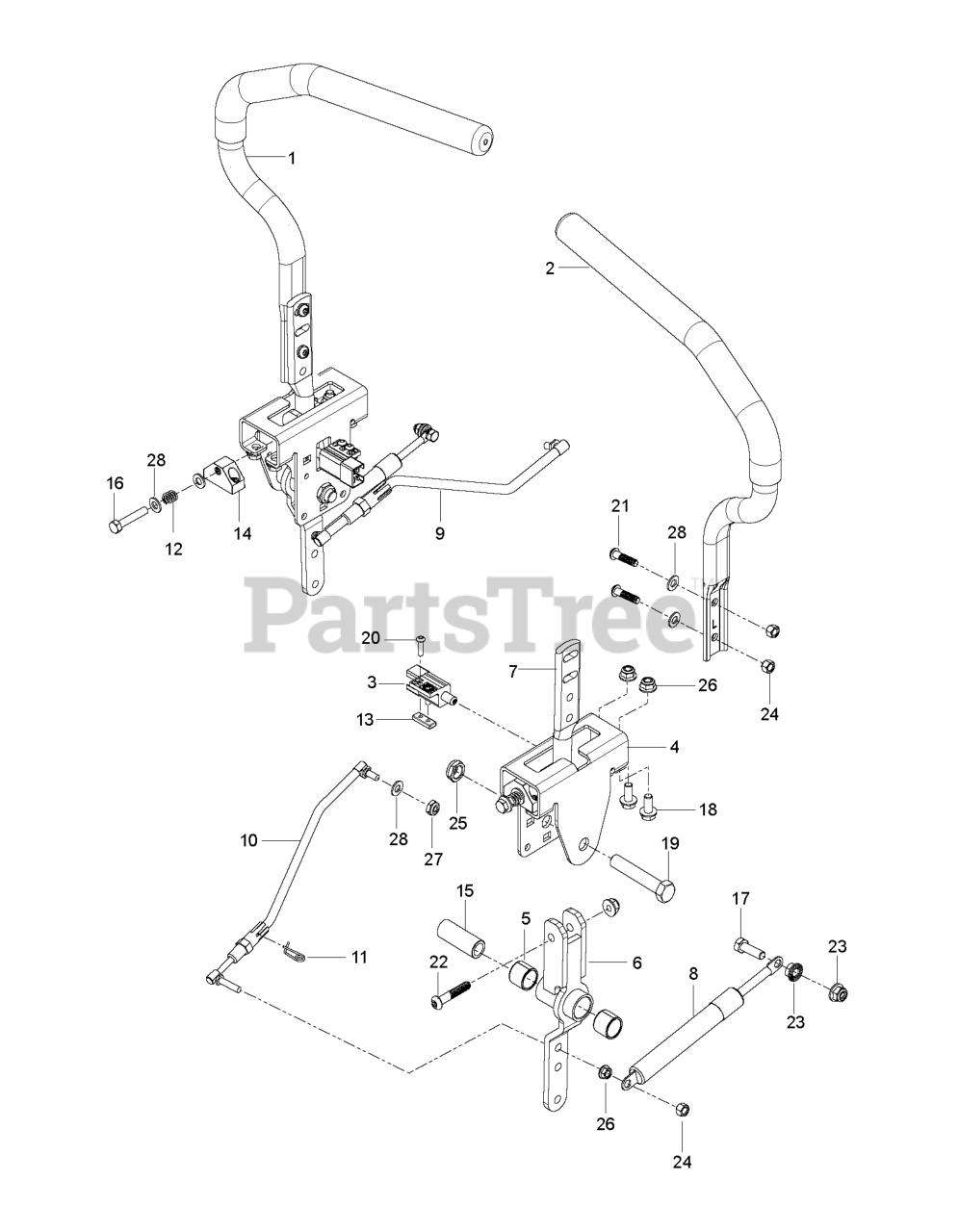

RZT 48 (967672001-00) - RedMax 48" Zero-Turn Riding Mower (2017-09) STEERING Parts Diagram

48" Zero-Turn Riding Mower

STEERING Parts Diagram

  • Title

1

RedMax 590090803

TUBE.LEVER.CONTROL.ZTR.RT.428

$36.99

$

Usually ships in 3-10 days

0

2

RedMax 590090804

TUBE.LEVER.CONTROL.ZTR.LT.428

$

$

Not available

3

RedMax 532109553

SWITCH INTERLOCKT
(Superseded to 539101080)

$7.49

$

In Stock, Qty 20+

0

4

RedMax 585124705

BRACKET.CONTROLS.ZTR.X431
(Superseded to 585124702)

$

$

Not available

5

RedMax 532438282

BEARING.PT.750

$4.99

$

In Stock, only 1 left!

0

6

RedMax 587187701

CONTROL.WELDMENT.RZ

$18.99

$

Usually ships in 3-10 days

0

7

RedMax 577420001

LEVER.HANDLE MOUNT
(Superseded to 577420002)

$10.99

$

In Stock, Qty 20+

0

8

RedMax 539102720

DAMPENER

$66.99

$

In Stock, Qty 18

0

9

RedMax 588604901

ROD.ASM.RH.ADJUSTABLE

Note: . 11

$25.99

$

Usually ships in 3-10 days

0

10

RedMax 588605001

ROD.ASM.LH.ADJUSTABLE
(Superseded to 588605002)

Note: . 11

$26.99

$

In Stock, Qty 5

0

11

RedMax 532199849

RETAINER.CLIP.SPRING.S

$6.49

$

In Stock, Qty 20+

0

12

RedMax 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

13

RedMax 581223001

PLATE NUT ZTR
(Superseded to 581223002)

$3.99

$

In Stock, only 4 left!

0

14

RedMax 581437501

BLOCK TRACKING CONTROL ZTR

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 584927201

SPACER.PIVOT.CONTROL

$4.99

$

In Stock, Qty 11

0

16

RedMax 539976935

CAPSCREW 5/16 X 1/1/2 HEX HEAD
(Superseded to 596582201)

$3.99

$

In Stock, Qty 18

0

17

RedMax 539990209

HCS 5/16C X 1
(Superseded to 596580801)

$3.99

$

In Stock, Qty 13

0

18

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$3.99

$

Usually ships in 3-10 days

0

19

RedMax 874780844

HCS 1/2-13 X 2-3/4 GD 5 ZD

$3.99

$

Usually ships in 3-10 days

0

20

RedMax 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 12

0

21

RedMax 578296403

SCREW.BUTTHEAD.5/16-18X1-1.25

$

$

Not available

22

RedMax 587885301

SCREW.CAP.SOCKET.6PT.5/16-18

$4.99

$

In Stock, Qty 6

0

23

RedMax 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

25

RedMax 539108010

NUT 1/2-13 HEX JM NYL

$4.99

$

In Stock, Qty 5

0

26

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 14

0

27

RedMax 539115617

5/16-18 THIN PROF NY
(Superseded to 596433601)

$2.49

$

In Stock, only 2 left!

0

28

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0
