RZT 48 x (967671001-00) - RedMax 48" Zero-Turn Riding Mower (2019-02) WHEELS & TIRES Parts Diagram

48" Zero-Turn Riding Mower

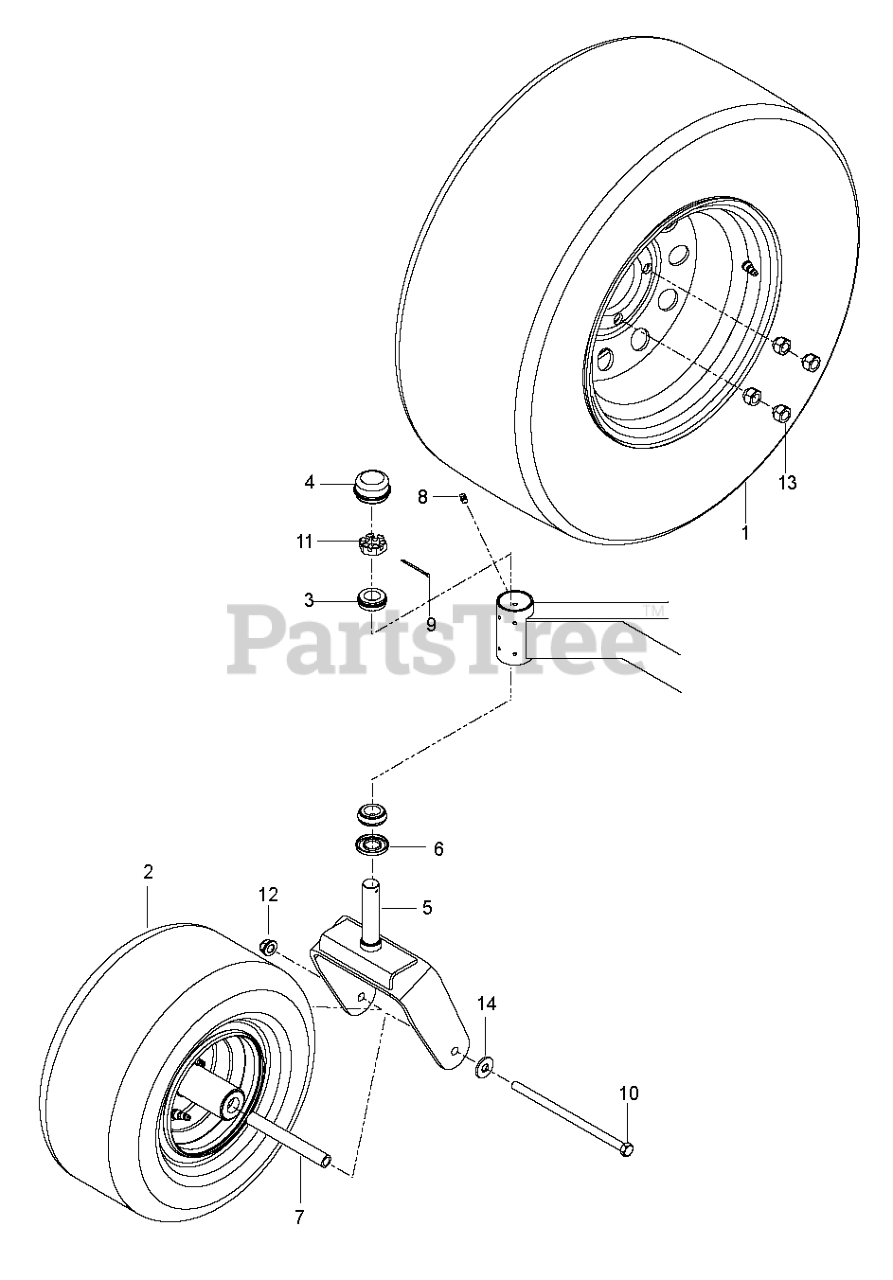

WHEELS & TIRES Parts Diagram

  • Title

1

RedMax 580747003

TIRE TIRE & WHEEL ASSEMBLY BLA

$284.99

$

Usually ships in 3-10 days

0

2

RedMax 539104501

WHEEL 13X5 ASSEMBLY GLOSS BLAC

$136.99

$

Usually ships in 3-10 days

0

3

RedMax 539102543

TAPERED ROLLER BRG

$22.99

$

Usually ships in 3-10 days

0

4

RedMax 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

In Stock, Qty 7

0

5

RedMax 591046101

FORK CASTER YOKE WELDMENT SNAP

$250.99

$

Usually ships in 3-10 days

0

6

RedMax 539102851

SEAL

$7.99

$

In Stock, only 2 left!

0

7

RedMax 539102856

SPACER, CASTER

$13.99

$

In Stock, only 2 left!

0

8

RedMax 539101474

ZERK
(Superseded to 596623501)

$3.49

$

In Stock, Qty 10

0

9

RedMax 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

10

RedMax 539105517

HEX SCREW 1/2-13 X 9.5 GR5
(Superseded to 594946501)

$6.99

$

In Stock, Qty 5

0

11

RedMax 539102852

NUT 1"C HEX SLOTTED
(Superseded to 596241501)

$13.99

$

In Stock, Qty 6

0

12

RedMax 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 12

0

13

RedMax 587653902

NUT.1/2-20.UNF-2B.GR.8.YL
(Superseded to 587653903)

$4.99

$

In Stock, Qty 19

0

14

RedMax 819182212

WASHER.9/16 X 1 3/8 X 12 GA.
(Superseded to 595316401)

$3.49

$

In Stock, only 3 left!

0
