RZT-50 (17AA5D7P710) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2006) Cylinder and Crankcase Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

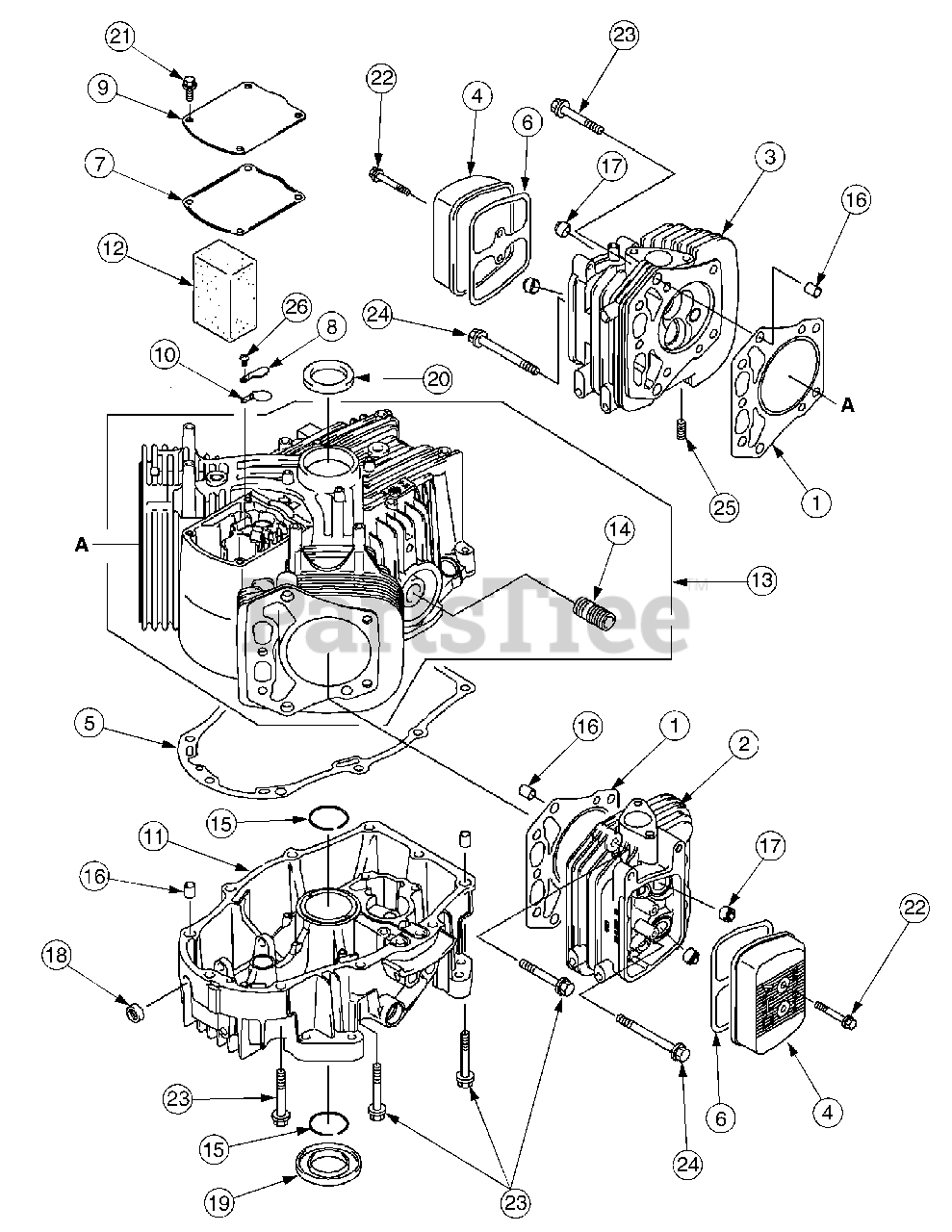

Cylinder and Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7006

Gasket, Head

$10.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-11008-7012

Head, Complete- Cylinder #2
(Superseded to KM-11008-7023)

$278.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-11008-7013

Head, Complete- Cylinder #1
(Superseded to KM-11008-7024)

$277.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7002

Case, Rocker
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11060-7012

Gasket, Crankcase Cover
(Superseded to KM-11061-7098)

$45.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7013

Gasket, Rocker Case

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-7014

Gasket, Breather

$6.49

$

In Stock, only 1 left!

0

8

Cub Cadet KM-13271-7006

Plate

$1.49

$

In Stock, Qty 15

0

9

Cub Cadet KM-14091-7004

Cover

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16126-7001

Valve

$2.49

$

In Stock, Qty 16

0

11

Cub Cadet KM-49015-7039

Cover, Crankcase
(Superseded to KM-49015-7064)

$199.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-49109-7003

Element, Breather
(Superseded to KM-99999-7072)

$14.99

$

In Stock, Qty 5

0

13

Cub Cadet KM-49120-7037

Crankcase - Complete
(Superseded to KM-49120-7092)

$459.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 9

0

15

Cub Cadet KM-92033-7004

Ring, Snap

$0.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7001

Seal, Oil, RVC2, 6 x 11 x 10.2

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7005

Seal, Oil, SO 8 x 14 x 5 HS
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

19

Cub Cadet KM-92049-7011

Seal, OIl, SD 35 x 62 x 8 L HS

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92049-7014

Seal, Oil, SD 35 x 52 x 7 R HS

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-130G0612

Bolt, Flanged
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-130B0640

Bolt, Flanged
(Superseded to KM-130BA0640)

$1.49

$

In Stock, only 3 left!

0

23

Cub Cadet KM-130T0850

Bolt, Flanged
(Superseded to KM-130CA0850)

$1.99

$

In Stock, Qty 20+

0

24

Cub Cadet KM-130T0875

Bolt, Flanged
(Superseded to KM-130CA0875)

$2.49

$

In Stock, Qty 11

0

25

Cub Cadet KM-172G0818

Bolt, Stud
(Superseded to KM-172BA0818)

$1.99

$

In Stock, Qty 20+

0

26

Cub Cadet KM-214B0408

Screw, Pan
(Superseded to KM-214AA0408)

$3.99

$

In Stock, only 2 left!

0
