RZT-50 (17AI2ACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2011) Kawasaki FR691V-AS05 Carburetor Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

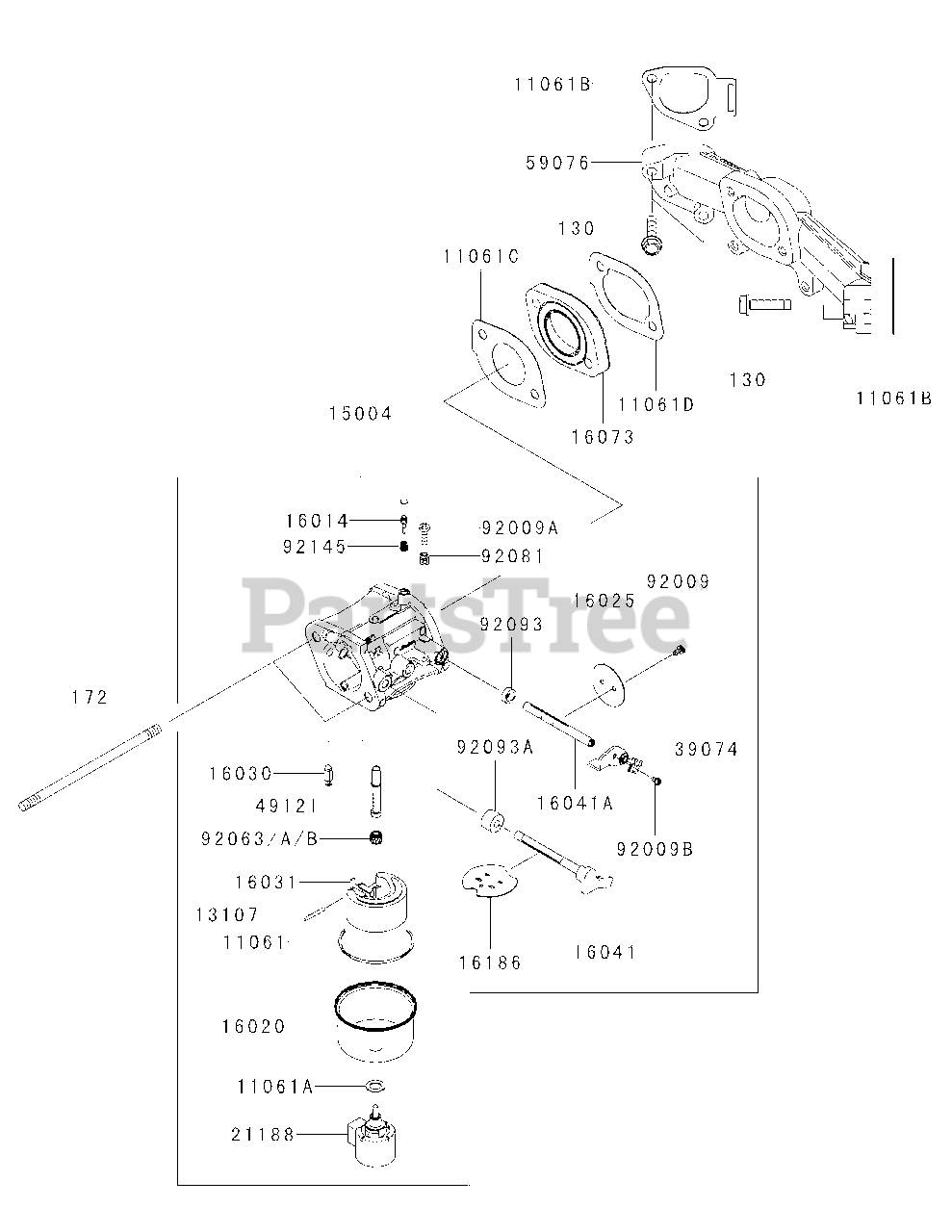

Kawasaki FR691V-AS05 Carburetor Parts Diagram

  • Title

11061

Cub Cadet KM-11061-7009

Chamber Gasket

$2.99

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7010

Screw Gasket

$3.49

$

In Stock, Qty 20+

0

11061B

Cub Cadet KM-11061-7085

Manifold Gasket
(Superseded to KM-11061-7093)

$1.99

$

In Stock, Qty 20+

0

11061C

Cub Cadet KM-11061-7087

Insulator Gasket

$1.99

$

In Stock, Qty 9

0

11061D

Cub Cadet KM-11061-7088

Insulator/Manifold Gasket

$1.99

$

In Stock, Qty 20+

0

13107

Cub Cadet KM-13107-7018

Shaft

$4.49

$

In Stock, Qty 7

0

15004

Cub Cadet KM-15004-7063

Carburetor Assembly
(Superseded to KM-15004-1063)

$424.99

$

Usually ships in 3-6 days

0

16014

Cub Cadet KM-16014-7010

Pilot Air Screw

$15.99

$

In Stock, only 1 left!

0

16020

Cub Cadet KM-16020-7003

Float Chamber

$14.99

$

In Stock, Qty 5

0

16025

Cub Cadet KM-16025-7017

Throttle Valve

$16.99

$

In Stock, only 1 left!

0

16030

Cub Cadet KM-16030-7003

Float Valve

$20.99

$

In Stock, Qty 6

0

16031

Cub Cadet KM-16031-7002

Float

$28.99

$

In Stock, Qty 9

0

16041

Cub Cadet KM-16041-7050

Choke Carburetor Shaft
(Superseded to KM-16041-0007)

$16.99

$

In Stock, Qty 8

0

16041A

Cub Cadet KM-16041-7051

Throttle Carburetor Shaft

$28.99

$

Usually ships in 2-5 days

0

16073

Cub Cadet KM-16073-7013

Insulator

$8.99

$

In Stock, Qty 7

0

16186

Cub Cadet KM-16186-7006

Choke Valve Assembly

$15.99

$

In Stock, only 4 left!

0

21188

Cub Cadet KM-21188-7002

Solenoid

$171.99

$

In Stock, only 4 left!

0

39074

Cub Cadet KM-39074-7001

Throttle Lever Assembly

$7.49

$

In Stock, only 3 left!

0

49121

Cub Cadet KM-49121-7018

Main Nozzle

$34.99

$

In Stock, only 1 left!

0

59076

Cub Cadet KM-59076-7019

Intake Manifold
(Superseded to KM-59076-0009)

$159.99

$

In Stock, only 1 left!

0

92009

Cub Cadet KM-92009-2083

Screw

$2.49

$

In Stock, Qty 14

0

92009A

Cub Cadet KM-92009-2349

Screw

$1.49

$

In Stock, Qty 5

0

92009B

Cub Cadet KM-92009-2402

Screw

$1.99

$

In Stock, Qty 5

0

92063

Cub Cadet KM-92063-7141

Main Jet, #122

$12.99

$

Usually ships in 2-5 days

0

92063A

Cub Cadet KM-92063-7142

Main Jet, #124

$13.99

$

In Stock, only 2 left!

0

92063B

Cub Cadet KM-92063-7149

Main Jet, #120

$12.99

$

Usually ships in 2-5 days

0

92081

Cub Cadet KM-92081-2234

Spring

$4.49

$

In Stock, Qty 5

0

92093

Cub Cadet KM-92093-2100

Seal

$3.49

$

In Stock, Qty 15

0

92093A

Cub Cadet KM-92093-7003

Seal

$4.49

$

In Stock, only 2 left!

0

92145

Cub Cadet KM-92145-2122

Spring

$2.49

$

In Stock, only 2 left!

0

130

Cub Cadet KM-130AA0630

Flanged Bolt, 6 X 30

$1.99

$

In Stock, Qty 6

0

172

Cub Cadet KM-172BA06115

Stud Bolt, 6 X 115

$2.99

$

In Stock, Qty 18

0
