RZT-50 (17AK2ACP897) - Columbia 50" Zero-Turn Mower (2009) Operators Platform Parts Diagram

50" Zero-Turn Mower

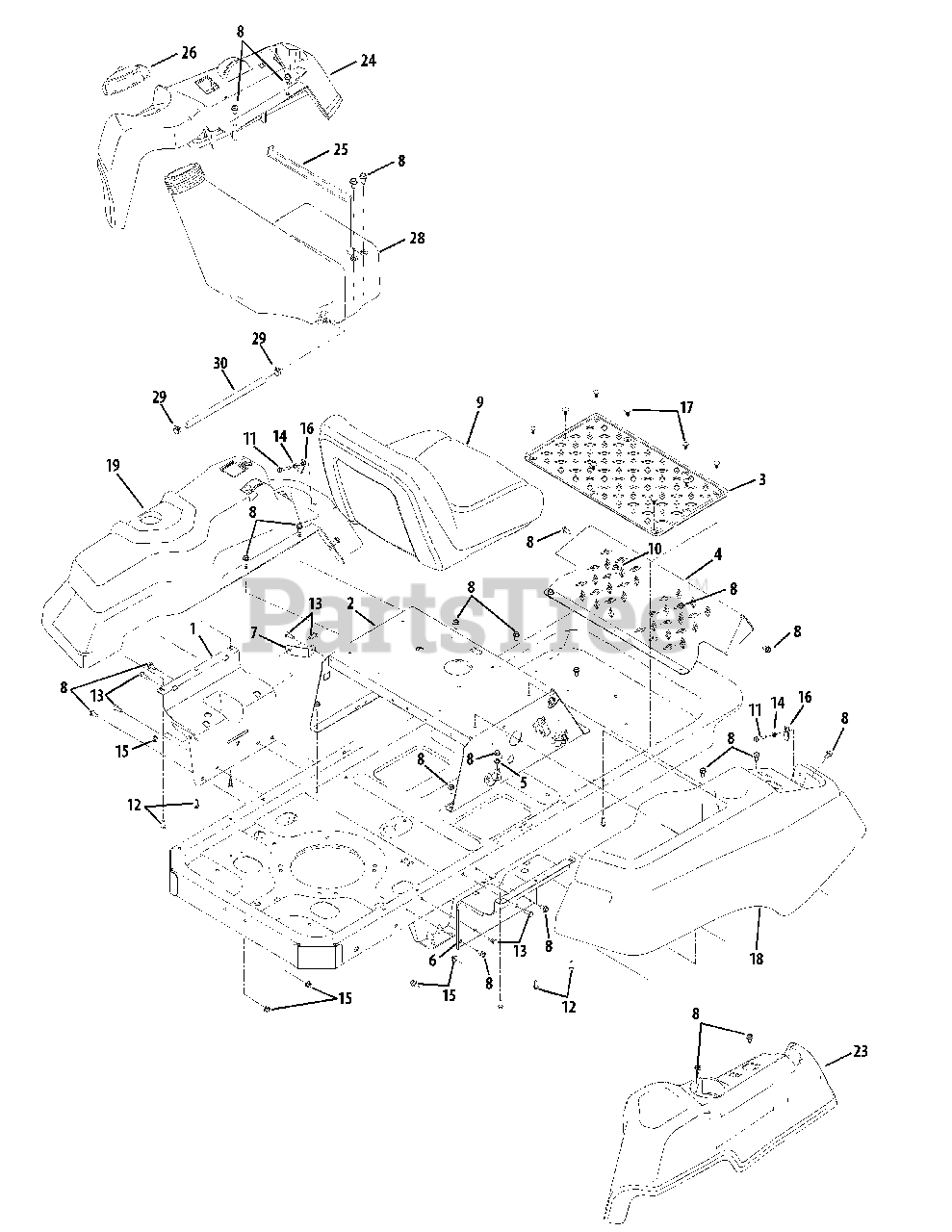

Operators Platform Parts Diagram

  • Title

1

White Outdoor 603-04564-0606

Console Mtg. Brkt. LH

$

$

Not available

2

White Outdoor 603-04663-0606

Seat Frame

$

$

Not available

3

White Outdoor 735-04082B

Foot Pat
(Superseded to 735-04082C)

$54.99

$

Usually ships in 3-6 days

0

4

White Outdoor 703-05373B-0606

Foot Rest Bracket

$

$

Not available

5

White Outdoor 736-0148

Ext. Tooth Washer, 3/8

$3.99

$

In Stock, Qty 19

0

6

White Outdoor 703-06451-0606

Console Mtg. Brkt. RH

$

$

Not available

7

White Outdoor 703-06623-0637

Fuel Tank Support Bracket

$

$

Not available

8

White Outdoor 710-04484

Hex Washer Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 757-04098

High Back Seat
(Superseded to 757-05231)

$302.99

$

Usually ships in 3-6 days

0

10

White Outdoor 710-0604A

Self-tapping Screw 5/16-18 x .625

$4.99

$

In Stock, Qty 13

0

11

White Outdoor 710-0778

Hex Wash HD Bolt 1/4-20 x 1.50" Lg.

$4.49

$

In Stock, Qty 20+

0

12

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$6.99

$

In Stock, Qty 20+

0

13

White Outdoor 710-3008

Hex Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 912-0298

Hex Jam Nut 1/4-20

$6.99

$

Usually ships in 3-6 days

0

15

White Outdoor 712-04063

Hex L-Flg.Nut 5/16-18 Gr. F, Nylon

$4.49

$

In Stock, Qty 20+

0

16

White Outdoor 712-04092

U-Type Speed Nut 1/4-20

$6.49

$

In Stock, only 2 left!

0

17

White Outdoor 726-3046

Ratchet Clip

$4.49

$

In Stock, Qty 13

0

18

N/A

Console, RH (Cub Cadet)

Note: Not used in this application

$

$

Not available

19

N/A

Console, LH (Cub Cadet)

Note: Not used in this application

$

$

Not available

23

White Outdoor 731-04663D

Console, RH

$73.99

$

Usually ships in 3-6 days

0

24

White Outdoor 731-04662E

Console, LH

$

$

Not available

25

White Outdoor 747-04228A

Tank Mtg. Wire

$

$

Not available

26

White Outdoor 951-3124D

Fuel Cap
(Superseded to 951-3124E)

$38.99

$

In Stock, Qty 20+

0

28

White Outdoor 751-10057D

Fuel Tank 3 gal.

$327.99

$

Usually ships in 3-6 days

0

29

White Outdoor 726-0205

Hose Clamp

$4.49

$

In Stock, Qty 20+

0

30

White Outdoor 751-10349-72

Hose, Fuel Low Permeation (B&S)

$64.99

$

In Stock, Qty 5

0

White Outdoor 710-04187

Hex Scr. 1/4-15 x .50
(Superseded to 710-04187A)

Note: Not Shown

$7.49

$

In Stock, Qty 20+

0
