RZT-50 (17WI2ACP056) - Cub Cadet 50" RZT Zero-Turn Mower, Kawasaki (2011) Engine Accessories (Kawasaki) Parts Diagram

50" RZT Zero-Turn Mower, Kawasaki

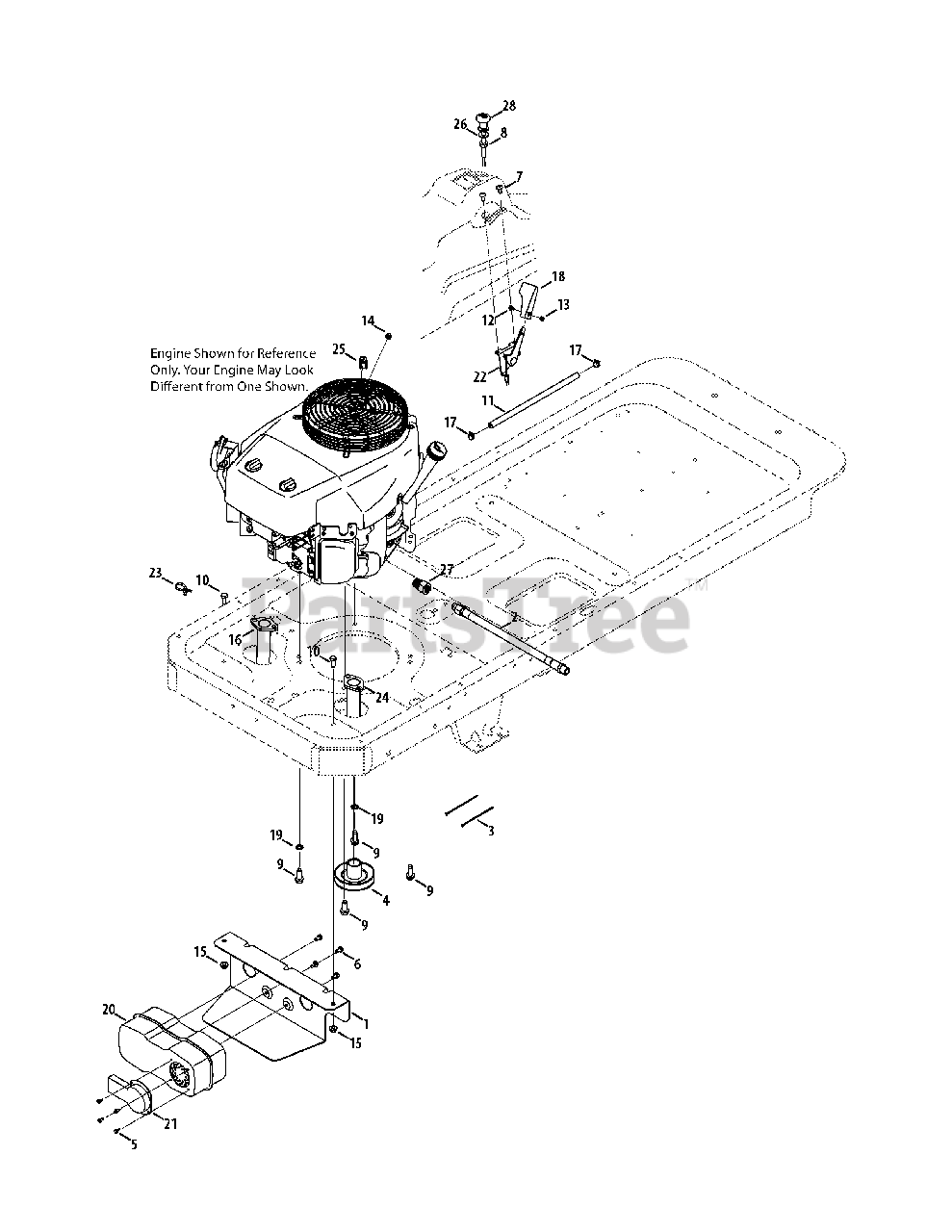

Engine Accessories (Kawasaki) Parts Diagram

  • Title

1

Cub Cadet 703-05441A

Muffler Mount Bracket

$48.99

$

In Stock, Qty 6

0

2

Cub Cadet 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$49.99

$

In Stock, Qty 6

0

3

Cub Cadet 726-0197

Cable Tie

$3.49

$

In Stock, only 1 left!

0

4

Cub Cadet 756-04376

PTO Pulley

$41.99

$

In Stock, only 4 left!

0

5

Cub Cadet 710-0227

Hex Washer Screw, #8-18 x 0.500

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x 0.500

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1017

Screw, 1/4-14 x 0.625

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet 912-3005

Flange Lock Nut, 3/8-16
(Superseded to 712-3005)

$6.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1315

TT Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3008

Hex Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 751-10349-13

Low Permeation Fuel Hose

$16.99

$

In Stock, Qty 7

0

12

Cub Cadet 710-3217

Machine Screw, #8-32 x 0.375

$6.49

$

In Stock, Qty 10

0

13

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 712-0271

Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 751-10771

Exhaust Pipe - LH

$54.99

$

In Stock, only 1 left!

0

17

Cub Cadet 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 731-04914

Throttle Control Knob

$12.99

$

In Stock, only 3 left!

0

19

Cub Cadet 736-0148

External Tooth Lock Washer, 3/8

$3.49

$

In Stock, Qty 12

0

20

Cub Cadet 751-0616B

Dual Inlet Muffler
(Superseded to 951-0616B)

$152.99

$

In Stock, Qty 20+

0

21

Cub Cadet 751-11053

Muffler Deflector
(Superseded to 751-11053B)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 946-04581

Throttle Cable

$44.99

$

In Stock, Qty 5

0

23

Cub Cadet 926-0154

Push Mount Cable Tie

$5.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-10770

Exhaust Pipe - RH

$

$

Not available

25

Cub Cadet 726-0272

Clamp

$6.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 737-04138

Fitting

$23.99

$

In Stock, Qty 5

0

28

Cub Cadet 946-04214

Choke Cable

$44.99

$

Usually ships in 3-6 days

0
