RZT-50 VT (17BK2ACP010) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton (2010 & After) Seat Adjustment Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton

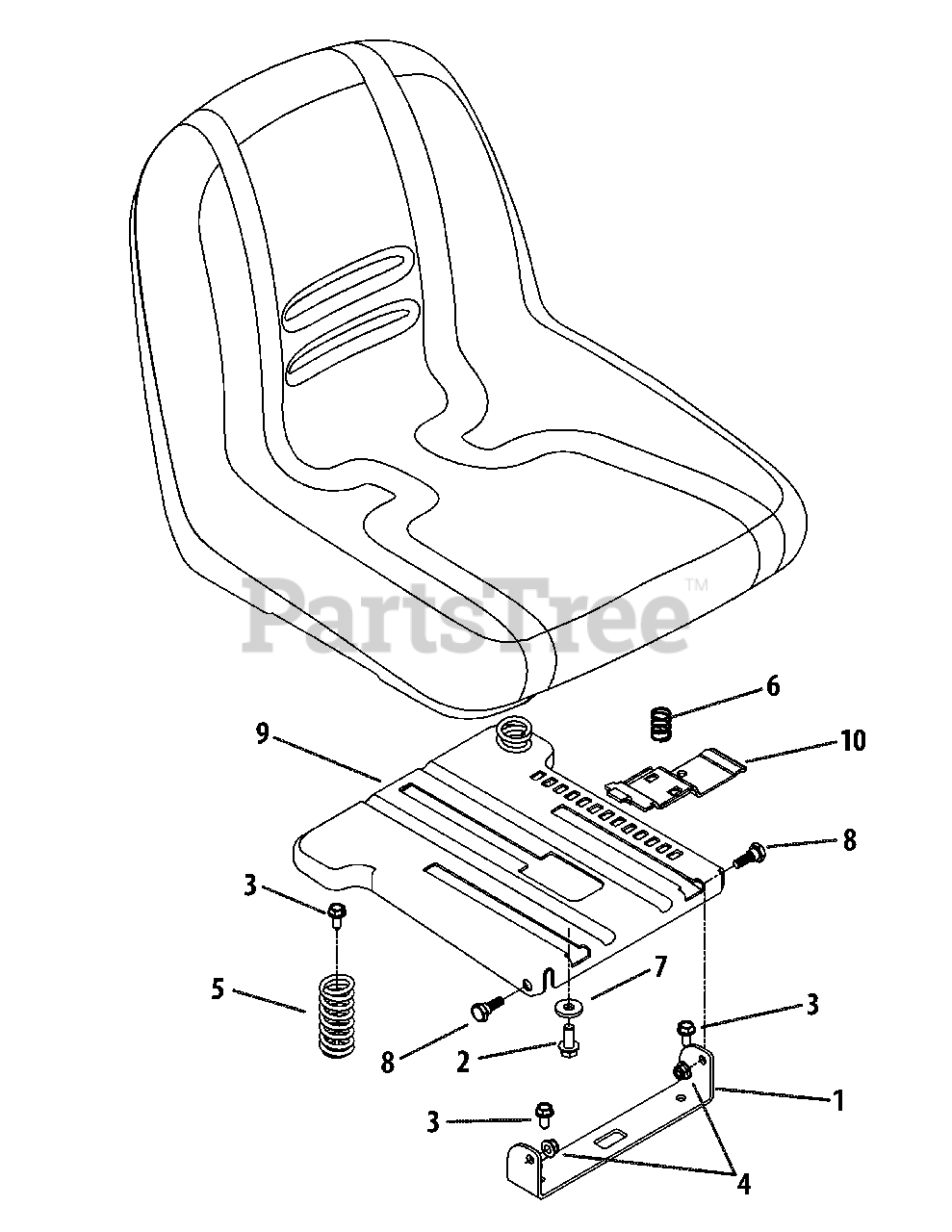

Seat Adjustment Parts Diagram

  • Title
1

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04482

Hex Flange Bolt, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 732-04035

Compression Spring

$9.99

$

In Stock, Qty 19

0

6

Cub Cadet 732-04563

Compression Spring

$5.49

$

In Stock, Qty 8

0

7

Cub Cadet 736-0258

Flat Washer, .385 x 1.0 x .135

$4.49

$

In Stock, Qty 13

0

8

Cub Cadet 938-0296

Shoulder Screw, .437 x .268 x 5/16-18
(Superseded to 738-0296)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 783-06049-4021

Seat Mount Bracket
(Superseded to 783-06049-0637)

$63.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 783-06050

Seat Adjustment Lever

$9.49

$

In Stock, only 4 left!

0
