RZT-54 (17AI2ACK056) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2009) Kawasaki FH721-W04 Cylinder & Crankcase Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

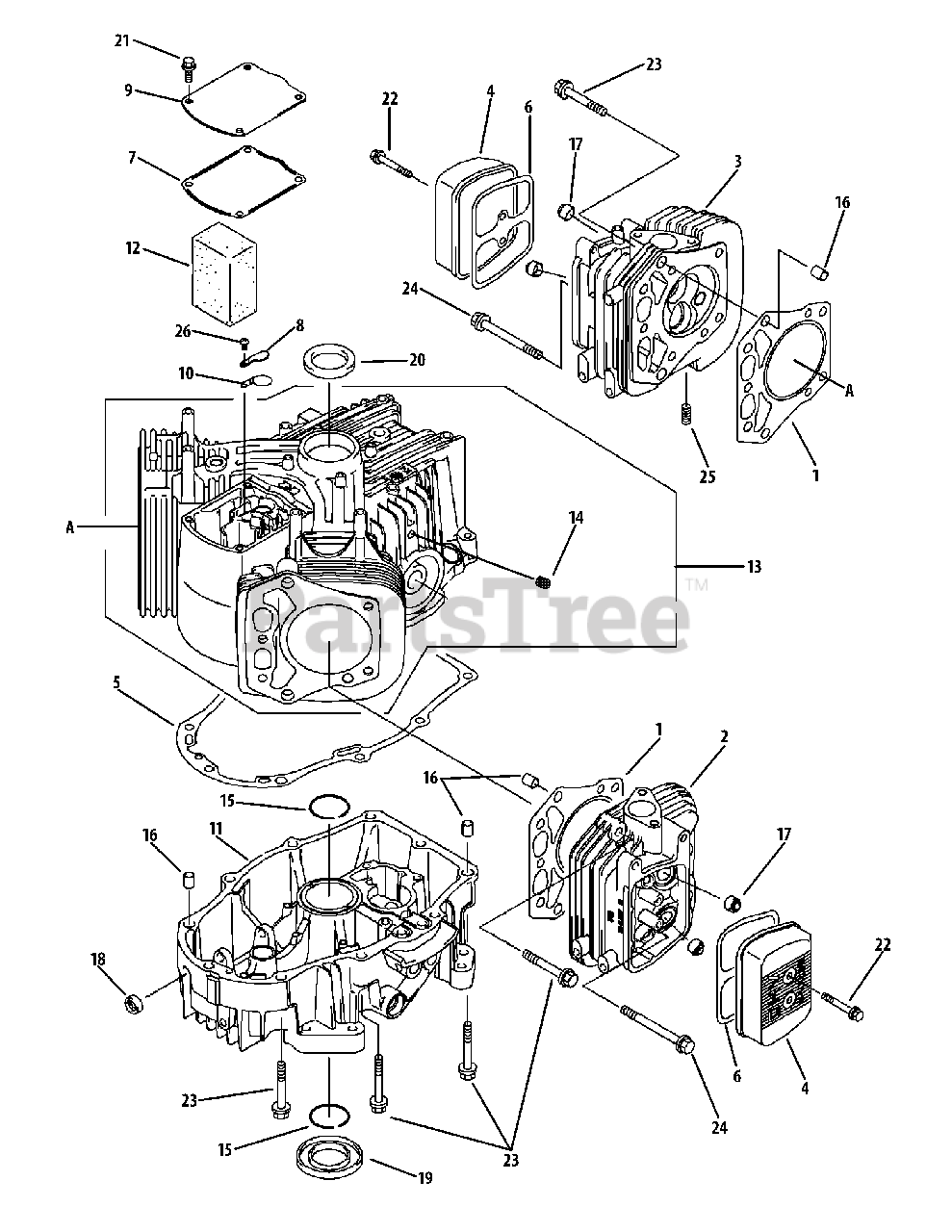

Kawasaki FH721-W04 Cylinder & Crankcase Parts Diagram

  • Title

1

Cub Cadet KM-11004-7006

Head Gasket

$10.99

$

In Stock, Qty 15

0

2

Cub Cadet KM-11008-7023

Complete Cylinder Head, #2

$278.99

$

In Stock, only 1 left!

0

3

Cub Cadet KM-11008-7024

Complete Cylinder Head, #1

$277.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-11022-7002

Rocker Case
(Superseded to KM-11022-0728)

$14.99

$

In Stock, only 2 left!

0

5

Cub Cadet KM-11060-7012

Crankcase Cover Gasket
(Superseded to KM-11061-7098)

$48.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11060-7013

Rocker Case Gasket

$5.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11060-7014

Breather Gasket

$6.49

$

Usually ships in 2-5 days

0

8

Cub Cadet KM-13271-7006

Plate

$1.49

$

In Stock, Qty 13

0

9

Cub Cadet KM-14091-7004

Cover

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16126-7001

Valve

$2.49

$

In Stock, Qty 13

0

11

Cub Cadet KM-49015-7064

Crankcase Cover

$199.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-49109-7003

Breather Element
(Superseded to KM-99999-7072)

$14.99

$

In Stock, only 3 left!

0

13

Cub Cadet KM-49120-7093

Crankcase Complete

$

$

Not available

14

Cub Cadet KM-59066-7002

Plug

$

$

Not available

15

Cub Cadet KM-92033-7004

Snap Ring

$0.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92043-7001

Pin

$0.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-7001

Oil Seal, RVC2 6 x 11 x 10.2

$8.49

$

In Stock, Qty 20+

0

18

Cub Cadet KM-92049-7005

Oil Seal, SO 8 x 14 x 5 HS
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 13

0

19

Cub Cadet KM-92049-7011

Oil Seal, SD 35 x 62 x 8 L HS

$5.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92049-7014

Oil Seal, SD 35 x 52 x 7 R HS

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-92153-7043

Bolt
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 10

0

22

Cub Cadet KM-130AA0640

Flange Bolt

$0.99

$

In Stock, only 4 left!

0

23

Cub Cadet KM-92153-7054

Bolt

$2.99

$

In Stock, Qty 9

0

24

Cub Cadet KM-172BA0818

Flange Bolt

$1.99

$

In Stock, Qty 20+

0

25

Cub Cadet KM-214AA0408

Stud Bolt

$3.99

$

In Stock, only 1 left!

0

26

Cub Cadet KM-214B0408

Pan Screw
(Superseded to KM-214AA0408)

$3.99

$

In Stock, only 1 left!

0

Cub Cadet KM-FH721V-ES25S

Complete Engine

$3634.99

$

Usually ships in 3-6 days

0
