RZT-54 (17AI2ACK056) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2009) Kawasaki FH721-W04 Flywheel & Electrical Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

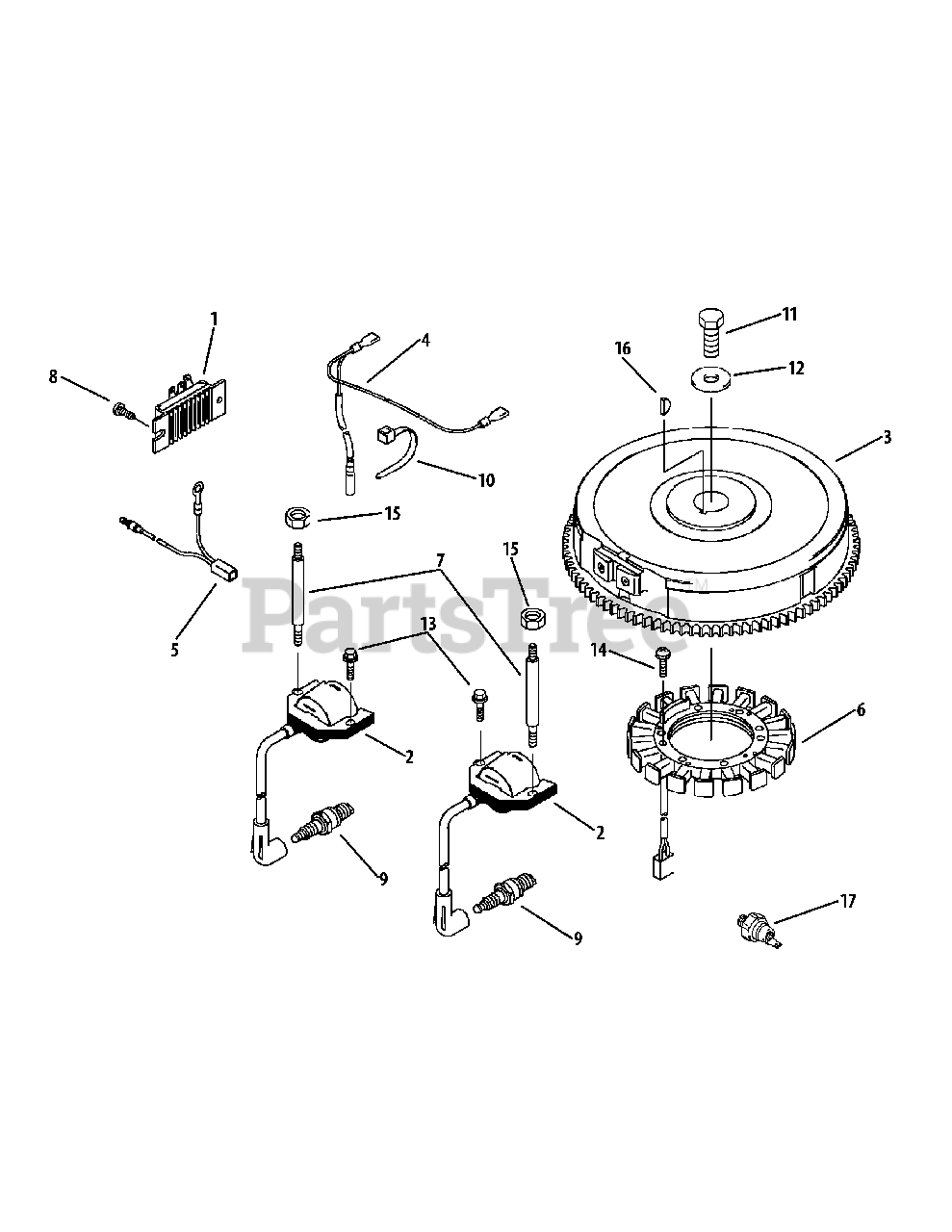

Kawasaki FH721-W04 Flywheel & Electrical Parts Diagram

  • Title

1

Cub Cadet KM-21066-7011

Voltage Regulator

$79.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-21171-7034

Ignition Coil

$83.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-21193-7019

Flywheel
(Superseded to KM-21193-0021)

$332.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-26030-7002

Harness

$11.99

$

In Stock, Qty 16

0

5

Cub Cadet KM-26031-7003

Harness

$8.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-59031-7009

Charging Coil

$133.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-92004-7009

Stud
(Superseded to KM-92004-7026)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 12

0

9

Cub Cadet KM-BPR4ES

Spark Plug (NGK)

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-92072-7003

Band

$1.49

$

In Stock, Qty 5

0

11

Cub Cadet KM-92151-2097

Bolt, 12 x 30
(Superseded to KM-92154-7003)

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet KM-92200-7002

Washer

$3.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KM-130AA0620

Flange Bolt, 6 x 20

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92172-7018

Screw, 5 x 20

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

16

Cub Cadet KM-510A5100

Woodruff Key

$3.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-27010-7002

Oil Pressure Switch
(Superseded to KM-27010-0818)

$23.99

$

In Stock, Qty 8

0
