RZT-54 (17AI2ACK056) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2009) Kawasaki FH721-W04 Lubrication Equipment Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

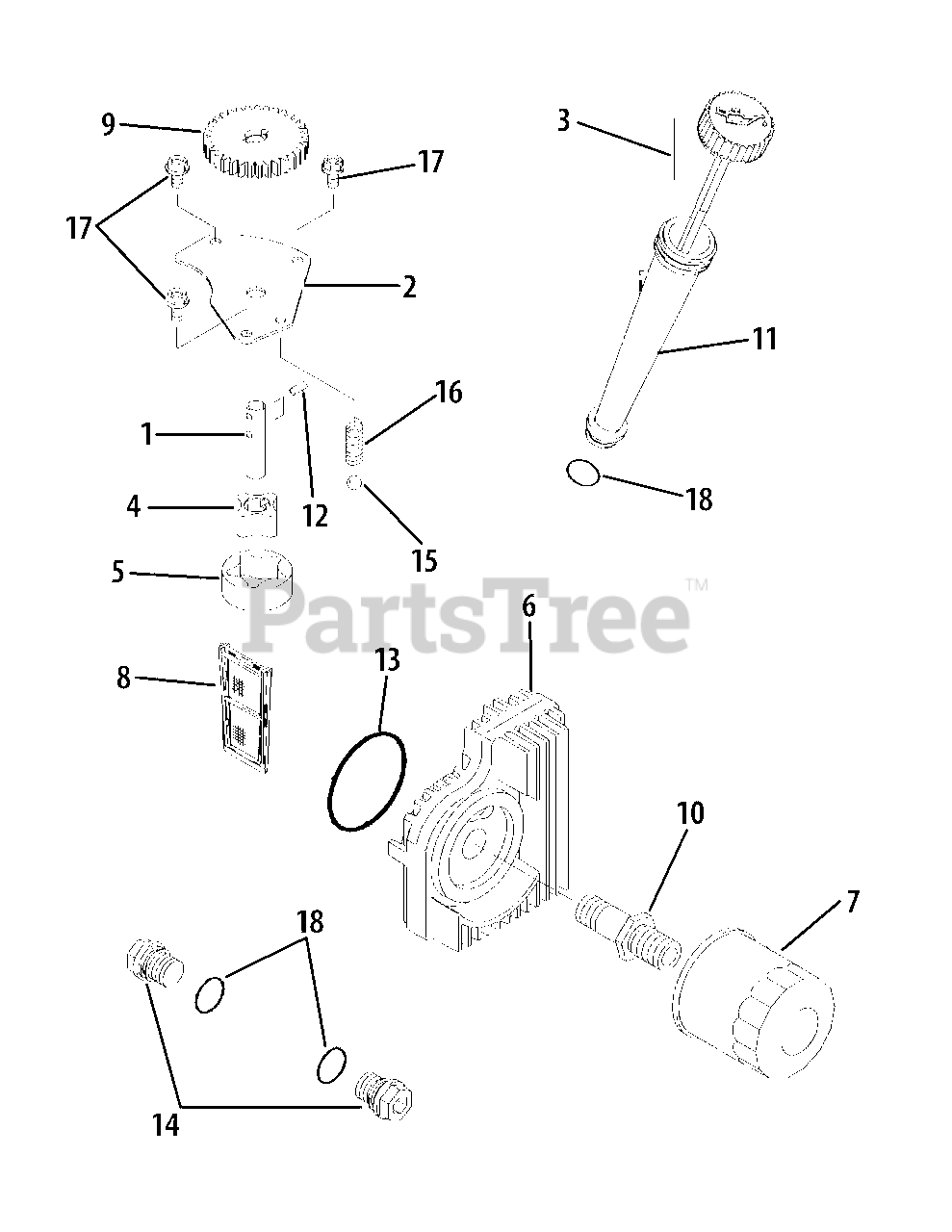

Kawasaki FH721-W04 Lubrication Equipment Parts Diagram

  • Title

1

Cub Cadet KM-13107-7009

Shaft
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 2 left!

0

2

Cub Cadet KM-13271-7005

Plate

$3.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-14075-7008

Dipstick Assembly

$11.99

$

In Stock, Qty 13

0

4

Cub Cadet KM-16154-7007

Pump Rotor (In)

$8.49

$

In Stock, Qty 8

0

5

Cub Cadet KM-16154-7008

Pump Rotor (Out)

$19.99

$

In Stock, only 2 left!

0

6

Cub Cadet KM-39067-7008

Oil Cooler

Note: BW04 & Some AW04

$87.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-39067-7002

Oil Cooler
(Superseded to KM-39067-7008)

Note: AW04 Only

$87.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-49065-2078

Oil Filter
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-49065-7003

Oil Filter Screen

$3.99

$

In Stock, Qty 19

0

9

Cub Cadet KM-59051-7011

Spur Gear

$65.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-59071-7009

Joint
(Superseded to KM-59071-0721)

$

$

Not available

11

Cub Cadet KM-59231-7006

Dipstick/Oil Fill Tube

$7.49

$

In Stock, Qty 12

0

12

Cub Cadet KM-92043-7003

Pin
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 12

0

13

Cub Cadet KM-92055-7006

O-Ring

$2.49

$

In Stock, Qty 20+

0

14

Cub Cadet KM-92066-7003

Plug
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, only 4 left!

0

16

Cub Cadet KM-92145-7002

Spring

$

$

Not available

17

Cub Cadet KM-92153-7043

Flange Bolt
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 10

0

18

Cub Cadet KM-670D2016

O-Ring, 16mm

$1.99

$

In Stock, Qty 20+

0
