RZT-54 (17AI2ACK256) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2009) Kawasaki FH721-W04 Carburetor Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

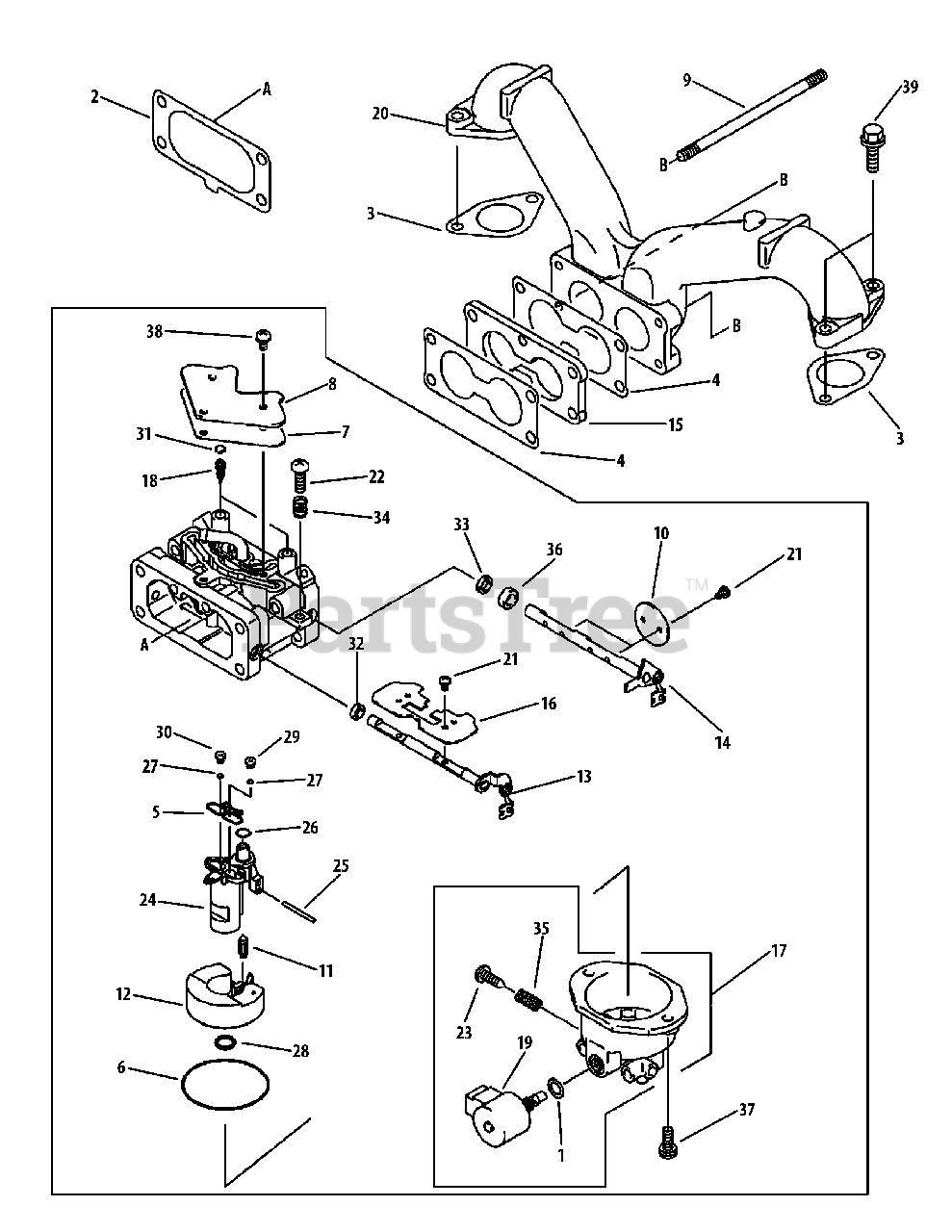

Kawasaki FH721-W04 Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11009-2056

Gasket

$0.99

$

In Stock, Qty 19

0

2

Cub Cadet KM-11060-7009

Air Filter Gasket

$2.49

$

In Stock, Qty 20+

0

3

Cub Cadet KM-11060-7011

Manifold Gasket

$2.49

$

In Stock, Qty 14

0

4

Cub Cadet KM-11060-7024

Carburetor Gasket

$11.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11061-7037

Gasket

$6.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-11061-7038

Gasket

$2.49

$

In Stock, Qty 20+

0

7

Cub Cadet KM-11061-7039

Gasket

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet KM-14091-7031

Cover

$14.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-172BA06105

Stud Bolt

$4.49

$

In Stock, only 2 left!

0

10

Cub Cadet KM-16025-7003

Throttle Valve

$25.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KM-16030-7004

Float Valve

$25.99

$

In Stock, Qty 6

0

12

Cub Cadet KM-16031-7003

Float

$44.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-16041-7021

Carburetor Shaft
(Superseded to KM-16041-0028)

$51.99

$

In Stock, only 4 left!

0

14

Cub Cadet KM-16041-7025

Carburetor Shaft
(Superseded to KM-16041-0029)

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet KM-16073-7005

Insulator

$4.49

$

In Stock, Qty 10

0

16

Cub Cadet KM-16126-7015

Choke Valve

$15.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-16184-7017

Float Chamber

$362.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-16187-7002

Jet Needle

$13.99

$

In Stock, only 4 left!

0

19

Cub Cadet KM-21188-7003

Solenoid

$95.99

$

In Stock, Qty 6

0

20

Cub Cadet KM-59076-7011

Intake Manifold
(Superseded to KM-59076-0026)

$125.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92009-7003

Screw

$0.99

$

In Stock, Qty 20+

0

22

Cub Cadet KM-92009-7004

Screw

$1.49

$

In Stock, only 4 left!

0

23

Cub Cadet KM-92009-7006

Drain Screw

$1.49

$

In Stock, only 3 left!

0

24

Cub Cadet KM-92026-7011

Spacer

$8.49

$

In Stock, only 1 left!

0

25

Cub Cadet KM-92043-7014

Pin

$6.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KM-92055-7012

O-Ring
(Superseded to KM-92055-7024)

$0.99

$

In Stock, Qty 20+

0

27

Cub Cadet KM-92055-7013

O-Ring

$0.99

$

In Stock, Qty 20+

0

28

Cub Cadet KM-92055-7016

O-Ring

$2.49

$

In Stock, Qty 20+

0

29

Cub Cadet KM-92063-7051

Main Jet, #104

$30.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KM-92063-7075

Main Jet, #101, 3280 FT

$21.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KM-92063-7076

Main Jet, #098, 6560 FT

$21.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92063-7056

Main Jet, #102

$35.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92063-7079

Main Jet, #099, 3280 FT

$26.99

$

Usually ships in 2-5 days

0

30

Cub Cadet KM-92063-7080

Main Jet, #096, 6560 FT

$22.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KM-92066-7009

Expansion Plug

$7.99

$

In Stock, Qty 7

0

32

Cub Cadet KM-92093-7001

D Seal Seal, 5.9

$2.49

$

In Stock, Qty 9

0

33

Cub Cadet KM-92093-7002

D Seal, 6.9

$2.49

$

In Stock, Qty 18

0

34

Cub Cadet KM-92145-7010

Spring

$2.49

$

Usually ships in 2-5 days

0

35

Cub Cadet KM-92145-7011

Spring

$2.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KM-92152-7005

Collar

$10.99

$

Usually ships in 2-5 days

0

37

Cub Cadet KM-92172-7005

Screw

$1.49

$

In Stock, Qty 5

0

38

Cub Cadet KM-92172-7006

Screw

$1.49

$

In Stock, only 4 left!

0

39

Cub Cadet KM-130AA0620

Flange Bolt

$3.49

$

In Stock, only 4 left!

0
