RZT 54 x (967671101-00) - RedMax 54" Zero-Turn Riding Mower (2017-11) IGNITION SYSTEM Parts Diagram

54" Zero-Turn Riding Mower

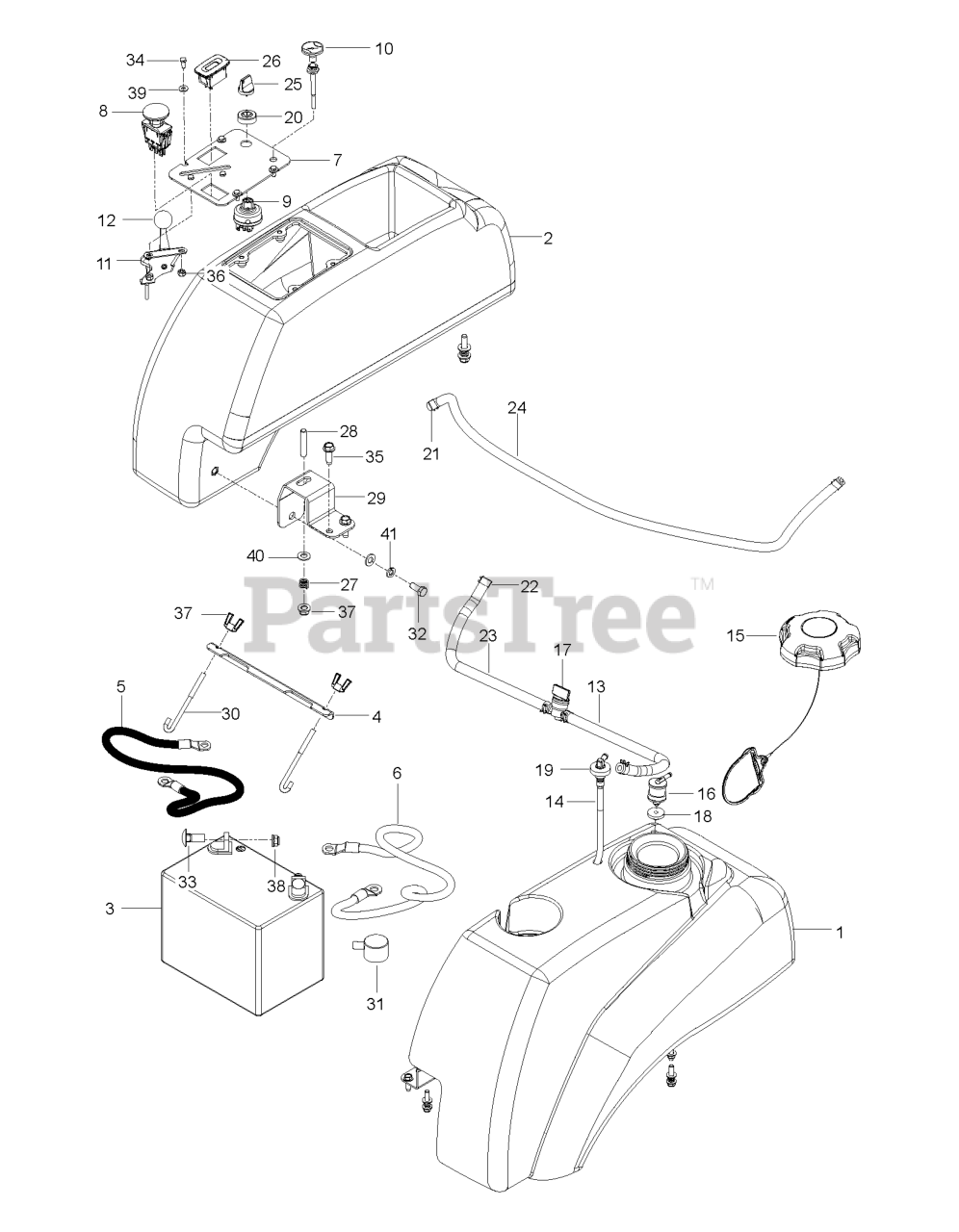

IGNITION SYSTEM Parts Diagram

  • Title

1

RedMax 585722306

FUEL.TANK.ASSY.LH.MZ.BLK.17
(Superseded to 597426506)

$

$

Not available

2

RedMax 576683701

CONSOLE, RT-BLK

$203.99

$

Usually ships in 3-10 days

0

3

RedMax 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

4

RedMax 588107201

BRACKET.BATTERY.MOUNT.PLATED
(Superseded to 593634404)

$4.99

$

In Stock, Qty 5

0

5

RedMax 588030801

CABLE.GROUND.BATT.MZ.BLACK.39"

$21.99

$

Usually ships in 3-10 days

0

6

RedMax 588030701

CABLE.BATT.SOLENOID.MZ.RED.25"

$17.99

$

In Stock, only 2 left!

0

7

RedMax 574841204

PLATE.CONSOLE.BLACK
(Superseded to 592877402)

$7.49

$

In Stock, Qty 9

0

8

RedMax 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$31.99

$

In Stock, Qty 20+

0

9

RedMax 574455401

SWITCH, IGNITION, INDAK

$41.99

$

In Stock, Qty 20+

0

10

RedMax 539112439

CHOKE CABLE

$39.99

$

In Stock, only 4 left!

0

11

RedMax 539112438

THROTTLE CABLE

$

$

Not available

12

RedMax 539133049

KNOB.ROUND.BALL.BLACK

$9.49

$

In Stock, Qty 11

0

13

RedMax 586123903

FUEL.HOSE.SHUT.OFF.ASM.10".10"

$14.99

$

In Stock, only 2 left!

0

14

RedMax 576469201

FITTING, FUEL

$29.99

$

In Stock, Qty 10

0

15

RedMax 575018101

CAP, FUEL

$

$

Not available

16

RedMax 576618101

VALVE.FUEL.CHECK

$30.99

$

In Stock, Qty 7

0

17

RedMax 539916325

FUEL VALVE

$13.99

$

In Stock, only 1 left!

0

18

RedMax 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 20+

0

19

RedMax 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 20+

0

20

RedMax 539103178

CAP IGNITION NUT
(Superseded to 539115739)

$5.99

$

Usually ships in 3-10 days

0

21

RedMax 575436501

CLAMP, HOSE

$3.99

$

In Stock, only 3 left!

0

22

RedMax 532123487

HOSE CLAMP

$3.99

$

In Stock, Qty 8

0

23

RedMax 587044810

HOSE.1/4".LOW.PERM.FUEL.LN.10"

$13.99

$

In Stock, only 2 left!

0

24

RedMax 587044527

HOSE.3/16".VAPOR.LINE.27"LGTH

$

$

Not available

25

RedMax 574455501

KEY, IGNITION

$6.99

$

In Stock, Qty 20+

0

26

RedMax 586161801

GUAGE.SRVCMNDR.HRMTR.
(Superseded to 594919101)

$

$

Not available

27

RedMax 539102845

SPRING

$3.99

$

In Stock, only 1 left!

0

28

RedMax 539102502

STUD, 5/16C

$

$

Not available

29

RedMax 588843202

SUPPORT.PNT.TANK.FRONT.STAMPED

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 510064001

HOOK, "J"
(Superseded to 510064002)

$3.99

$

Usually ships in 3-10 days

0

31

RedMax 532435395

COVER.TERMINAL.BATTERY

$5.99

$

In Stock, only 1 left!

0

32

RedMax 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

33

RedMax 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$2.49

$

In Stock, Qty 11

0

34

RedMax 539990411

HCS #10-24 X 1/2

$

$

Not available

35

RedMax 817490516

SCREW
(Superseded to 539113226)

$

$

Not available

36

RedMax 539976977

NUT 10-24 NYLOC
(Superseded to 596040801)

$3.99

$

In Stock, Qty 20+

0

37

RedMax 539990997

WING NUT 1/4

$3.49

$

In Stock, only 2 left!

0

38

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$7.49

$

In Stock, Qty 20+

0

39

RedMax 819070818

WASHER
(Superseded to 819070816)

$6.99

$

In Stock, only 4 left!

0

40

RedMax 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

41

RedMax 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

RedMax 589669901

HARNESS.MAIN.MZ.PTO.RELAY

Note: NOT SHOWN

$205.99

$

Usually ships in 3-10 days

0

RedMax 532409615

RELAY HARNESS.SEALED

Note: NOT SHOWN

$27.99

$

Usually ships in 3-10 days

0
