RZT 54 x (967671101-00) - RedMax 54" Zero-Turn Riding Mower (2017-11) SEAT Parts Diagram

54" Zero-Turn Riding Mower

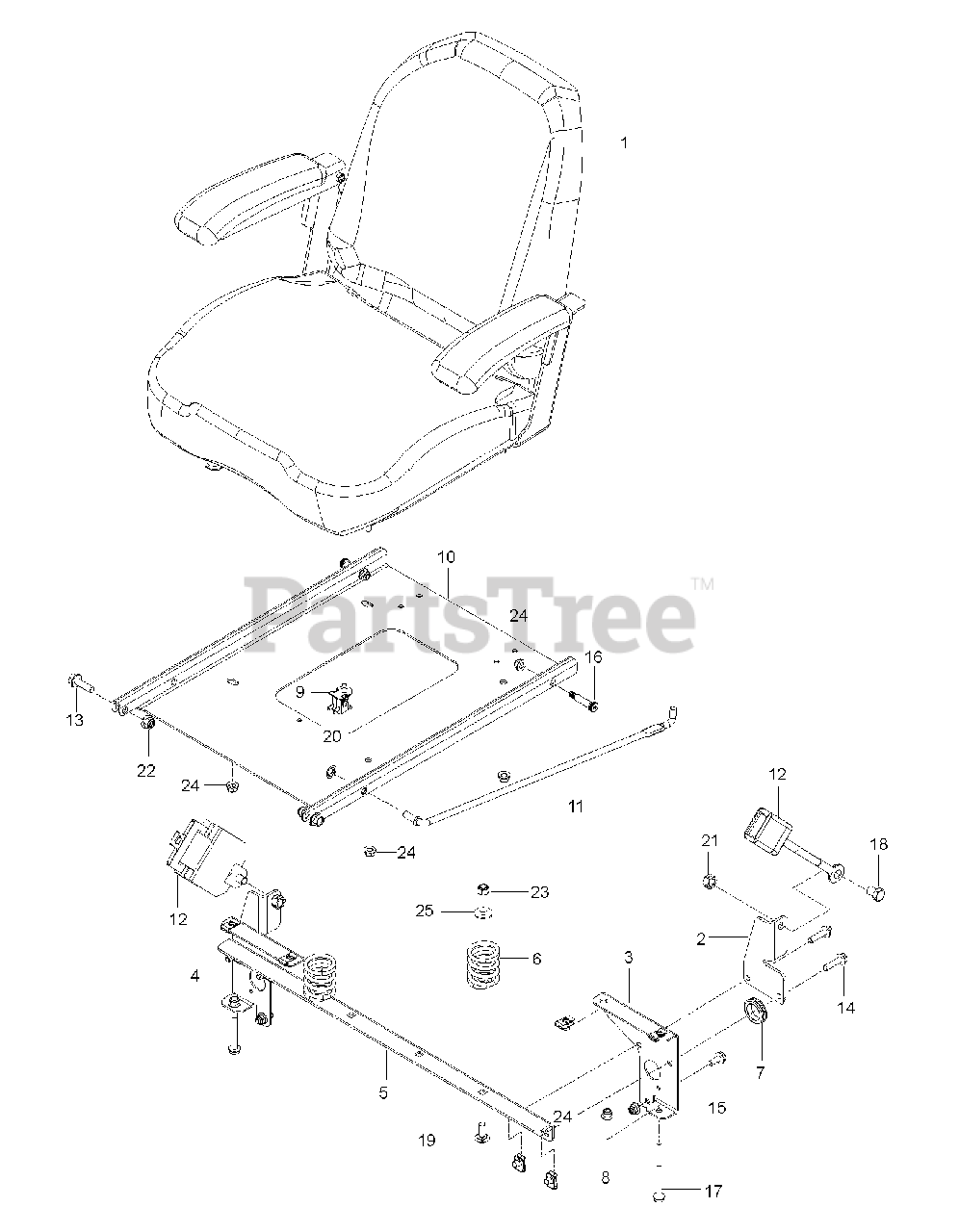

SEAT Parts Diagram

  • Title

1

RedMax 590898901

SEAT 907 W/ SLIDE REDMAX

$797.99

$

Usually ships in 3-10 days

0

2

RedMax 584916802

MOUNT.SEAT.BELT.BLACK

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 584990202

SUPPORT.LT.BLK

$6.99

$

In Stock, only 4 left!

0

4

RedMax 584990102

SUPPORT.RT.BLK

$7.99

$

Usually ships in 3-10 days

0

5

RedMax 584809102

SUPPORT.SEAT. BLK

$43.99

$

Usually ships in 3-10 days

0

6

RedMax 587613301

SPRING.COMPRESSION.SEAT.BLACK

$6.99

$

In Stock, Qty 12

0

7

RedMax 539105974

RUBBER GROMMET

$

$

Not available

8

RedMax 539104763

U-CLIP 5/16-18 NUT RETAINER

$4.99

$

In Stock, Qty 20+

0

9

RedMax 532421062

SWITCH.SNAPMOUNT.NC

$17.99

$

In Stock, Qty 11

0

10

RedMax 510039302

PAN, SEAT, BLACK

$136.99

$

In Stock, only 1 left!

0

11

RedMax 510064101

ROD, SEAT
(Superseded to 510064102)

$11.99

$

Usually ships in 3-10 days

0

12

RedMax 539130359

SEAT BELT - RETRACTABLE
(Superseded to 596322701)

$136.99

$

Usually ships in 3-10 days

0

13

RedMax 525834201

HHFS 3/8-16 X 1.25 GD 5
(Superseded to 525834202)

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5
(Superseded to 525544002)

$4.99

$

In Stock, only 1 left!

0

15

RedMax 874490512

HHFS 5/16-18 X 3/4
(Superseded to 592858702)

$4.99

$

In Stock, only 2 left!

0

16

RedMax 515990601

BOLT, SHOULDER 3/8 X 1.25
(Superseded to 515990602)

$3.49

$

In Stock, only 2 left!

0

17

RedMax 874490560

BOLT.HEX.FLNG.5/16-18X3.75
(Superseded to 583613301)

$5.99

$

In Stock, only 4 left!

0

18

RedMax 539112034

HCS 7/16-20 X .75 GD 5

$3.49

$

Usually ships in 3-10 days

0

19

RedMax 539990645

RHSNB 3/8C X 1
(Superseded to 595316801)

$4.99

$

In Stock, only 2 left!

0

20

RedMax 539913847

NUT 3/8 PALNUT RTNG BLK PHOS

$3.49

$

In Stock, only 2 left!

0

21

RedMax 539990394

NUT HEX 7/16F LOCK RP

$3.49

$

Usually ships in 3-10 days

0

22

RedMax 521996501

NUT 3/8-16 HEX FLG NYLOC ZD
(Superseded to 521996502)

$3.49

$

In Stock, Qty 20+

0

23

RedMax 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.49

$

In Stock, Qty 20+

0

24

RedMax 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 14

0

25

RedMax 539990517

RP WASHER 3/8 FLAT
(Superseded to 596433701)

$3.49

$

In Stock, Qty 20+

0
