RZT-L34 (17RQNAEU010) - Cub Cadet 34" RZT Zero-Turn Mower (2018) Frame Parts Diagram

34" RZT Zero-Turn Mower

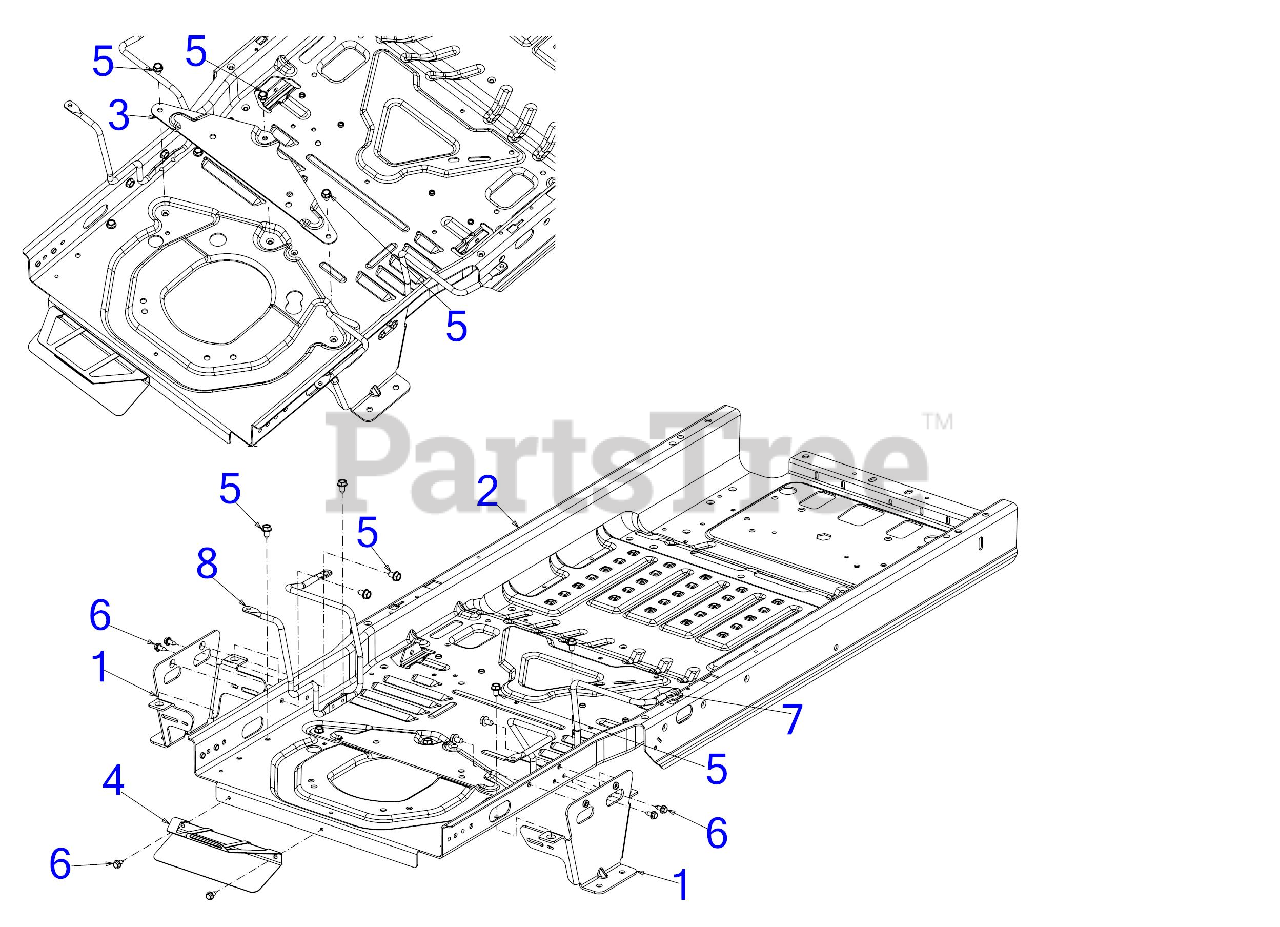

Frame Parts Diagram

  • Title

1

Cub Cadet 703-10815

TRANSMISSION MOUNTING SIDE BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10815-0637

BRKT-TRANSMSN MTG - POWDER BLACK (0637)

$44.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-10815-0606

BRKT-TRANSMSN MTG - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 703-10815-0638

BRKT-TRANSMSN MTG - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 703-10815-0691

TRANSMISSION MOUNTING SIDE BRACKET (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

$44.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-10887B

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10887B-0637

FRAME (POWDER BLACK) - POWDER BLACK (0637)

$761.99

$

Usually ships in 3-6 days

0

$761.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-10921

ENGINE SUPPORT PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10921-0637

PLT-ENG SUPPORT - POWDER BLACK (0637)

$21.99

$

Usually ships in 3-6 days

0

$21.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-11115

LOWER HEAT SHIELD

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-11115-0637

SHIELD-LOWER HEAT - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 747-06892A

POD SUPPORT ROD (RH)

$40.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 747-06893A

POD SUPPORT ROD (LH)

$42.99

$

Usually ships in 3-6 days

0
