RZT-L42 KH (17ARCACS210) - Cub Cadet 42" RZT Zero-Turn Mower, Kohler (2017) Fuel Tank Parts Diagram

42" RZT Zero-Turn Mower, Kohler

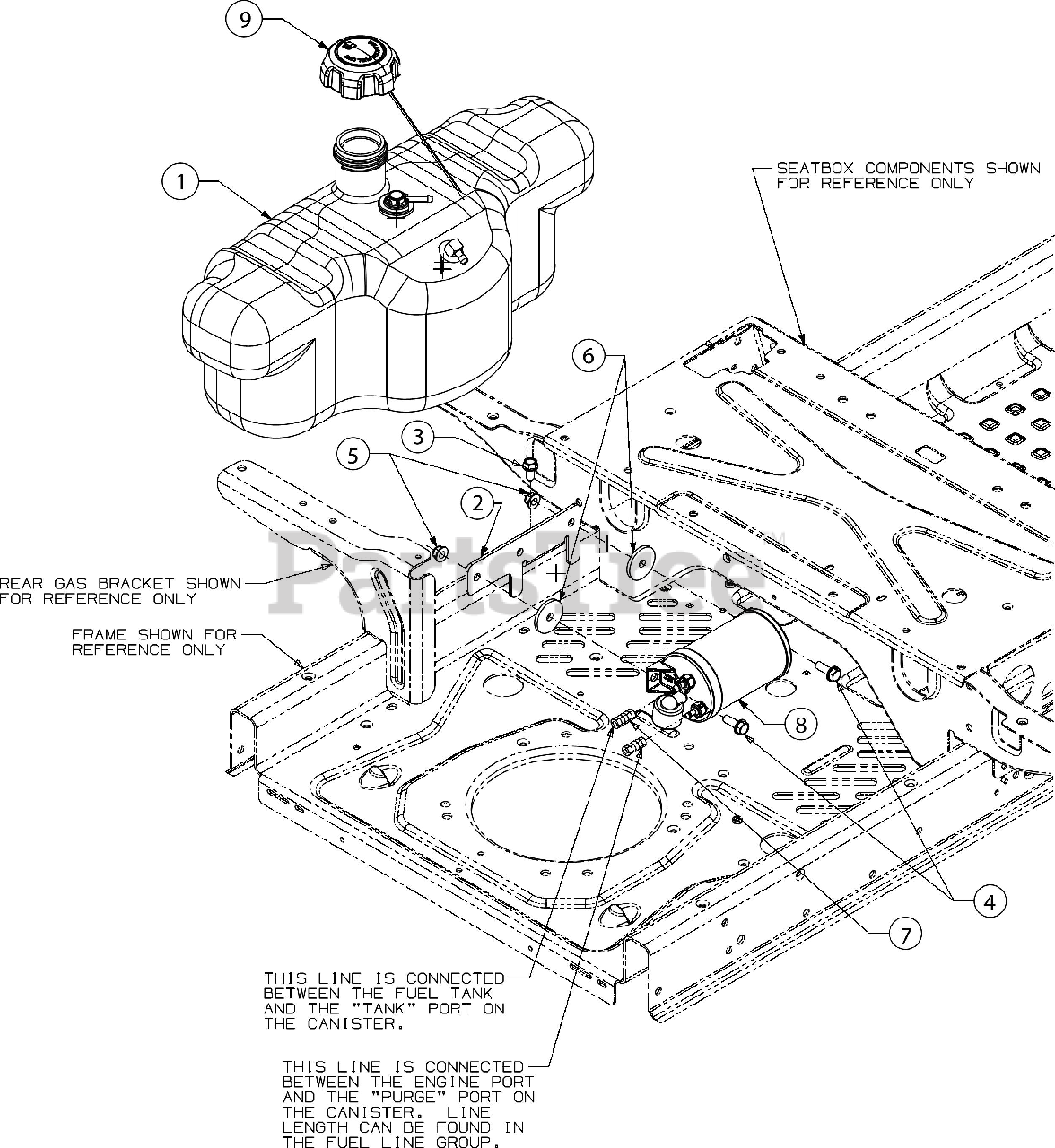

Fuel Tank Parts Diagram

  • Title

1

Cub Cadet 951-05137

FUEL TANK ASSEMBLY
(Superseded to 951-05137A)

$

$

Not available

1

Cub Cadet 935-0149

BUSHING

$2.99

$

In Stock, Qty 20+

0

1

Cub Cadet 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

$4.99

$

In Stock, Qty 11

0

1

Cub Cadet 751-10442

FUEL PICKUP FITTING

$34.99

$

In Stock, Qty 11

0

1

Cub Cadet 751-12118

ROLLOVER FUEL VALVE

$38.99

$

In Stock, only 2 left!

0

2

Cub Cadet 703-08769A

CARBON CANISTER BRACKET

Variations

703-08769A-0637

Cub Cadet 703-08769A-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$16.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 736-0505

FLAT WASHER

$6.99

$

In Stock, Qty 6

0

7

Cub Cadet 751-10750-28

FUEL HOSE LO PERMEATION

$

$

Not available

8

Cub Cadet 951-12372

CARBON CANISTER
(Superseded to 951-12372A)

$75.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 951-12426A

FUEL CAP W/TETHER
(Superseded to 951-12426B)

$43.99

$

Usually ships in 3-6 days

0
