RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Battery Mount Parts Diagram

42" RZT Zero-Turn Mower, Electric

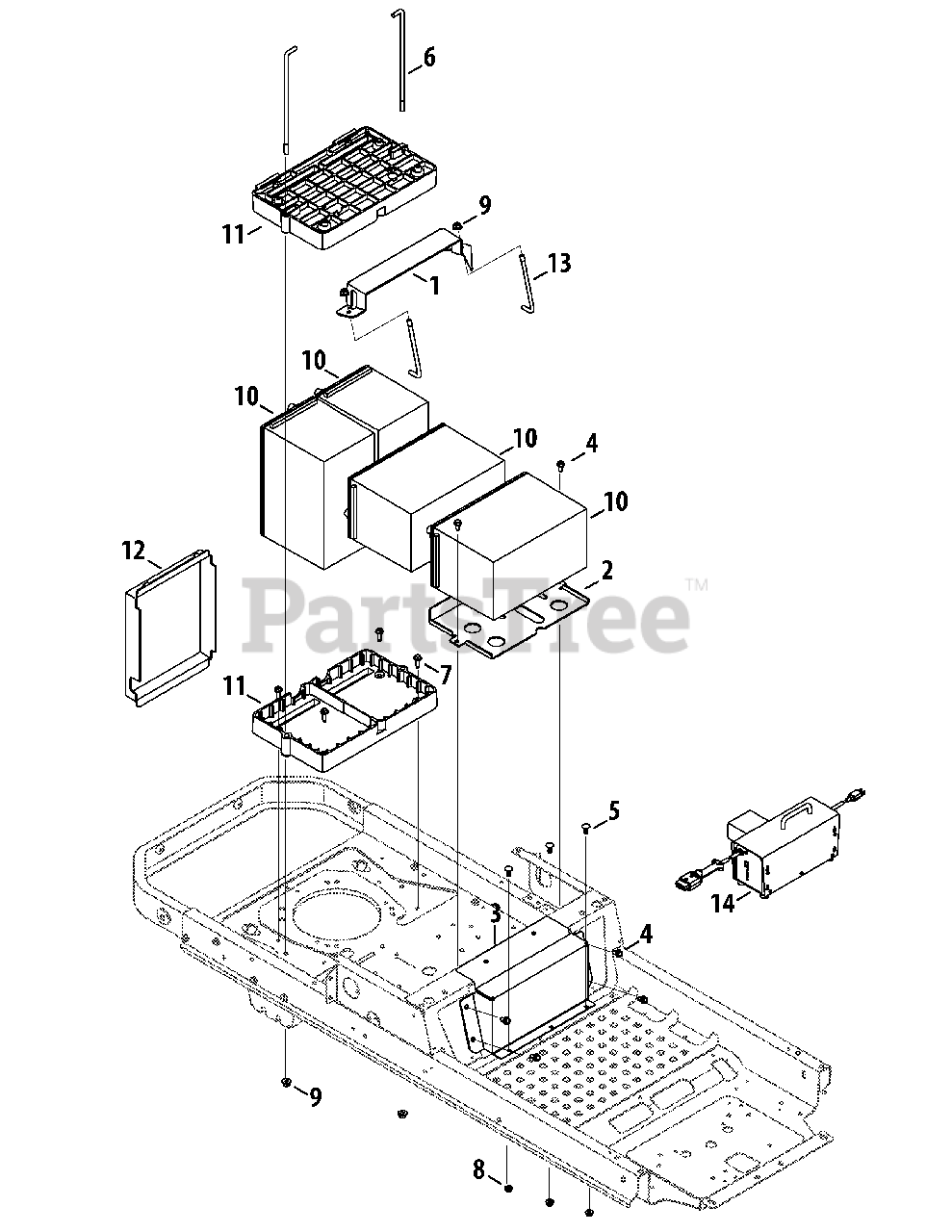

Battery Mount Parts Diagram

  • Title

1

Cub Cadet 703-09783-0637

Battery Clamp

$56.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08821-4021

Battery Tray, Front

$45.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08908-4021

Battery Clamp, Front

$119.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-05455

Battery Hold Down Bolt, 3/8-16

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0602

Hex Washer Screw, 5/16-18 x 1.000

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 725-05395

Battery, 12V

$504.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-08896

Battery Tray

$62.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 731-09016

Battery Terminal Cover

$38.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 747-05723

Battery Hold Down Bolt, 3/8-16

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-05350

Battery Charger

$760.99

$

Usually ships in 3-6 days

0
