RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2015) Mower Deck 42-Inch Parts Diagram

42" RZT Zero-Turn Mower, Electric

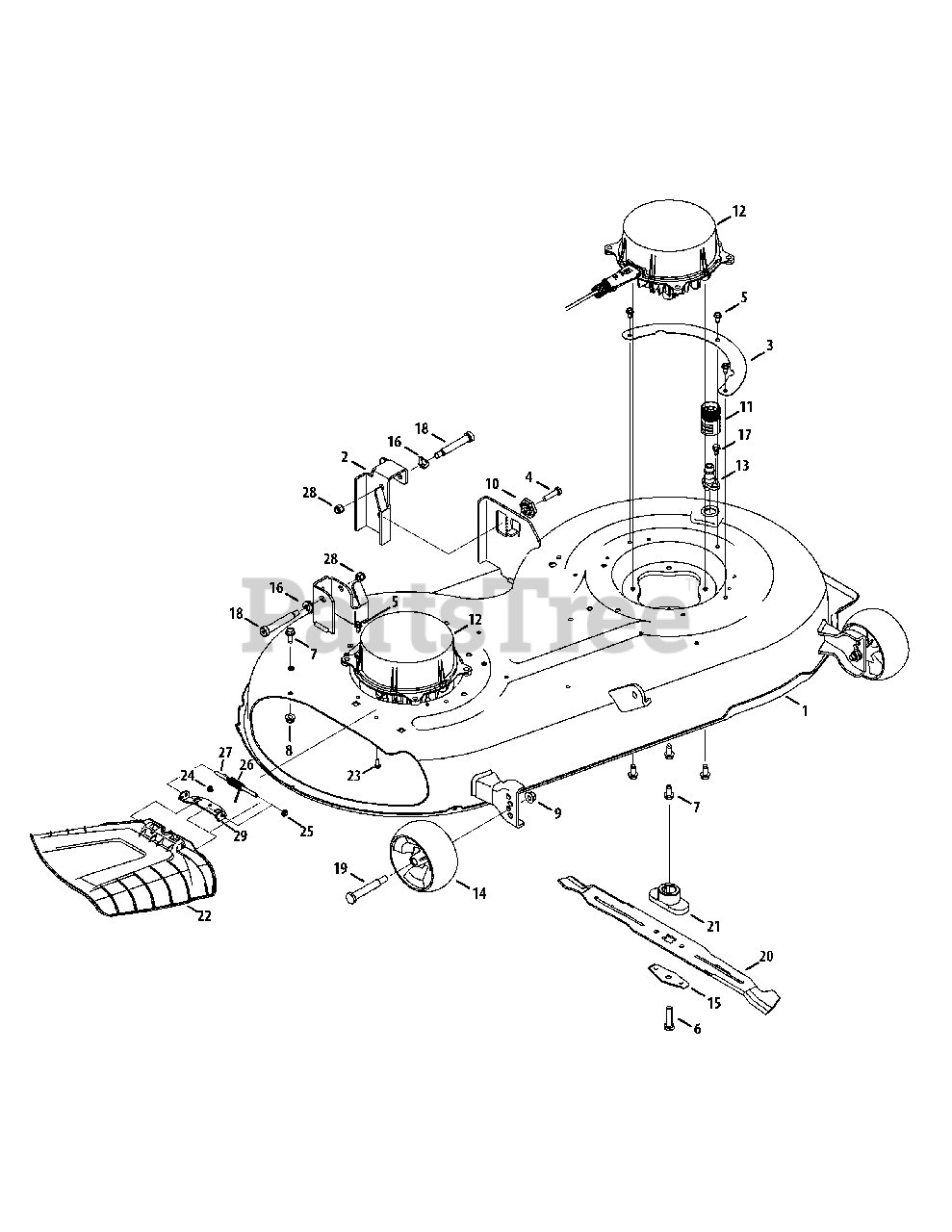

Mower Deck 42-Inch Parts Diagram

  • Title

1

Cub Cadet 903-05162-4021

42" Deck

$787.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 683-05124

Deck Lift Bracket

Variations

683-05124-0606

Cub Cadet 683-05124-0606

BRACKET-DECK HNGR LH - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

683-05124-0637

Cub Cadet 683-05124-0637

BRACKET-DECK HNGR LH - POWDER BLACK (0637)

$47.99

$

Usually ships in 3-6 days

0

683-05124-4021

Cub Cadet 683-05124-4021

BRACKET-DECK HNGR LH - CUB YELLOW 2 (4021)

$47.99

$

Usually ships in 3-6 days

0

683-05124-4033

Cub Cadet 683-05124-4033

Hanger Deck Bracket, LH - FLINT MICA (4033)

$47.99

$

Usually ships in 3-6 days

0

683-05124-4044

Cub Cadet 683-05124-4044

Hanger Deck Bracket, LH - CRAFTSMAN RED (4044)

$47.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09086-4021

Deck Cover

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.99

$

In Stock, only 3 left!

0

5

Cub Cadet 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1044

Hex Cap Screw 3/8-24 x 1.50

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1260A

Hex Washer Head Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 20+

0

11

Cub Cadet 921-04041

Water Nozzle Adapter

$24.99

$

In Stock, Qty 20+

0

12

Cub Cadet 924-04140

Deck Motor, 48V

$1011.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 731-07487

Deck Wash Nozzle

$4.99

$

In Stock, Qty 15

0

14

Cub Cadet 734-04155

Deck Ball Wheel, 5.0

$21.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-0524B

Bell Blade Spacer
(Superseded to 736-0524B-1)

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0182

Spring Washer,.50 x 1.0 x.022

$4.99

$

In Stock, Qty 15

0

17

Cub Cadet 738-04278

Shoulder Screw, .500 x 1/4-20

$7.49

$

In Stock, only 1 left!

0

18

Cub Cadet 738-05092

Shoulder Screw, .5 x 2.75 x 3/8-16

$23.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 942-04403

Blade, 21.18"
(Superseded to 742-04403-0637)

$32.99

$

In Stock, only 2 left!

0

21

Cub Cadet 748-0376E

Blade Adapter

$21.99

$

In Stock, Qty 20+

0

22

Cub Cadet 631-04354B

Chute Deflector Assembly
(Superseded to 631-04354C)

$46.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 726-04009

Push Cap
(Superseded to 726-04009A)

$7.99

$

In Stock, Qty 11

0

26

Cub Cadet 732-05261

Spring, Torsion, .440 ID x 1.75

$6.49

$

In Stock, Qty 14

0

27

Cub Cadet 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 14

0

28

Cub Cadet 712-0130

Hex Lock Nut, 3/8-16

$4.49

$

In Stock, only 2 left!

0

29

Cub Cadet 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

783-08504A-0637

Cub Cadet 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$15.99

$

In Stock, Qty 20+

0

$15.99

$

In Stock, Qty 20+

0
