RZT-S42 Zero (17AVCEDS710) - Cub Cadet 42" RZT Zero-Turn Mower, Electric (2016) Front Axle Parts Diagram

42" RZT Zero-Turn Mower, Electric

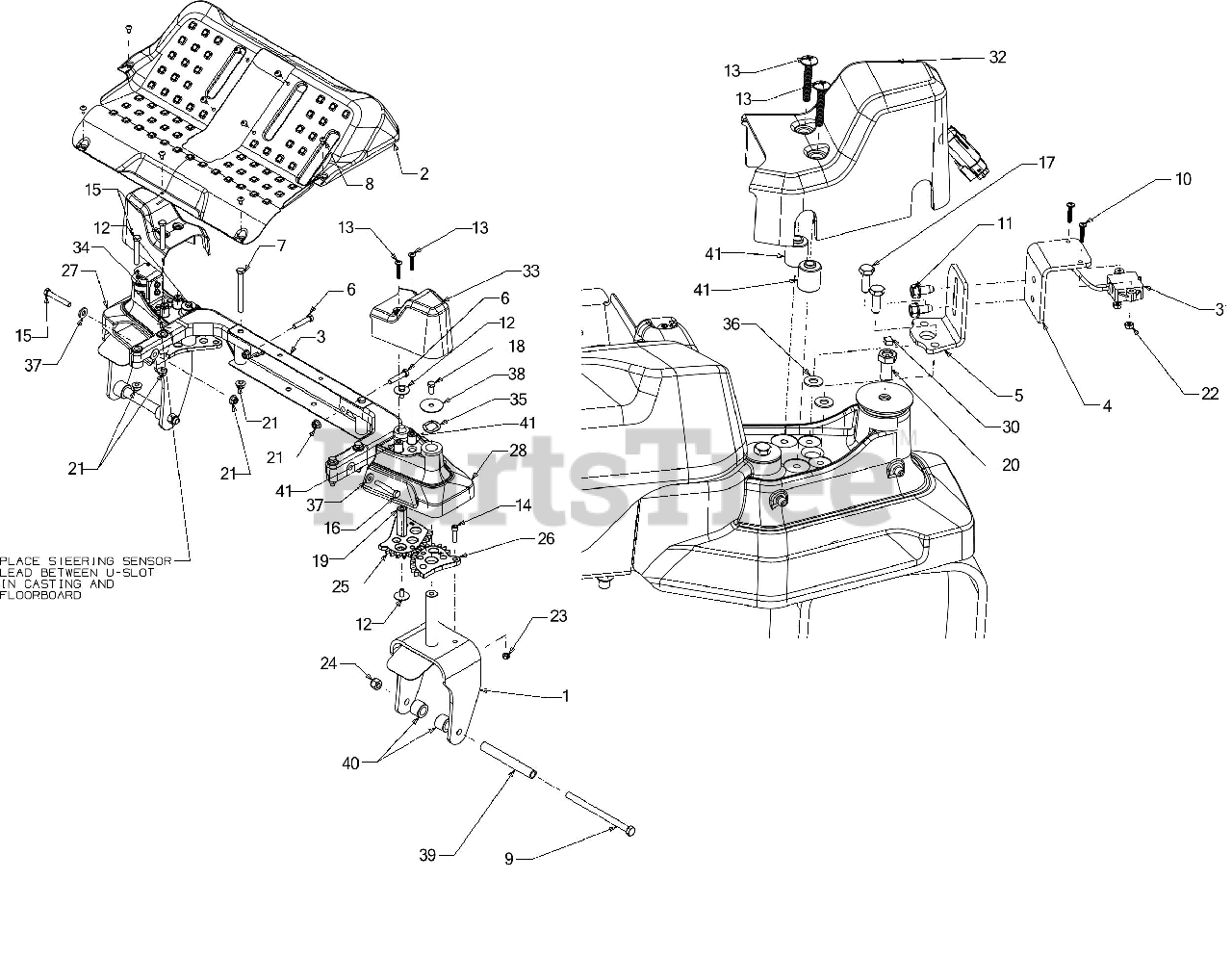

Front Axle Parts Diagram

  • Title

1

Cub Cadet 603-04961A-0637

CASTER WHEEL YOKE

$152.99

$

In Stock, only 1 left!

0

2

Cub Cadet 703-08642A-4021

FLOORBOARD
(Superseded to 703-08642B-4021)

$148.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08663-0637

FRONT BUMPER

$12.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09067

STEERING SENSOR BRACKET

$16.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09068

SENSOR ADJUST BRACKET

$16.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0411

HEX SCREW 3/8-16 x 4.00

$8.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-04483

SCREW 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-04652

BOLT 1/2-20 x 7.25 GR5
(Superseded to 710-11661)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-05437

SCREW #5-40 x .625

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-06041

SCREW 5/16-18 X.75 GR5

$4.49

$

In Stock, only 1 left!

0

13

Cub Cadet 710-06066

SCREW 1/4-20 x 1.50

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-06508

SCREW 5/16-18X1.25

$4.49

$

In Stock, only 2 left!

0

15

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, Qty 7

0

19

Cub Cadet 711-05742

STEERING GEAR PIVOT SHAFT

$26.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-06007

MAGNET MOUNTING BOLT

$8.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04330

HEX LOCK NUT #5-4

$2.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

24

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 20+

0

25

Cub Cadet 717-04952

STEERING GEAR

$53.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 717-04953

STEERING SPUR GEAR

$40.99

$

In Stock, only 1 left!

0

27

Cub Cadet 719-04752

PIVOT AXLE HOUSING (LH)

Note: (Not Shown)

$

$

Not available

27

Cub Cadet 719-05007

AXLE PIVOT HOUSING (LH)

$357.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 759-05046

PIVOT AXLE HOUSING (RH)

Note: (Not Shown)

$865.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 759-05046

PIVOT AXLE HOUSING (RH)

Note: (Not Shown)

$865.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 719-05025

AXLE PIVOT HOUSING (RH)

$345.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 924-04153

ROTARY SENSOR MAGNET

$10.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 925-05449

ROTARY SENSOR

$128.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-09095

AXLE COVER (LH)

$15.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-09229

AXLE COVER (RH)

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 936-0424

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

35

Cub Cadet 936-0447

WAVE WASHER
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0463

FLAT WASHER
(Superseded to 736-0463)

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 936-3004

FLAT WASHER
(Superseded to 736-3004)

$

$

Not available

38

Cub Cadet 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 20+

0

39

Cub Cadet 750-04775A

CASTER SPACER

$28.99

$

In Stock, Qty 20+

0

40

Cub Cadet 750-04792

HUB:76 x 1.23X.92 LG

$7.99

$

In Stock, Qty 20+

0

41

Cub Cadet 750-06016

SHOULDER SPACER

$11.99

$

Usually ships in 3-6 days

0
