RZT-SX 42 EFI (17AWCBYS010) - Cub Cadet 42" RZT Zero-Turn Mower, Fab Deck, EFI (2021) Deck Parts Diagram

42" RZT Zero-Turn Mower, Fab Deck, EFI

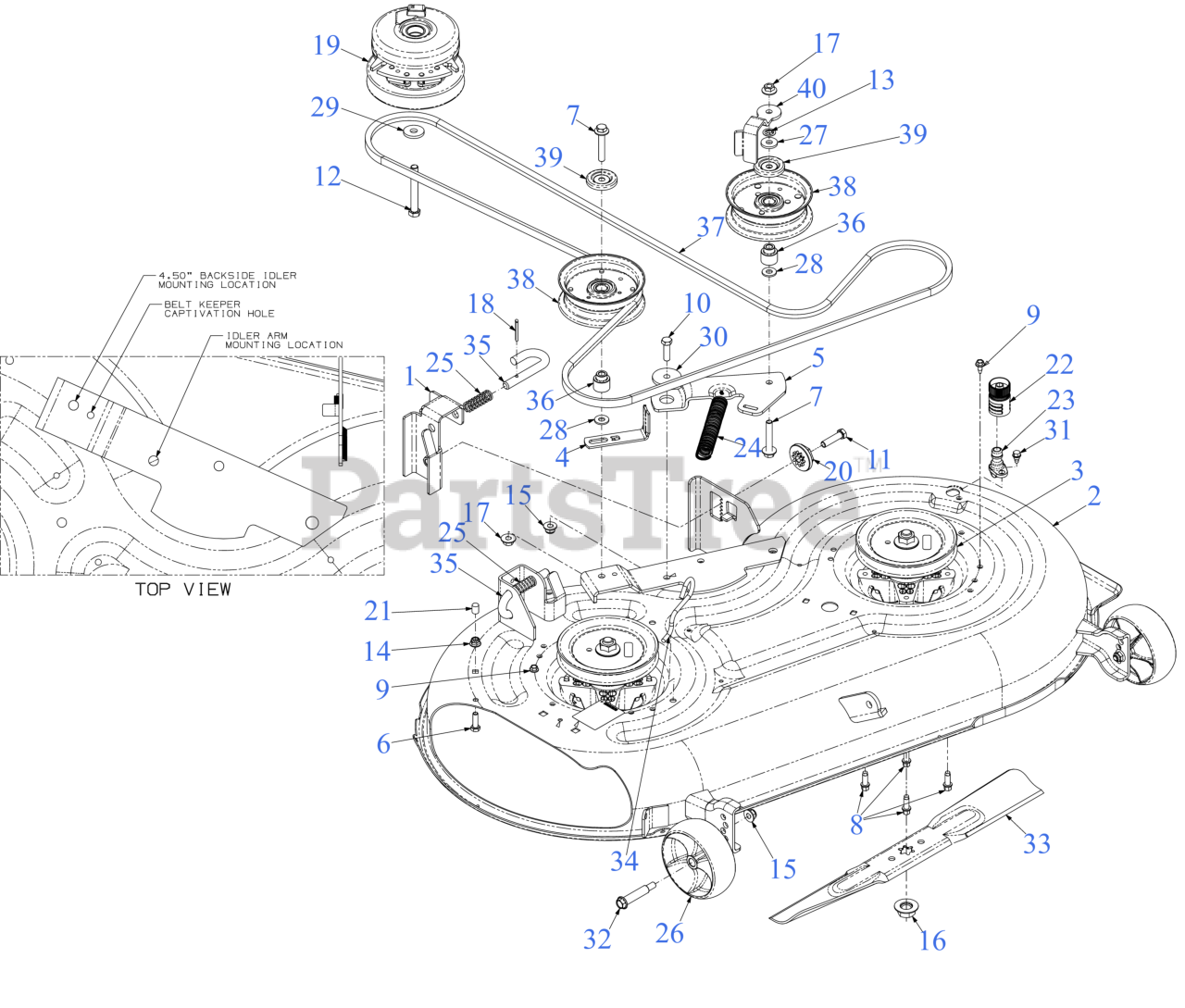

Deck Parts Diagram

  • Title

1

Cub Cadet 603-05215A

DECK HANGER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05215A-0637

Deck Hanger Bracket, LH - POWDER BLACK (0637)

$61.99

$

In Stock, only 2 left!

0

Cub Cadet 603-05215A-0691

DECK HANGER BRACKET (LH) (BLACK JACK) - BLACK JACK (0691)

$61.99

$

In Stock, only 2 left!

0

Cub Cadet 603-05215A-4021

BRKT-DECK HNGR LH - CUB YELLOW 2 (4021)

$61.99

$

In Stock, only 2 left!

0

Cub Cadet 603-05215A-4044

RED BRKTDECK HNGR LH - CRAFTSMAN RED (4044)

$61.99

$

In Stock, only 2 left!

0

$49.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603P08720

42" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$582.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04822B

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$121.99

$

In Stock, Qty 20+

0

4

Cub Cadet 703-09583

BELT GUARD BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09583-0637

Belt Guard Bracket - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703Z26741

42" IDLER PIVOT BRACKET

$27.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 17

0

7

Cub Cadet 710-06215

SCREW 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$4.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3120

SCREW 3/8-16X1.5 GR5

$3.99

$

In Stock, Qty 12

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$9.99

$

In Stock, Qty 13

0

13

Cub Cadet 712-0229

PUSH NUT

$3.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04217

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 917-05121

ELECTRIC PTO CLUTCH

$444.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 917-05298

DECK ADJUSTMENT GEAR

$12.99

$

In Stock, Qty 8

0

21

Cub Cadet 720-05010

VINYL CAP

$3.99

$

In Stock, Qty 13

0

22

Cub Cadet 921-04041

WATER NOZZLE ADAPTER

$21.99

$

In Stock, Qty 20+

0

23

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 732-05484

EXTENSION SPRING .94 x 6.75 RZT

$10.99

$

In Stock, Qty 7

0

25

Cub Cadet 932-3127

COMPRESSION SPRING .66 OD x 1

$4.49

$

In Stock, Qty 17

0

26

Cub Cadet 734-06305A

DECK WHEEL (5.0 DIA x 1.875)

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$8.49

$

In Stock, Qty 20+

0

30

Cub Cadet 738-04162C

SHOULDER SPACER

$12.99

$

In Stock, Qty 20+

0

31

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

Note: 2

$7.49

$

In Stock, only 1 left!

0

33

Cub Cadet 942-04308A

21.23" BLADE (2N1)

$31.99

$

In Stock, Qty 20+

0

33

Cub Cadet 490-110-C108

Cub Cadet 42" BLADE SET

Note: Retail Packaged Part

$62.99

$

In Stock, only 4 left!

0

33

Cub Cadet 490-110-M108

Genuine Factory Parts 42" BLADE SET(2N1)
(Superseded to 490-110-Y108)

Note: Retail Packaged Part

$62.99

$

In Stock, Qty 6

0

33

Cub Cadet 490-110-Y108

Troy-Bilt 42" BLADE SET(2N1)

Note: Retail Packaged Part

$62.99

$

In Stock, Qty 6

0

33

Cub Cadet 942-04308-X

21.23" BLADE (2N1) (XTREME)
(Superseded to 742P04308-X)

$31.99

$

In Stock, Qty 20+

0

33

Cub Cadet 490-110-C137

Cub Cadet BLADE SET (XTREME)

Note: Retail Packaged Part

$63.99

$

In Stock, only 2 left!

0

33

Cub Cadet 490-110-0137

BLD:XTREME SET MTD

Note: Retail Packaged Part

$66.99

$

In Stock, only 2 left!

0

33

Cub Cadet 942-04308-L

42" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-04312-L0606)

$28.99

$

In Stock, Qty 20+

0

33

Cub Cadet 942-04087

21.33" BLADE (HI-LIFT)
(Superseded to 742-04087-0637)

$48.99

$

In Stock, Qty 7

0

33

Cub Cadet 942-0616A

21.23" BLADE (MULCH)

$31.99

$

In Stock, Qty 20+

0

33

Cub Cadet 942-04312-L

42" 6 PT STAR LOW LIFT/SAND BLADE
(Superseded to 742-04312-L0606)

$28.99

$

In Stock, Qty 20+

0

34

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 747-06292

DECK RELEASE PIN

$10.99

$

In Stock, Qty 7

0

36

Cub Cadet 748-05037B

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 954-04137B

BELT A SEC x 114.24"

$44.99

$

In Stock, Qty 20+

0

37

Cub Cadet 490-501-C025

Cub Cadet 42"RZT DECK BELT (04317)

Note: Retail Packaged Part

$44.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 490-501-M025

Genuine Factory Parts 42" DECK DRIVE (954-04137A)
(Superseded to 954-04137B)

Note: Retail Packaged Part

$44.99

$

In Stock, Qty 20+

0

38

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$42.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

40

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$23.99

$

Usually ships in 3-6 days

0
