RZT-SX 54 KW FAB (17RICBYA010) - Cub Cadet 54" RZT Zero-Turn Mower, Fab Deck, Kawasaki (2021) Deck Parts Diagram

54" RZT Zero-Turn Mower, Fab Deck, Kawasaki

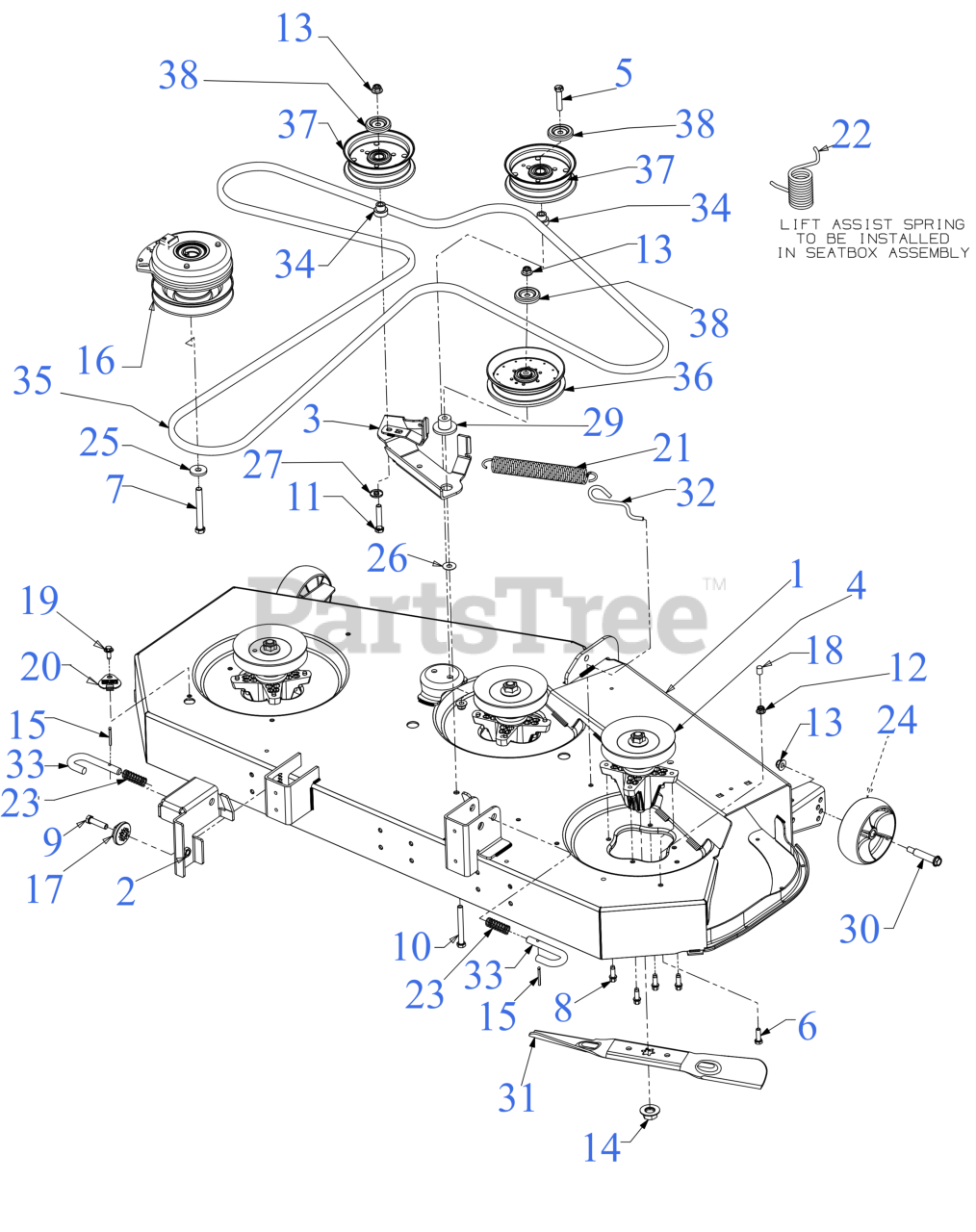

Deck Parts Diagram

  • Title

1

Cub Cadet 903-05205D

54"FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

2

Cub Cadet 603-05216

DECK HANGER BRACKET (LH) 54 FAB

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 603-05216-4021

Hanger Deck Bracket, LH - CUB YELLOW 2 (4021)

$74.99

$

In Stock, only 3 left!

0

Cub Cadet 603-05216-0637

Hanger Deck Bracket, LH Black - POWDER BLACK (0637)

$74.99

$

In Stock, only 3 left!

0

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-05350B

DECK IDLER ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$59.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 918-06978

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$149.99

$

In Stock, Qty 20+

0

4

Cub Cadet 490-130-C013

Cub Cadet 54" SPINDLE (06978 W/HDW)

Note: Retail Packaged Part

$140.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3120

SCREW 3/8-16X1.5 GR5

$4.49

$

In Stock, Qty 15

0

10

Cub Cadet 710-3130

SCREW 3/8-16 x 3.25 GR8

$10.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0417A

HEX NUT

$7.49

$

In Stock, Qty 20+

0

15

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 917-05209

ELECTRIC PTO CLUTCH

$577.99

$

In Stock, only 2 left!

0

17

Cub Cadet 917-05298

DECK ADJUSTMENT GEAR

$14.99

$

In Stock, Qty 11

0

18

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 6

0

19

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 783-06464

DECK WASH PLUG

$4.49

$

In Stock, Qty 11

0

21

Cub Cadet 732-04927

EXTENSION SPRING

$24.99

$

In Stock, Qty 20+

0

22

Cub Cadet 732-04947A

TORSION SPRING

$19.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 932-3127

COMPRESSION SPRING .66 OD x 1

$4.99

$

In Stock, Qty 15

0

24

Cub Cadet 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$16.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0344

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 736-3072

WASHER

$4.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-05081

SHOULDER SPACER

$7.99

$

In Stock, Qty 20+

0

30

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$8.49

$

In Stock, Qty 18

0

31

Cub Cadet 942-05056A

18.61" BLADE (2N1)

$32.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 747-06292

DECK RELEASE PIN

$12.99

$

In Stock, Qty 13

0

34

Cub Cadet 748-05029A

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

35

Cub Cadet 954-04329A

V-BELT B SEC x 148.25

$106.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-04511B

FLAT IDLER PULLEY

$56.99

$

In Stock, Qty 20+

0

37

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$48.99

$

In Stock, Qty 20+

0

38

Cub Cadet 783-08389

IDLER PULLEY CAP

$6.49

$

In Stock, Qty 20+

0
