RZX801GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 413950474 & Above) (Rev A) (2023) Control Panel Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V

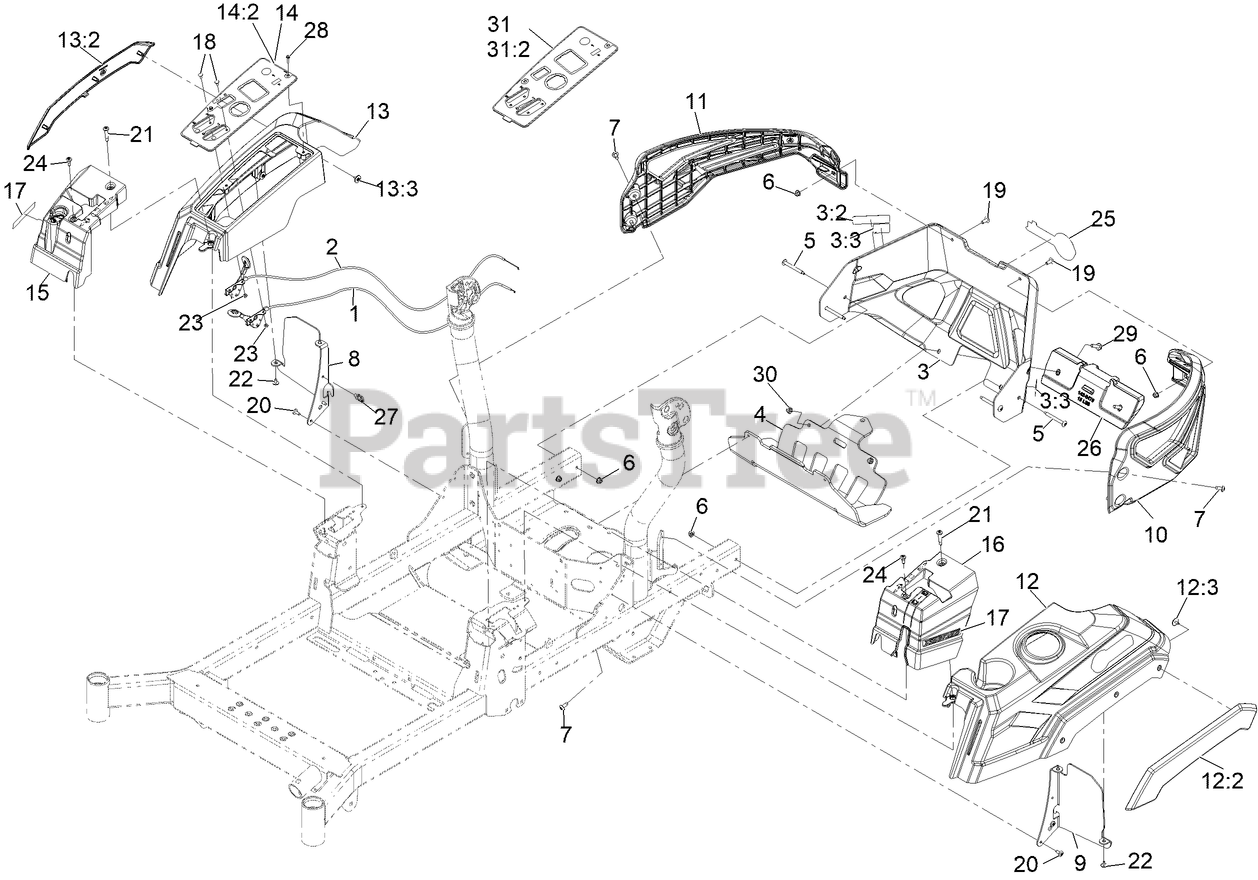

Control Panel Assembly Parts Diagram

  • Title

1

Exmark 142-8529

CABLE-CONTROL, THROTTLE

$39.99

$

In Stock, only 4 left!

0

2

Exmark 142-8530

CABLE-CONTROL, CHOKE

$27.99

$

In Stock, only 4 left!

0

3

Exmark 142-8345

ASM, Rear Guard W/ Decals

$185.99

$

Usually ships in 0 days

0

3:2

Exmark 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0

3:3

Exmark 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 2 left!

0

4

Exmark 142-9159-03

GUARD, MUFFLER [BLACK]

$251.99

$

Usually ships in 0 days

0

5

Exmark 126-6267

SCREW-TORX

$2.99

$

Usually ships in 3-6 days

0

6

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Exmark 142-8477

SCREW, TAPTITE

$1.49

$

Usually ships in 3-6 days

0

8

Exmark 142-8346-03

Bracket, Pod, Rt

$38.99

$

Usually ships in 0 days

0

9

Exmark 142-8347-03

Bracket, Pod, Lt

$38.99

$

Usually ships in 0 days

0

10

Exmark 142-8329

GUARD, UPPER, LT

$118.99

$

Usually ships in 3-6 days

0

11

Exmark 142-8328

GUARD, UPPER, RT

$118.99

$

Usually ships in 3-6 days

0

12

Exmark 142-8620

ASM, Pod Lt

$65.99

$

Usually ships in 0 days

0

12:2

Exmark 142-8476

Fender, Lt

$15.99

$

Usually ships in 3-6 days

0

12:3

Exmark 146-0013

Screw-Torx

$1.99

$

In Stock, only 3 left!

0

13

Exmark 142-8621

ASM, POD RT

$65.99

$

Usually ships in 3-6 days

0

13:2

Exmark 142-8475

Fender, Rt

$15.99

$

Usually ships in 0 days

0

13:3

Exmark 146-0013

Screw-Torx

$1.99

$

In Stock, only 3 left!

0

14

Exmark 142-8474

ASM-Control Panel W/Decal

$85.99

$

Usually ships in 0 days

0

14:2

Exmark 142-8540

DECAL-CONTROL PANEL

$10.99

$

Usually ships in 3-6 days

0

15

Exmark 142-8471

Cover, Motion Control, Rt

$22.99

$

Usually ships in 3-6 days

0

16

Exmark 142-8472

Cover, Motion Control, Lt

$22.99

$

Usually ships in 0 days

0

17

Exmark 142-8235

DECAL-X-SERIES

$2.99

$

Usually ships in 3-6 days

0

18

Exmark 135-1929

BOLT-CARR

$1.49

$

In Stock, only 1 left!

0

19

Exmark 126-6268

SCREW-TORX

$1.99

$

In Stock, Qty 5

0

20

Exmark 126-6266

SCREW-TORX

$1.49

$

Usually ships in 3-6 days

0

21

Exmark 136-4195

SCREW-SHOULDER

$6.49

$

Usually ships in 3-6 days

0

22

Exmark 126-5544

SCREW-TORX

$1.49

$

In Stock, Qty 8

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 135-2015

SCREW-SHOULDER

$3.99

$

Usually ships in 3-6 days

0

25

Exmark 126-6877

DECAL, EXMARK LOGO

$8.49

$

In Stock, only 3 left!

0

26

Exmark 142-8479

WEIGHT, REAR

$

$

Currently unavailable

27

Exmark 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

28

Exmark 146-0012

Screw-Plastic, HWH

$1.49

$

Usually ships in 0 days

0

29

Exmark 132-3837

SCREW-HHF

$0.99

$

Usually ships in 0 days

0

30

Exmark 32128-35

NUT-HF

$3.49

$

Usually ships in 3-6 days

0

31

Exmark 146-1840

ASM-Control Panel W/Decal

Note: Used with 103-5221 Switch-PTO

$

$

Currently unavailable

31:2

Exmark 146-1836

Decal-Control Panel

Note: Used with 103-5221 Switch-PTO

$

$

Currently unavailable
