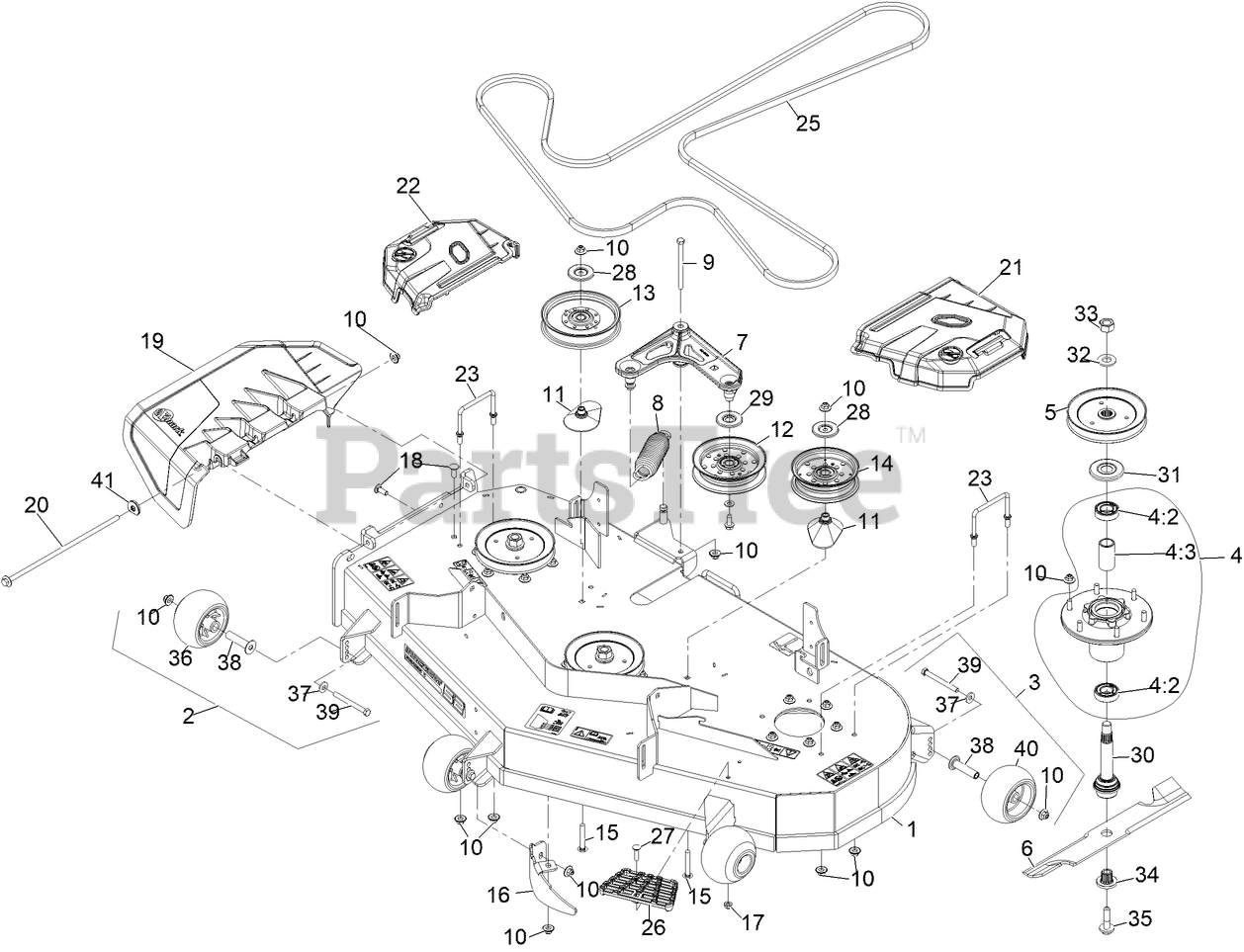

RZX801GKA524A3 - Exmark 52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V (SN: 413950474 & Above) (Rev A) (2023) Deck Assembly Parts Diagram

52" Radius X-Series Zero-Turn Mower, Kawasaki FX801V

Deck Assembly Parts Diagram

  • Title

1

Exmark 126-3587

ASM-DECK W/DECALS 524

$2682.99

$

Usually ships in 3-6 days

0

2

Exmark 116-9981

KIT, ANTI-SCALP ROLLER

$53.99

$

In Stock, Qty 20+

0

3

Exmark 126-7840

KIT-ANTISCALP ROLLER

$49.99

$

Usually ships in 3-6 days

0

4

Exmark 116-3344

ASM-CUTTER HSG WITH BEARINGS

$167.99

$

In Stock, Qty 12

0

4:2

Exmark 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

0

4:3

Exmark 116-3312

SPACER-BEARING

$9.99

$

In Stock, Qty 9

0

5

Exmark 116-0675

SHEAVE,BLADE DRIVE 6.50

$92.99

$

In Stock, Qty 5

0

6

Exmark 103-6392

USE 103-6392-S
(Superseded to 103-6392-S)

Note: Optional Equipment | Requires installation of mulch kit for proper mulching. See your Exmark dealer for details.

$30.99

$

In Stock, Qty 20+

0

6

Exmark 103-6387

USE 103-6387-S
(Superseded to 103-6387-S)

Note: Optional Equipment

$31.99

$

In Stock, Qty 12

0

6

Exmark 103-6382

USE 103-6382-S
(Superseded to 103-6382-S)

Note: Optional Equipment

$36.99

$

In Stock, Qty 5

0

6

Exmark 103-6402

USE 103-6402-S
(Superseded to 103-6402-S)

$30.99

$

In Stock, Qty 20+

0

6

Exmark 116-5175

USE 116-5175-S
(Superseded to 116-5175-S)

Note: Optional Equipment

$30.99

$

In Stock, Qty 20+

0

7

Exmark 142-6530

ASM-IDLER ARM W/BEARINGS

$89.99

$

Usually ships in 3-6 days

0

8

Exmark 116-6317

SPRING-EXTENSION

$27.99

$

In Stock, Qty 20+

0

9

Exmark 323-38

SCREW-HH

$11.99

$

In Stock, only 2 left!

0

10

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

11

Exmark 109-2872

SPACER-PULLEY

$22.99

$

In Stock, Qty 20+

0

12

Exmark 126-9196

IDLER-PULLEY, FLAT

$63.99

$

In Stock, Qty 20+

0

13

Exmark 126-9189

IDLER-PULLEY, FLAT 6.00X1.00

$61.99

$

In Stock, Qty 5

0

14

Exmark 126-9197

IDLER-PULLEY, FLAT 5.00X1

$63.99

$

In Stock, only 2 left!

0

15

Exmark 3231-44

SCREW-CARR

$2.99

$

In Stock, Qty 11

0

16

Exmark 116-5814-01

BAFFLE-DOGLEG, LZ-VT52

$62.99

$

Usually ships in 3-6 days

0

17

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, only 2 left!

0

19

Exmark 142-7025

Chute-Deck Discharge

$74.99

$

Usually ships in 3-6 days

0

20

Exmark 142-8544

Pin, Chute

$8.49

$

0

21

Exmark 142-7102

SHIELD, LT

$18.99

$

Usually ships in 3-6 days

0

22

Exmark 142-7103

SHIELD, RT

$18.99

$

Usually ships in 3-6 days

0

23

Exmark 109-6982

WIREFORM-COVER

$11.99

$

In Stock, Qty 5

0

25

Exmark 126-7443

USE 126-7443-SL
(Superseded to 126-7443-SL)

$169.99

$

In Stock, only 2 left!

0

26

Exmark 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

0

27

Exmark 3230-3

Bolt-Carriage 5/16-18 X 1 1/4

$1.49

$

In Stock, Qty 20+

0

28

Exmark 126-8043

SHIELD-DUST

$2.99

$

In Stock, Qty 20+

0

29

Exmark 126-9195

SHIELD-GUARD, DUST

$2.99

$

In Stock, only 1 left!

0

30

Exmark 116-3341

ASM-SPINDLE AND SEAL

$89.99

$

In Stock, Qty 16

0

31

Exmark 103-1330

GUARD-BEARING, TOP

$5.49

$

In Stock, only 2 left!

0

32

Exmark 103-2802

WASHER

$5.49

$

In Stock, Qty 20+

0

33

Exmark 116-7306

NUT-HEX

Note: Torque to 130-160 ft-lb

$2.99

$

In Stock, Qty 18

0

34

Exmark 103-3037

BUSHING,SPLINED

$23.99

$

In Stock, Qty 20+

0

35

Exmark 109-9220

SCREW,SEMS 1/2-20 X 2.19

Note: Torque to 50-60 ft-lb

$8.49

$

In Stock, Qty 20+

0

36

Exmark 103-8415

ROLLER-SCALP, ANTI

$26.99

$

In Stock, Qty 10

0

37

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

38

Exmark 116-8131

AXLE, ROLLER

$12.99

$

In Stock, Qty 20+

0

39

Exmark 116-9362

SCREW-HH 3/8-16 X 3 3/4 GR 8

$2.99

$

In Stock, Qty 20+

0

40

Exmark 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

41

Exmark 146-0943

Retainer, Chute

$1.49

$
