S 1024 (1696618-04) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Handles Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

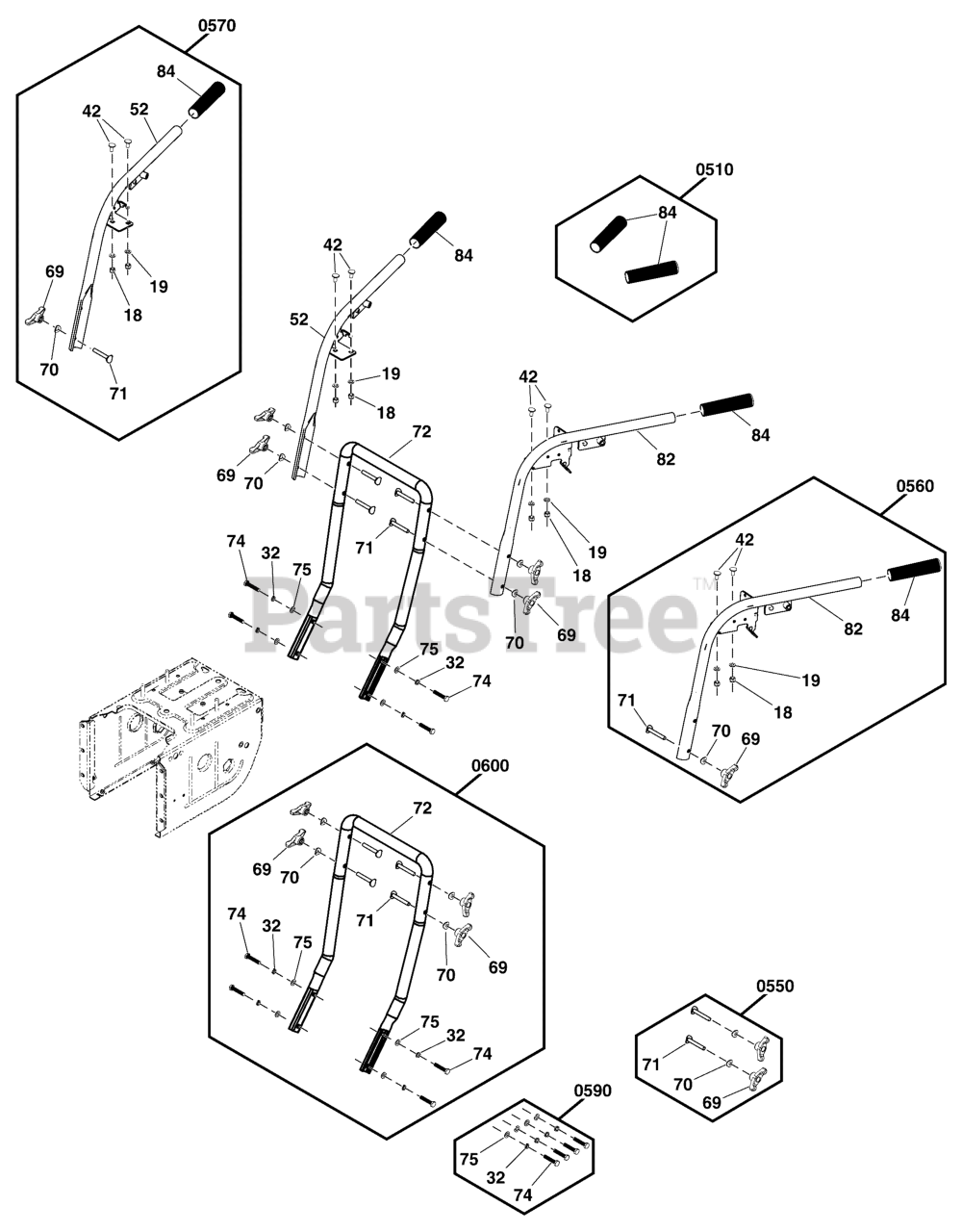

Handles Group Parts Diagram

  • Title

0510

Briggs & Stratton 84003831

KIT, Grip, Handle

Note: (Incl. Ref. No. 84)

$43.99

$

Usually ships in 2-12 days

0

84

GRIP, Hand

$

$

Not available

0550

Briggs & Stratton 707513

KIT, Wing Knob, Handle

Note: (Incl. Ref. Nos. 88, 89, 90)

$38.99

$

In Stock, only 4 left!

0

69

KNOB, Wing, M8

$

$

Not available

70

WASHER, M8, Curved

$

$

Not available

71

BOLT, Carriage, M8 X 55

$

$

Not available

0560

Briggs & Stratton 84003832

KIT, Upper Handle, Left

Note: (Incl. Ref. Nos. 18, 19, 42, 69, 70, 71, 82)

$53.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

42

BOLT, Carriage, M8 X 18

$

$

Not available

69

KNOB, Wing, M8

$

$

Not available

70

WASHER, M8, Curved

$

$

Not available

71

BOLT, Carriage, M8 X 55

$

$

Not available

82

HANDLE, Upper Left

$

$

Not available

84

GRIP, Hand

$

$

Not available

0570

Briggs & Stratton 84003830

KIT, Upper Handle, Right

Note: (Incl. Ref. Nos. 18, 19, 42, 52, 69, 70, 71)

$61.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

19

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

42

BOLT, Carriage, M8 X 18

$

$

Not available

52

HANDLE, Upper Right

$

$

Not available

69

KNOB, Wing, M8

$

$

Not available

70

WASHER, M8, Curved

$

$

Not available

71

BOLT, Carriage, M8 X 55

$

$

Not available

84

GRIP, Hand

$

$

Not available

0590

Briggs & Stratton 84003835

KIT, Lower Handle Hardware

Note: (Incl. Ref. Nos. 32, 74, 75)

$15.99

$

Usually ships in 2-12 days

0

32

WASHER, Lock, M8

$

$

Not available

74

SCREW, Hex Head, M8X20

$

$

Not available

75

WASHER, 8x22x2, Flat

$

$

Not available

0600

Briggs & Stratton 84003833

KIT, Lower Handle

Note: (Incl. Ref. Nos. 32, 69, 70, 71, 72, 74, 75)

$78.99

$

Usually ships in 2-12 days

0

32

WASHER, Lock, M8

$

$

Not available

69

KNOB, Wing, M8

$

$

Not available

70

WASHER, M8, Curved

$

$

Not available

71

BOLT, Carriage, M8 X 55

$

$

Not available

72

HANDLE, Lower

$

$

Not available

74

SCREW, Hex Head, M8X20

$

$

Not available

75

WASHER, 8x22x2, Flat

$

$

Not available
