S 1024 ES (1696937-02) - Murray 24" Snow Thrower, 9.5hp Auger Housing Group Parts Diagram

24" Snow Thrower, 9.5hp

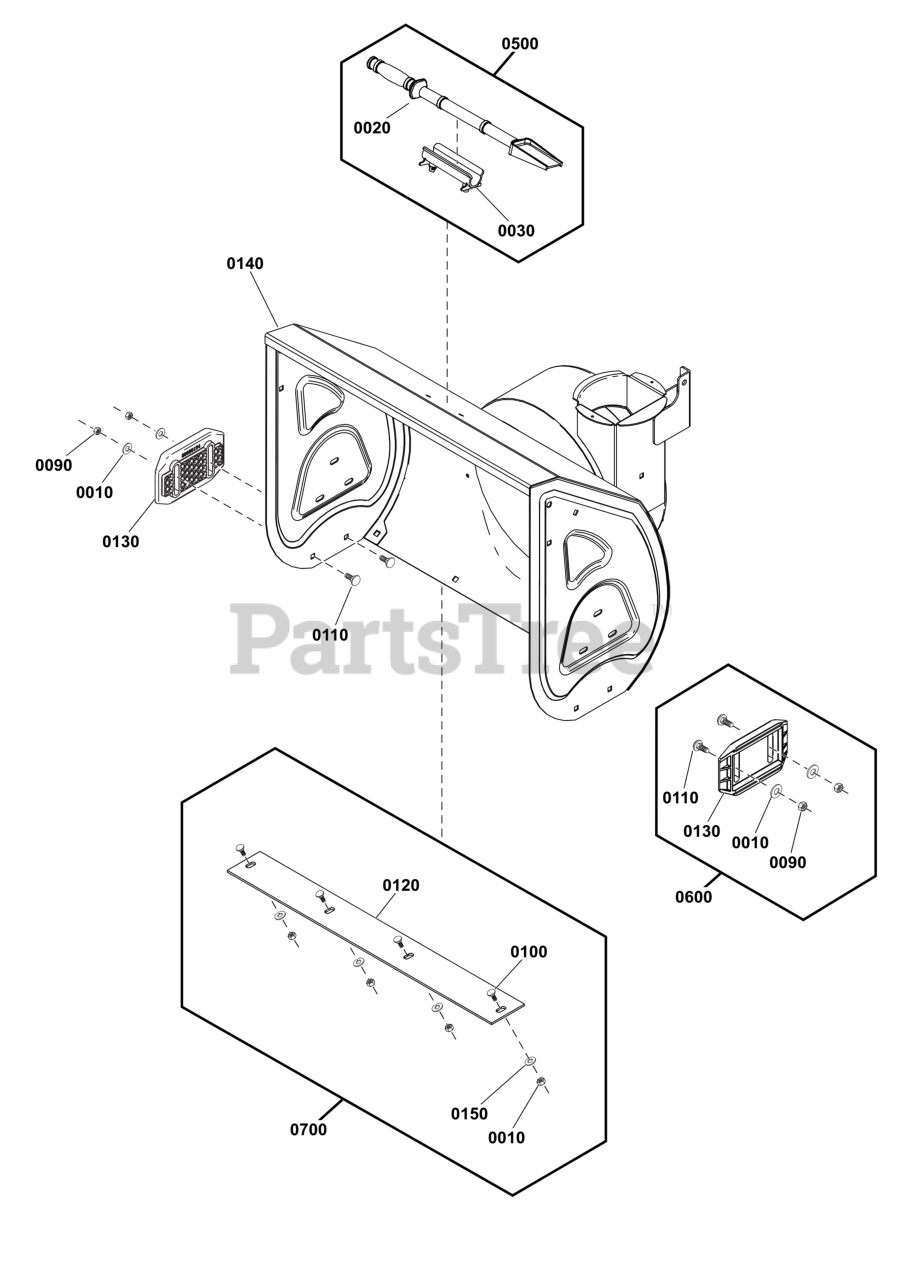

Auger Housing Group Parts Diagram

  • Title

0010

WASHER, 8x22x2, Flat

Note: ( Included with Ref. No. 0600 & 0700 )

$

$

Not available

0020

SHOVEL, Cleanout

Note: ( Included with Ref. No. 0500 )

$

$

Not available

0030

CLAMP, Cleanout

Note: ( Included with Ref. No. 0500 )

$

$

Not available

0090

NUT, Lock, M8

Note: ( Included with Ref. No. 0600 )

$

$

Not available

0100

BOLT, Carriage, M8 X 18

Note: ( Included with Ref. No. 0700 )

$

$

Not available

0110

BOLT, Carriage, M8 X 25

Note: ( Included with Ref. No. 0600 )

$

$

Not available

0120

BLADE, Scraper, 24"

Note: ( Included with Ref. No. 0700 )

$

$

Not available

0130

SHOE, Skid, Reversible

Note: ( Included with Ref. No. 0600 )

$

$

Not available

0140

AUGER HOUSING, 24", UNIV RED

Note: ( Refer to Note:* )

$

$

Not available

0150

WASHER, Flat, 8 X 16 X 1.2

Note: ( Included with Ref. No. 0700 )

$

$

Not available

0500

Briggs & Stratton 707549

KIT, CLEANOUT BRUSH STICK

Note: ( Incl. Ref. Nos. 0020, 0030 )

$30.99

$

Usually ships in 2-12 days

0

0600

Briggs & Stratton 84003710

KIT, SKID SHOE

Note: ( Incl. Ref. Nos. 0010, 0090, 0110, 0130 )

$48.99

$

In Stock, only 2 left!

0

0700

Briggs & Stratton 84003707

KIT, Scraper Bar

Note: ( Incl. Ref. Nos. 0010, 0100, 0120, 0150 )

$64.99

$

In Stock, only 3 left!

0
