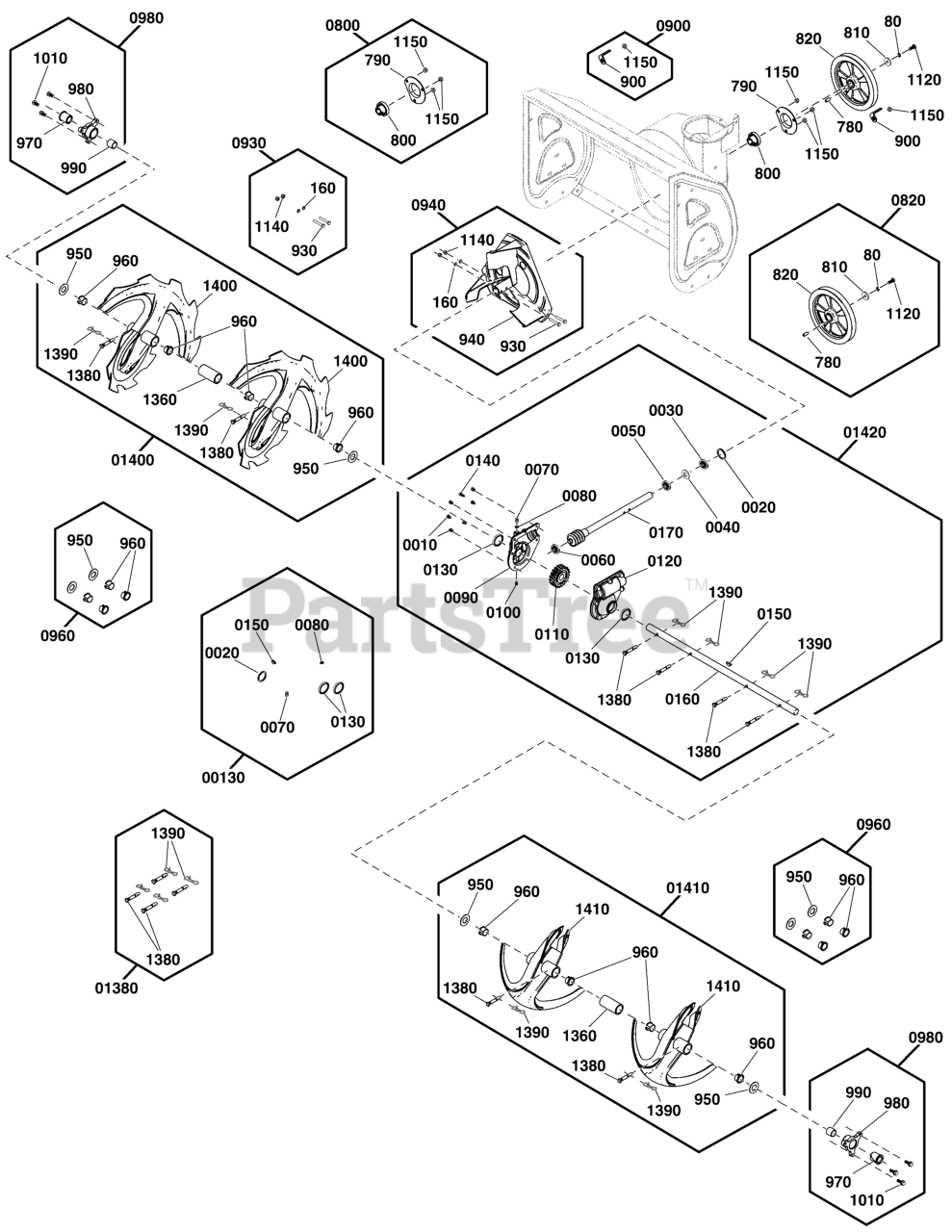

S 1024 MDS (1697157-00) - Briggs & Stratton 24" Snow Thrower, 9.5 Gross TP (2019) Auger Drive Group Parts Diagram

24" Snow Thrower, 9.5 Gross TP

Auger Drive Group Parts Diagram

  • Title

00130

Briggs & Stratton 84001647

KIT, Seal, Gearbox

Note: (Incl. Ref. Nos. 0020, 0070, 0080, 0130, 0150)

$7.49

$

Usually ships in 2-12 days

0

0020

SEAL, Oil

$

$

Not available

0070

BLADE, Scraper, 27"

$

$

Not available

0080

WASHER, Wave

$

$

Not available

0130

SEAL, Oil

$

$

Not available

0150

KEY, WOODRUFF

$

$

Not available

0800

Briggs & Stratton 707548

KIT, BEARING HARDWARE, AUGER PULLEY

Note: (Incl. Ref. Nos. 790, 800, 1150)

$25.99

$

In Stock, only 2 left!

0

790

RETAINER, Ball Bearing

$

$

Not available

800

BEARING, Ball

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

0820

Briggs & Stratton 770803

KIT, Auger Pulley

Note: (Incl. Ref. Nos. 80, 780, 810, 820, 1120)

$68.99

$

Usually ships in 2-12 days

0

80

WASHER, Lock, M8

$

$

Not available

780

KEY, Flat, 6 X 6 X 17

$

$

Not available

810

WASHER, Flat, 8 X 28 X 3

$

$

Not available

820

PULLEY

$

$

Not available

1120

SCREW, Hex Head, M8X20

$

$

Not available

0900

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 900, 1150)

$12.99

$

Usually ships in 2-12 days

0

900

GUIDE, Belt

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

0930

Briggs & Stratton 707758

KIT, SHEAR PIN, IMPELLER

Note: (Incl. Ref. Nos. 160, 930, 1140)

$15.99

$

Usually ships in 2-12 days

0

160

WASHER, 6x12x.7, Flat

$

$

Not available

930

BOLT, Hex, M6 X 38

$

$

Not available

1140

NUT, Lock, M6

$

$

Not available

0940

Briggs & Stratton 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 160, 930, 940, 1140)

$99.99

$

In Stock, only 2 left!

0

160

WASHER, 6x12x.7, Flat

$

$

Not available

930

BOLT, Hex, M6 X 38

$

$

Not available

940

IMPELLER

$

$

Not available

1140

NUT, Lock, M6

$

$

Not available

0960

Briggs & Stratton 84003703

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 950, 960)

$6.49

$

Usually ships in 2-12 days

0

950

WASHER, Flat

$

$

Not available

960

BEARING, Auger Shaft

$

$

Not available

0980

Briggs & Stratton 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 970, 980, 990, 1010)

$50.99

$

Usually ships in 2-12 days

0

970

BEARING, Auger Shaft

$

$

Not available

980

RETAINER, Auger Shaft

$

$

Not available

990

BEARING, Sleeve

$

$

Not available

1010

SCREW, Hex Head, M8 X 16

$

$

Not available

01380

Briggs & Stratton 84003702

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 1380, 1390)

$10.99

$

In Stock, only 2 left!

0

1380

PIN, Shear

$

$

Not available

1390

PIN, Cotter

$

$

Not available

01400

Briggs & Stratton 84003868

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 950, 960, 1360, 1380, 1390, 1400)

$148.99

$

In Stock, only 1 left!

0

950

WASHER, Flat

$

$

Not available

960

BEARING, Auger Shaft

$

$

Not available

1360

SLEEVE, Auger Shaft

$

$

Not available

1380

PIN, Shear

$

$

Not available

1390

PIN, Cotter

$

$

Not available

1400

AUGER, 24", Right, Black

$

$

Not available

01410

Briggs & Stratton 84003701

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 950, 960, 1360, 1380, 1390, 1410)

$148.99

$

Usually ships in 2-12 days

0

950

WASHER, Flat

$

$

Not available

960

BEARING, Auger Shaft

$

$

Not available

1360

SLEEVE, Auger Shaft

$

$

Not available

1380

PIN, Shear

$

$

Not available

1390

PIN, Cotter

$

$

Not available

1410

AUGER, 24", Left, Black

$

$

Not available

01420

Briggs & Stratton 84004789

KIT, Gearbox, Auger

Note: (Incl. Ref. Nos. 0010, 0020, 0030, 0040, 0050, 0060, 0070, 0080, 0090, 0100, 0110, 0120, 0130, 0140, 0150, 0160, 0170, 1380, 1390)

$258.99

$

Usually ships in 2-12 days

0

0010

SCREW, Hex Head, M6 X 20

$

$

Not available

0020

SEAL, Oil

$

$

Not available

0030

BEARING

$

$

Not available

0040

WASHER, Flat

$

$

Not available

0050

BEARING

$

$

Not available

0060

BEARING

$

$

Not available

0070

ZERK, Grease Fitting

$

$

Not available

0080

WASHER, Wave

$

$

Not available

0090

GEAR CASE, Right

$

$

Not available

0100

BOLT, Phillips Head, M5 X 10

$

$

Not available

0110

GEAR, Worm

$

$

Not available

0120

GEAR CASE, Left

$

$

Not available

0130

SEAL, Oil

$

$

Not available

0140

BOLT, Hex, M6 X 25

$

$

Not available

0150

KEY, WOODRUFF

$

$

Not available

0160

SHAFT, Auger Out

$

$

Not available

0170

SHAFT, Impeller Wormgear

$

$

Not available

1380

PIN, Shear

$

$

Not available

1390

PIN, Cotter

$

$

Not available
