24" Snow Thrower, 9.5 Gross TP

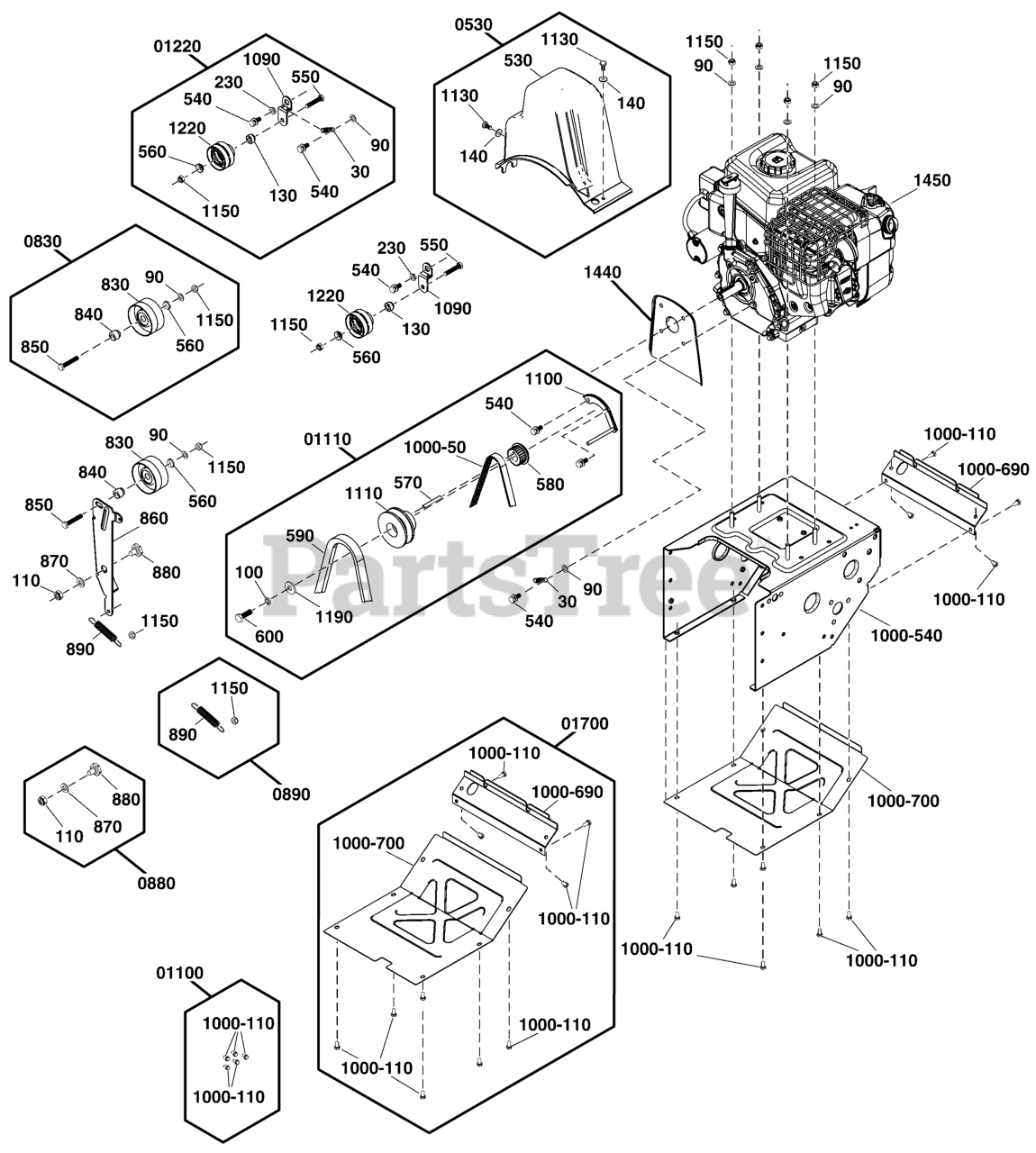

Engine & Frame Group Parts Diagram

  • Title

860

Briggs & Stratton 770804

IDLER, Auger

$40.99

$

Usually ships in 2-12 days

0

1000-540

MOTOR BOX ASSEMBLY, Cont. Charcoal

Note: (Refer to Note: **)

$

$

Not available

1440

Briggs & Stratton 1688080

KIT, WATER SHIELD, 208CC

$32.99

$

Usually ships in 2-12 days

0

1450

Briggs & Stratton 13A137-0019-F1

*ENGINE, Briggs & Stratton

Note: (Engine Model: 13A137-0019-F1) (Refer to Note: *)

$

$

Currently unavailable

0530

Briggs & Stratton 770791

KIT, Belt Cover

Note: (Incl. Ref. Nos. 140, 530, 1130)

$50.99

$

Usually ships in 2-12 days

0

140

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

530

COVER, Belt

$

$

Not available

1130

SCREW, Hex Head, M6 X 12

$

$

Not available

0830

Briggs & Stratton 770807

KIT, Idler Pulley, Tension Plate

Note: (Incl. Ref. Nos. 90, 560, 830, 840, 850, 1150)

$37.99

$

Usually ships in 2-12 days

0

90

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

560

SPACER, Idler Pulley

$

$

Not available

830

PULLEY, Idler

$

$

Not available

840

SPACER, Sleeve, Idler Pulley

$

$

Not available

850

SCREW, Hex Head, M8 X 45

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

0880

Briggs & Stratton 707565

KIT-HARDWARE, IDLER BRACKET

Note: (Incl. Ref. Nos. 110, 870, 880)

$8.99

$

Usually ships in 2-12 days

0

110

NUT, Lock, M10

$

$

Not available

870

WASHER, Flat, 10 X 20 X 2

$

$

Not available

880

SCREW, Hex Head, M10 X 13

$

$

Not available

0890

Briggs & Stratton 770806

SPRING, Idler Pulley

Note: (Incl. Ref. Nos. 890, 1150)

$4.49

$

In Stock, only 1 left!

0

890

SPRING, Idler

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

01100

Briggs & Stratton 771904

KIT, Hardware

Note: (Incl. Ref. No. 1000-110)

$6.99

$

Usually ships in 2-12 days

0

1000-110

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

01110

Briggs & Stratton 770816

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 100, 540, 570, 580, 590, 600, 1000-50, 1100, 1110, 1190)

$152.99

$

Usually ships in 2-12 days

0

100

WASHER, M10, Split Lock

$

$

Not available

540

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

570

Briggs & Stratton 84004762

KEY, Flat, 5 X 4.7 X 50

$3.49

$

Usually ships in 2-12 days

0

580

PULLEY, Drive

$

$

Not available

590

Briggs & Stratton 770796

BELT, Auger Drive

$80.99

$

In Stock, Qty 7

0

600

SCREW, Hex Head, M10 X 30

$

$

Not available

1000-50

Briggs & Stratton 707585

BELT, Traction Drive

$22.99

$

Usually ships in 2-12 days

0

1100

GUIDE, Belt

$

$

Not available

1110

PULLEY, Auger

$

$

Not available

1190

SPACER

$

$

Not available

01220

Briggs & Stratton 770795

KIT, Idler Pulley, Traction Drive

Note: (Incl. Ref. Nos. 30, 90, 130, 230, 540, 550, 560, 1090, 1150, 1220)

$46.99

$

Usually ships in 2-12 days

0

30

SPRING, Idler

$

$

Not available

90

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

130

SPACER, Idler Pulley

$

$

Not available

230

SPACER, Idler Plate, Small

$

$

Not available

540

SCREW, Hex Flange Head, M8 X 20

$

$

Not available

550

SCREW, Hex Head, M8 X 40

$

$

Not available

560

SPACER, Idler Pulley

$

$

Not available

1090

BRACKET, Idler

$

$

Not available

1150

NUT, Lock, M8

$

$

Not available

1220

PULLEY, Idler

$

$

Not available

01700

Briggs & Stratton 770819

KIT, Bottom Cover

Note: (Incl. Ref. Nos. 1000-110, 1000-690, 1000-700)

$70.99

$

Usually ships in 2-12 days

0

1000-110

SCREW, Hex Head W/ Flat Washer, M6 X 12

$

$

Not available

1000-690

COVER, Back

$

$

Not available

1000-700

COVER, Bottom

$

$

Not available

--

Briggs & Stratton 6219MA

CORD, Electric, 10FT. 110V

Note: ( Not Illustrated )

$40.99

$

In Stock, only 3 left!

0
