S 120 (5901862) - Snapper Pro S120 Series 61" Zero-Turn Mower, 25hp Briggs & Stratton Seat Mount and Floor Group S/N: 4000875332 and Above Parts Diagram

S120 Series 61" Zero-Turn Mower, 25hp Briggs & Stratton

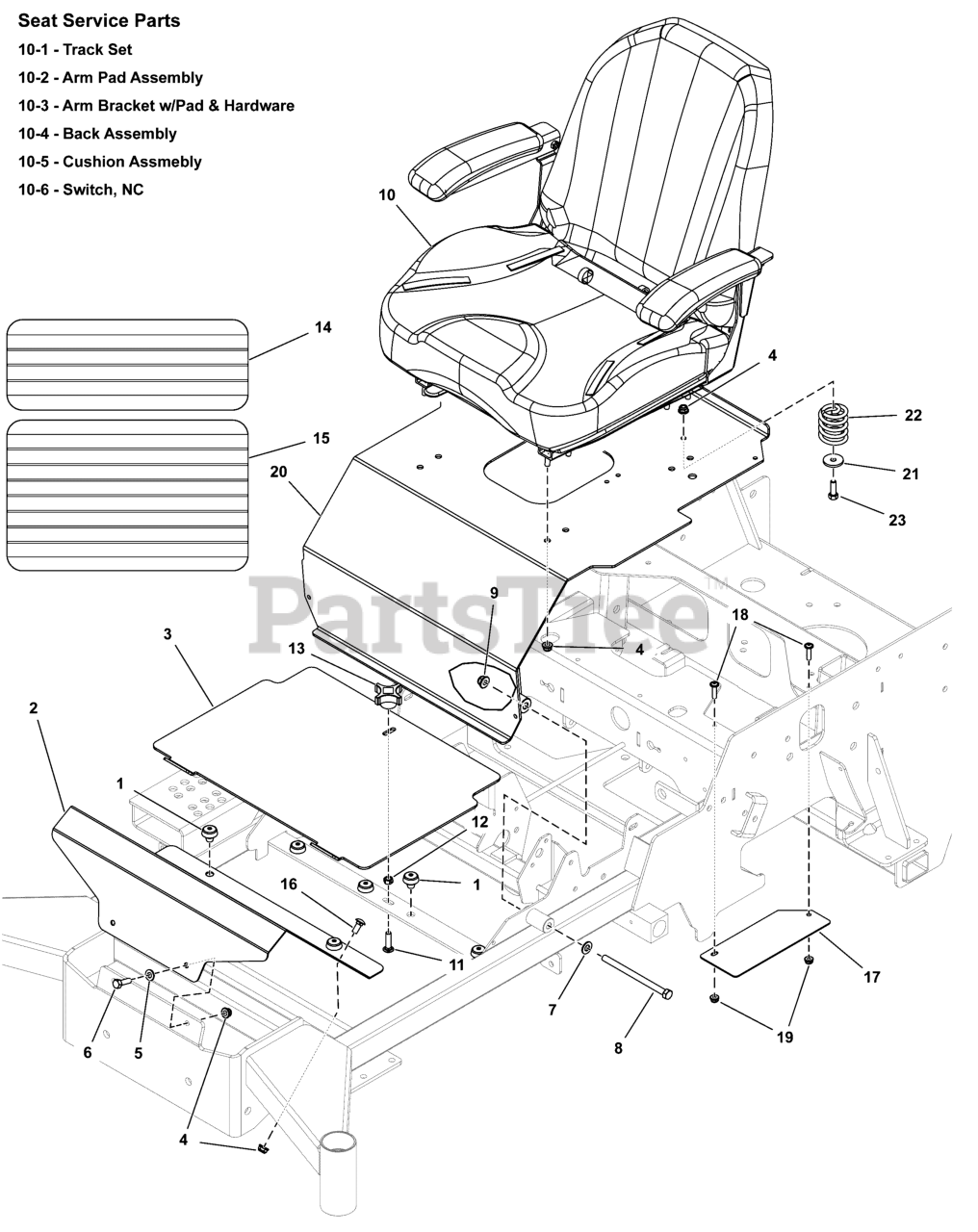

Seat Mount and Floor Group S/N: 4000875332 and Above Parts Diagram

  • Title

1

Snapper Pro 197546

MNT, VBRTN, RBBR
(Superseded to 197546GS)

$8.49

$

In Stock, Qty 5

0

2

Snapper Pro 5410898D

PLATE, FLOOR RIGID, S125XT - RED
(Superseded to 5410898DYP)

$102.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5410296D

PLATE, FLOOR, REMOVABLE, S125XT - RED
(Superseded to 5410296DYP)

$94.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1" GRD5 YZ
(Superseded to 5025011X8FS)

$3.99

$

In Stock, Qty 14

0

7

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025013X44

BOLT, 3/8-16 X 5-1/2" GD5 CZ
(Superseded to 5025013X44SM)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5108190

SEAT, 907, W/ARM REST & SWITCH, NO BEAD
(Superseded to 84003662)

$796.99

$

Usually ships in 2-12 days

0

10-1

Snapper Pro 5104741X1

4" SL TRACK SET - 9" FLAT - W/HDWR

$154.99

$

Usually ships in 2-12 days

0

10-2

Snapper Pro 5108190X1

ARM PAD ASSEMBLY

$70.99

$

Usually ships in 2-12 days

0

10-3

Snapper Pro 5108190X2

ARM BRACKET W/PAD & HARDWARE

$240.99

$

Usually ships in 2-12 days

0

10-4

Snapper Pro 5108190X3

BACK ASSEMBLY

$284.99

$

Usually ships in 2-12 days

0

10-5

Snapper Pro 5108190X4

CUSHION ASSEMBLY

$302.99

$

Usually ships in 2-12 days

0

10-6

Snapper Pro 7023354

SWITCH, SEAT
(Superseded to 7023354YP)

$12.99

$

In Stock, Qty 20+

0

11

Snapper Pro 5025145X10

BOLT, 5/16-18 X 1-1/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X10YP)

$3.49

$

In Stock, only 2 left!

0

12

Snapper Pro 80003675

NUT, 5/16-1/8, HEX, CNTR LK, ZINC PHOS/OIL
(Superseded to 703164)

$3.49

$

In Stock, Qty 20+

0

13

Snapper Pro 1670578

KNOB-INT THR .312-18 4-ARM 2.12WD 1.06LG
(Superseded to 1670578SM)

$14.99

$

In Stock, only 4 left!

0

14

Snapper Pro 5101374

SAFETY WALK, FLOOR REST, 16.00 X 6.00
(Superseded to 5101374YP)

$19.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5101333

SAFETY WALK, FLOOR PLATE, S50X, 10X17.13
(Superseded to 5101333YP)

$39.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE, GD5, CZ
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

17

Snapper Pro 5415847A

PLATE, SEAT BELT GUARD - S125XT - BLK

$

$

Not available

18

Snapper Pro 5106757

SCREW, FLANGE, ALLEN HD, 1/4-20 X .75 SS
(Superseded to 84003668)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

20

Snapper Pro 5601149

ASSM, SEAT PLATE W/DECALS, S125XT (2019)

$314.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 7078299

SPRING, SEAT SUPPORT
(Superseded to 7078299SM)

$15.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0
