S 120 (5901865) - Snapper Pro S120 Series 52" Zero-Turn Mower, 24hp Kawasaki Parking Brake Group Parts Diagram

S120 Series 52" Zero-Turn Mower, 24hp Kawasaki

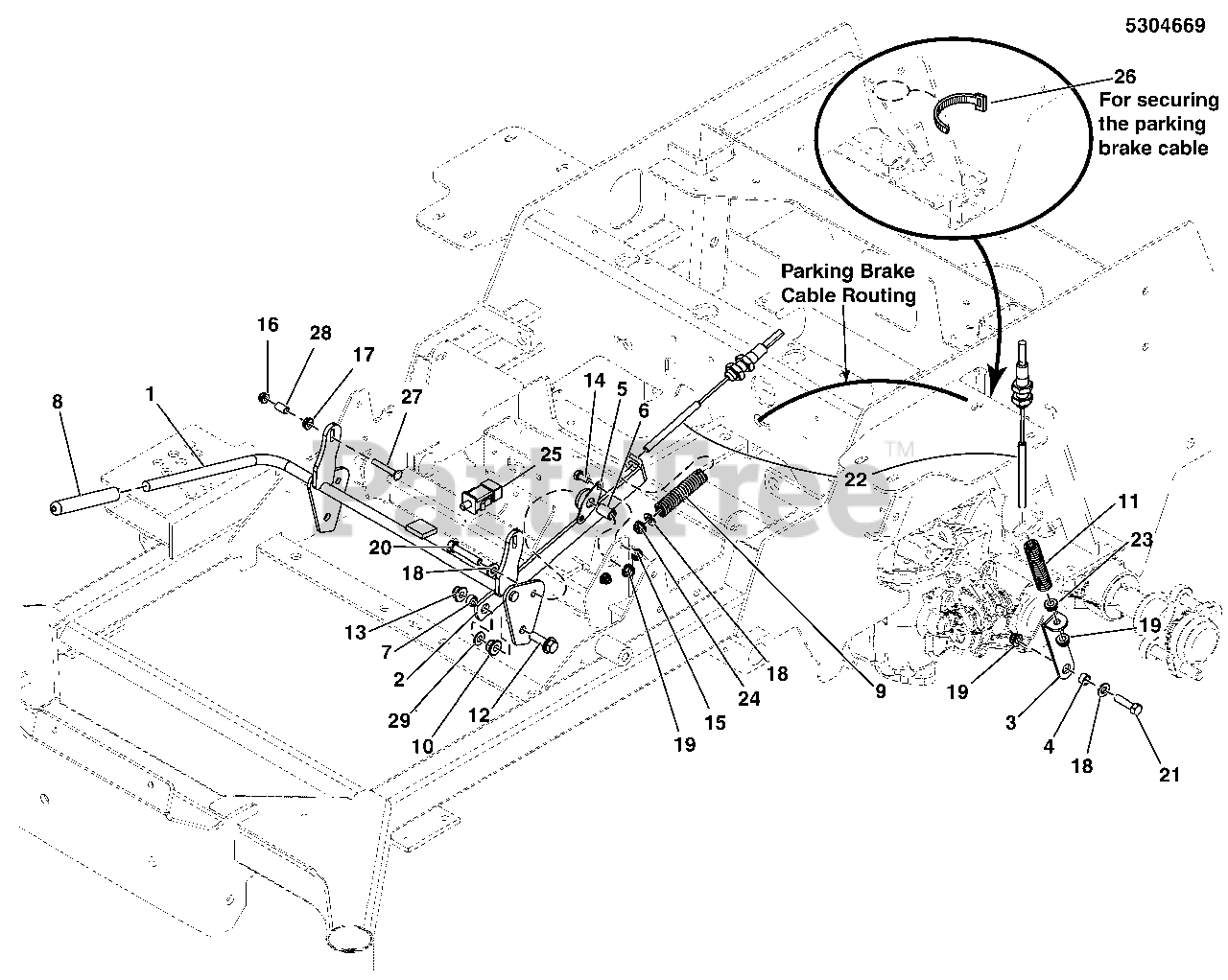

Parking Brake Group Parts Diagram

  • Title

1

Snapper Pro 5415910A

WELD, BRAKE SHAFT, 600/700/125/560 - BLK

$69.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5410328A

LINK, BRAKE LOCK, IS700 - BLK

$13.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5410294A

LINK, LOWER BRAKE, IS700 - BLK

$8.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5102463

SPACER, .33 X .50 X .25, PM, CZ
(Superseded to 5102463YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101123

BEARING, 1/2 FLANGED, PLASTIC BALL
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5103660

SPACER, .32 X .50 X .83, CZ
(Superseded to 5103660YP)

$4.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5021880

GRIP, FOAM, .475 X 4.35 X .095
(Superseded to 5021880SM)

$5.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5023242

SPRING-COMP, .496ID X 3.00LG X .112WR
(Superseded to 5023242SM)

$6.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5025128

NUT, 3/8-16 HEX SERRATED FLANGE
(Superseded to 5025128SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5021494

SPRING-COMP, .600ID X 5.50LG X .080WR
(Superseded to 5021494SM)

$13.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025390X12

BOLT, 3/8-16 X 1-1/2, FLANGE, GD 5, CZ
(Superseded to 5025390X12YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

14

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

15

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025095

NUT, 1/4-20 HEX NYLON LOCK
(Superseded to 5025095SM)

$3.49

$

In Stock, Qty 11

0

17

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

19

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 CZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025011X9

BOLT, 5/16-18 X 1-1/8 GD5 CZ
(Superseded to 5025011X9SM)

$3.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5104276

CABLE,PARKING BRAKE, 31" (787.9MM)
(Superseded to 5104276YP)

$62.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025032

NUT, 5/16-18 HEX
(Superseded to 5025032SM)

$3.49

$

In Stock, only 1 left!

0

24

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

25

SEE ELECTRICAL GROUP

$

$

Not available

26

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

27

Snapper Pro 80003564

BOLT, 1/4-20 X 1.500, GR5, SQ, ZINC/CLEA
(Superseded to 704214)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5041483

SPACER, .25 X .38 X .63
(Superseded to 5041483YP)

$5.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025337

WASHER, 5/16 USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0
