S 1224 (1697355-01) - Briggs & Stratton 24" Snow Thrower, 11.5 Gross TP (2020) Auger Drive Group Parts Diagram

24" Snow Thrower, 11.5 Gross TP

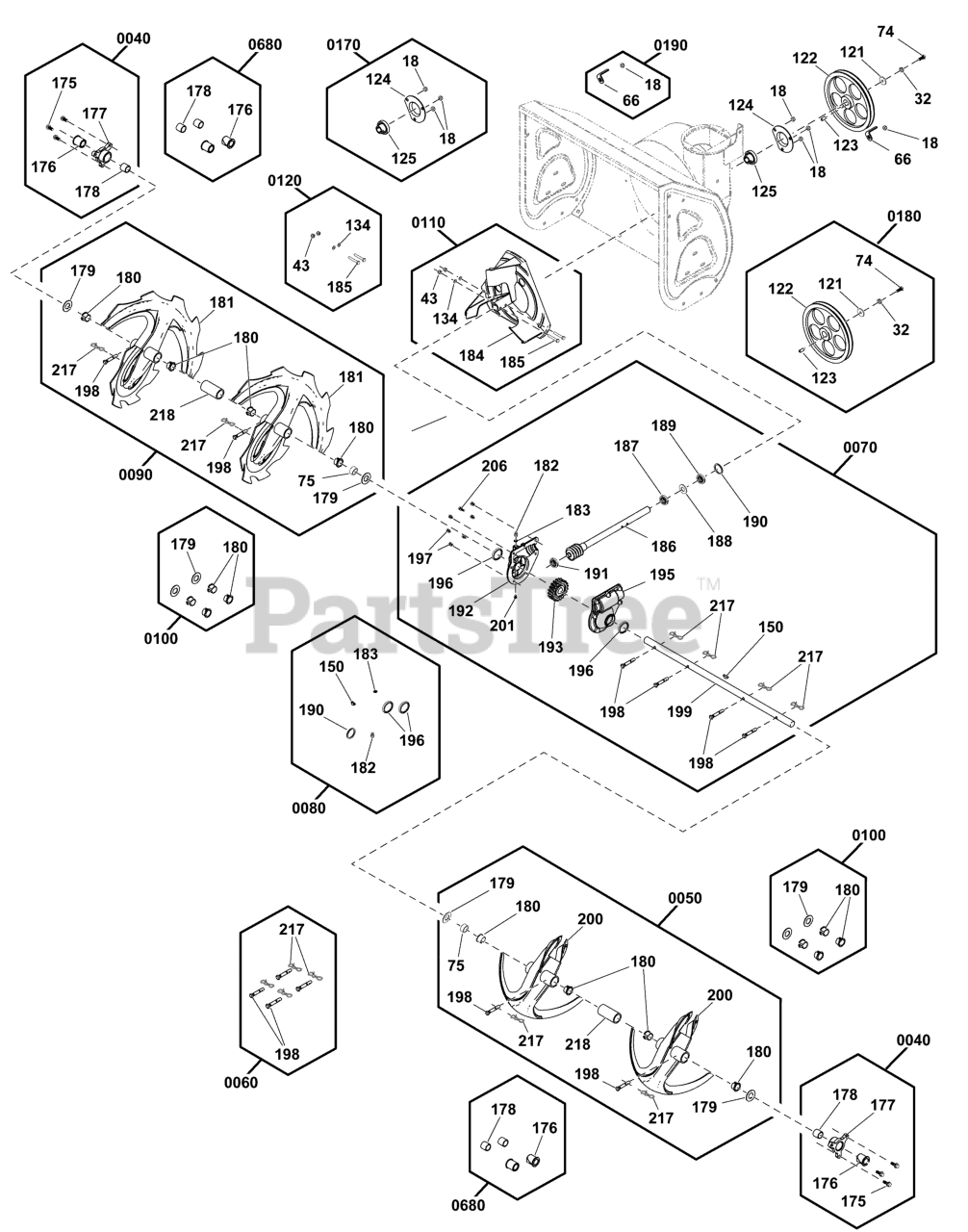

Auger Drive Group Parts Diagram

  • Title

0040

Briggs & Stratton 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 175, 176, 177, 178)

$50.99

$

Usually ships in 2-12 days

0

175

SCREW, Hex Head, M8 X 16

$

$

Not available

176

BEARING, Auger Shaft

$

$

Not available

177

RETAINER, Auger Shaft

$

$

Not available

178

BEARING, Sleeve

$

$

Not available

0050

Briggs & Stratton 84003701

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 179, 180, 198, 200, 217, 218)

$148.99

$

Usually ships in 2-12 days

0

75

SLEEVE, Auger Shaft

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

198

PIN, Shear

$

$

Not available

200

AUGER, 24", Left, Black

$

$

Not available

217

PIN, Cotter

$

$

Not available

218

SLEEVE, Auger Shaft

$

$

Not available

0060

Briggs & Stratton 84003702

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 198, 217)

$10.99

$

In Stock, only 2 left!

0

198

PIN, Shear

$

$

Not available

217

PIN, Cotter

$

$

Not available

0070

Briggs & Stratton 84003700

KIT, GEARBOX

Note: (Incl. Ref. Nos. 150, 182, 183, 186, 187, 188, 189, 190, 191, 192, 193, 195, 196, 197, 198, 199, 201, 206, 217)

$287.99

$

Usually ships in 2-12 days

0

150

KEY, WOODRUFF

$

$

Not available

182

ZERK, Grease Fitting

$

$

Not available

183

WASHER, Wave

$

$

Not available

186

SHAFT, Impeller, Wormgear

$

$

Not available

187

BEARING

$

$

Not available

188

WASHER, Flat

$

$

Not available

189

BEARING

$

$

Not available

190

SEAL, Oil

$

$

Not available

191

BEARING

$

$

Not available

192

GEAR CASE, Right

$

$

Not available

193

GEAR, Worm

$

$

Not available

195

GEAR CASE, Left

$

$

Not available

196

SEAL, Oil

$

$

Not available

197

SCREW, Hex Head, M6 X 20

$

$

Not available

198

PIN, Shear

$

$

Not available

199

SHAFT, Auger Out

$

$

Not available

201

BOLT, Phillips Head, M5 X 10

$

$

Not available

206

BOLT, Hex, M6 X 25

$

$

Not available

217

PIN, Cotter

$

$

Not available

0080

Briggs & Stratton 84001647

KIT-SEAL, GEAR BOX

Note: (Incl. Ref. Nos. 150, 182, 183, 190, 196)

$7.49

$

Usually ships in 2-12 days

0

150

KEY, WOODRUFF

$

$

Not available

182

ZERK, Grease Fitting

$

$

Not available

183

WASHER, Wave

$

$

Not available

190

SEAL, Oil

$

$

Not available

196

SEAL, Oil

$

$

Not available

0090

Briggs & Stratton 84003868

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 179, 180, 181, 198, 217)

$148.99

$

In Stock, only 1 left!

0

75

SLEEVE, Auger Shaft

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

181

AUGER, 24", Right, Black

$

$

Not available

198

PIN, Shear

$

$

Not available

217

PIN, Cotter

$

$

Not available

218

SLEEVE, Auger Shaft

$

$

Not available

0100

Briggs & Stratton 84003703

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 179, 180)

$6.49

$

Usually ships in 2-12 days

0

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

0110

Briggs & Stratton 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 43, 134, 184, 185)

$99.99

$

In Stock, only 2 left!

0

43

NUT, Lock, M6

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

184

IMPELLER

$

$

Not available

185

BOLT, Hex, M6 X 38

$

$

Not available

0120

Briggs & Stratton 707561

KIT,Shear Pin, Impeller

Note: (Incl. Ref. Nos. 18, 134, 185)

$16.99

$

Usually ships in 2-12 days

0

43

NUT, Lock, M6

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

185

BOLT, Hex, M6 X 38

$

$

Not available

0170

Briggs & Stratton 770800

KIT, Bearing Hardware, Auger Pulley

Note: (Incl. Ref. Nos. 18, 124, 125)

$31.99

$

In Stock, only 2 left!

0

18

NUT, Lock, M8

$

$

Not available

124

RETAINER, Ball Bearing

$

$

Not available

125

BEARING, Ball

$

$

Not available

0180

Briggs & Stratton 707823

KIT, AUGER PULLEY

Note: (Incl. Ref. Nos. 32, 74, 121, 122, 123)

$42.99

$

Usually ships in 2-12 days

0

32

WASHER, Lock, M8

$

$

Not available

74

SCREW, Hex Head, M8X20

$

$

Not available

121

WASHER, Flat, 8 X 28 X 3

$

$

Not available

122

PULLEY, Driven

$

$

Not available

123

KEY, Flat, 6 X 6 X 17

$

$

Not available

0190

Briggs & Stratton 707547

KIT, BELT GUIDE, AUGER

Note: (Incl. Ref. Nos. 18, 66)

$12.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

66

GUIDE, Belt

$

$

Not available

0680

Briggs & Stratton 707552

KIT, Bearing, Mounting Plate

Note: (Incl. Ref. Nos. 176, 178)

$31.99

$

Usually ships in 2-12 days

0

176

BEARING, Auger Shaft

$

$

Not available

178

BEARING, Sleeve

$

$

Not available
