S 1227 (1696619-05) - Briggs & Stratton 27" Snow Thrower, 11.5 Gross TP (2019) Auger Housing Group Parts Diagram

27" Snow Thrower, 11.5 Gross TP

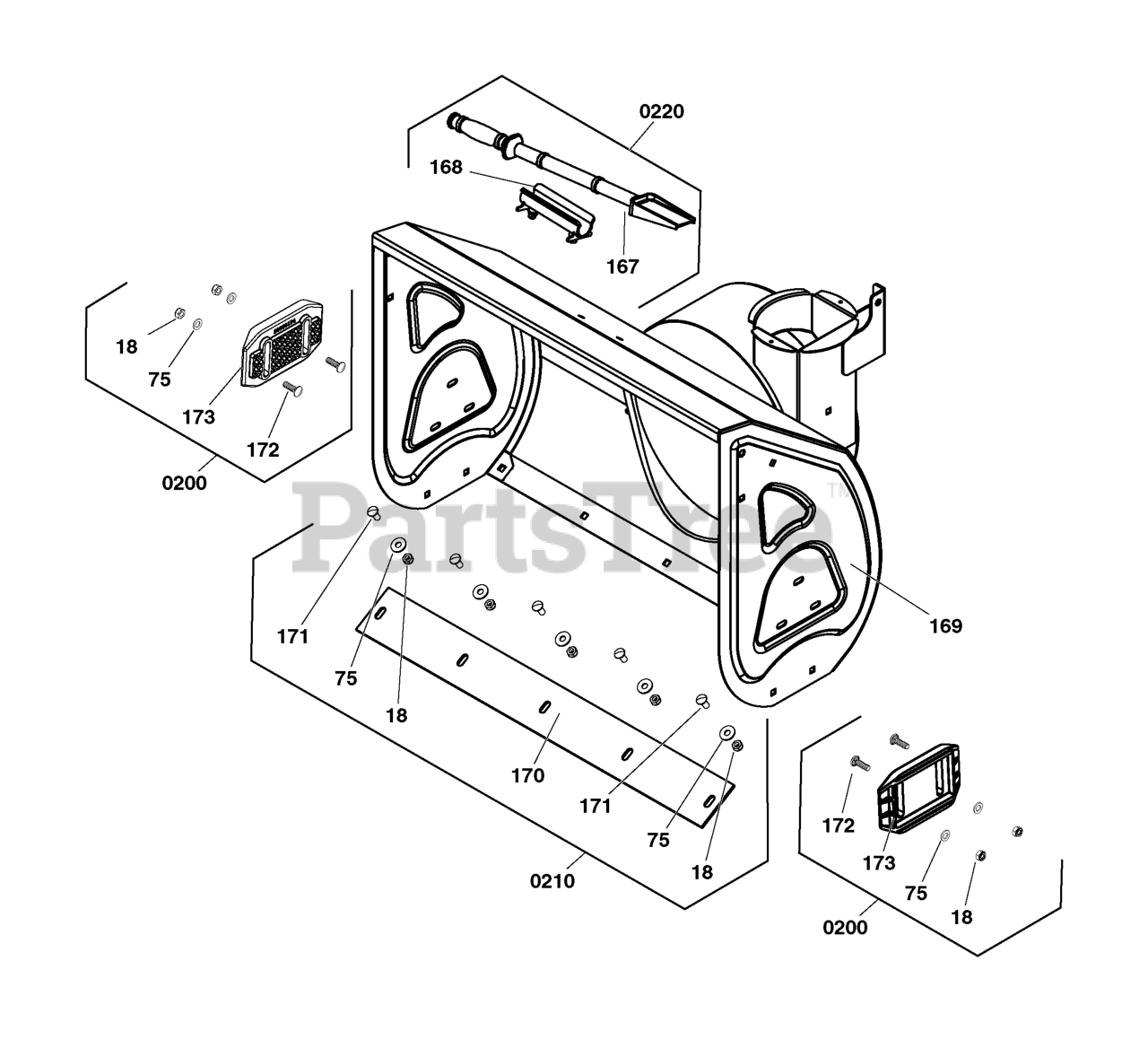

Auger Housing Group Parts Diagram

  • Title

169

HOUSING, Auger, 27"

Note: (Refer to Note:*)

$

$

Not available

0200

Briggs & Stratton 84003710

KIT, Skid Shoe

Note: (Incl. Ref. Nos. 18, 75, 172, 173)

$48.99

$

In Stock, only 2 left!

0

18

NUT, Lock, M8

$

$

Not available

75

WASHER, 8x22x2, Flat

$

$

Not available

172

BOLT, Carriage, M8 X 25

$

$

Not available

173

SHOE, Skid, Reversible

$

$

Not available

0210

Briggs & Stratton 84003859

KIT, Scraper Bar

Note: (Incl. Ref. Nos. 18, 75, 170, 171)

$55.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

75

WASHER, 8x22x2, Flat

$

$

Not available

170

BLADE, Scraper, 27"

$

$

Not available

171

BOLT, Carriage, M8 X 18

$

$

Not available

0220

Briggs & Stratton 707549

KIT, CLEANOUT BRUSH STICK

Note: (Incl. Ref. Nos. 167, 168)

$30.99

$

Usually ships in 2-12 days

0

167

SHOVEL, Cleanout

$

$

Not available

168

CLAMP, Cleanout

$

$

Not available
