S 1228 (1697331-00) - Briggs & Stratton 28" Snow Thrower, 11.5 Gross TP (2020) Discharge Chute Group Parts Diagram

28" Snow Thrower, 11.5 Gross TP

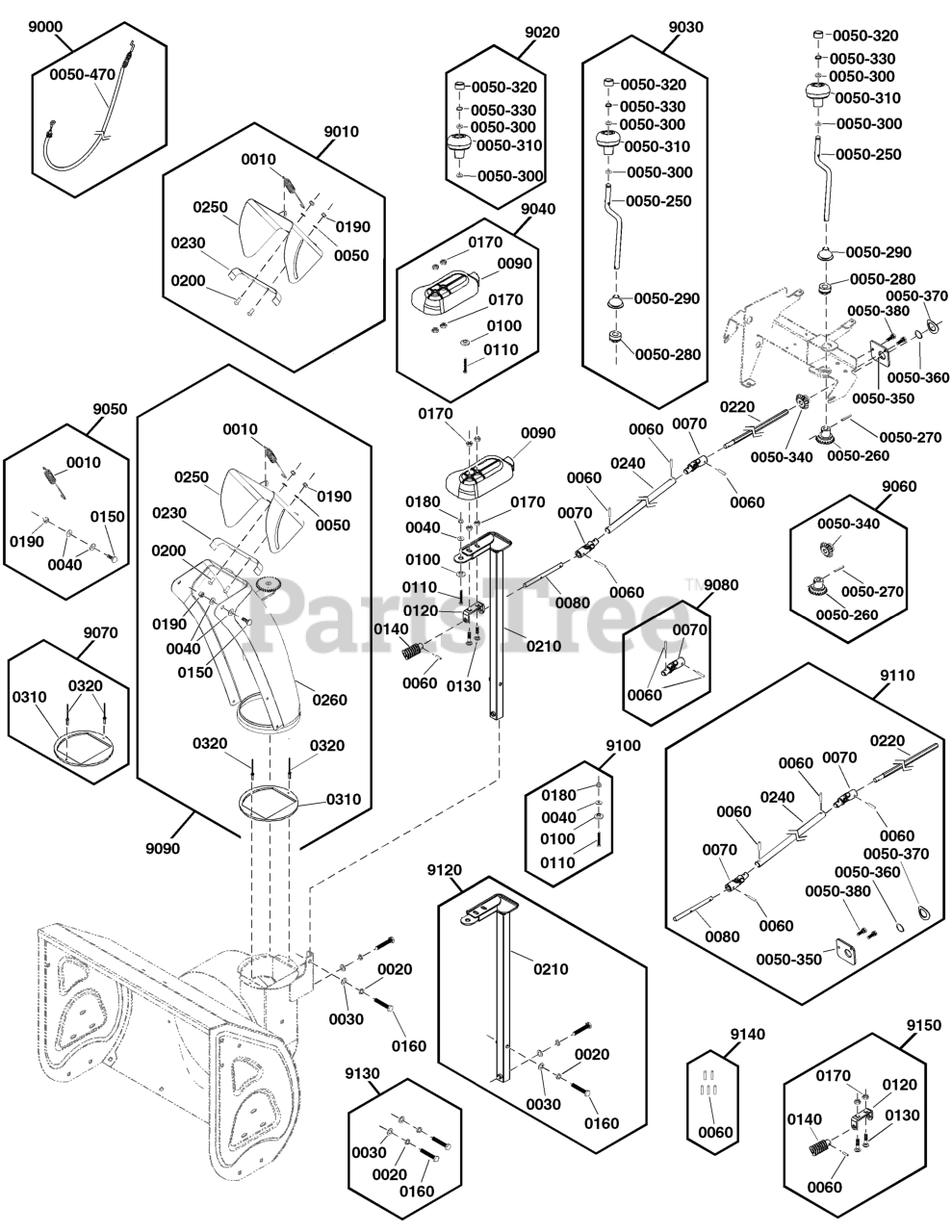

Discharge Chute Group Parts Diagram

  • Title

9000

Murray 771734

KIT, Cable-Chute Deflector

Note: (Incl. Ref. No. 0050-470)

$39.99

$

In Stock, Qty 8

0

0050-470

CABLE, Deflector Control

$

$

Not available

9010

Murray 84003714

KIT, Chute Deflector

Note: (Incl. Ref. Nos. 0010, 0050, 0190, 0200, 0230, 0250)

$42.99

$

Usually ships in 2-12 days

0

0010

SPRING, Extension

$

$

Not available

0050

WASHER, 6x12x.7, Flat

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

0200

BOLT, Button Head Socket, M6 X 13

$

$

Not available

0230

GASKET, Chute Deflector

$

$

Not available

0250

DEFLECTOR, Chute

$

$

Not available

9020

Murray 707502

KIT, Chute Knob

Note: (Incl. Ref. Nos. 0050-300, 0050-310, 0050-320, 0050-330)

$12.99

$

Usually ships in 2-12 days

0

0050-300

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0050-310

KNOB, Chute Rotator

$

$

Not available

0050-320

KNOB, Cover

$

$

Not available

0050-330

RING, External Retaining, 10

$

$

Not available

9030

Murray 707503

KIT, Chute Rotation

Note: (Incl. Ref. Nos. 0050-250, 0050-280, 0050-290, 0050-300, 0050-310, 0050-320, 0050-330)

$30.99

$

In Stock, only 4 left!

0

0050-250

ROD, Chute Rotation

$

$

Not available

0050-280

BUSHING, Rotation Rod

$

$

Not available

0050-290

BUSHING, Chute Rotation

$

$

Not available

0050-300

WASHER, Flat, 10 X 20 X 1

$

$

Not available

0050-310

KNOB, Chute Rotator

$

$

Not available

0050-320

KNOB, Cover

$

$

Not available

0050-330

RING, External Retaining, 10

$

$

Not available

9040

Murray 707544

KIT, Cover, Chute Rotation

Note: (Incl. Ref. Nos. 0090, 0100, 0110, 0170)

$36.99

$

Usually ships in 2-12 days

0

0090

COVER, Chute Rotation

$

$

Not available

0100

SPACER, Chute Rotation Bracket

$

$

Not available

0110

SCREW, Hex Head, M6 X 45

$

$

Not available

0170

NUT, Hex Flange Head, M8

$

$

Not available

9050

Murray 707563

KIT, Spring, Chute

Note: (Incl. Ref. Nos. 0010, 0040, 0150, 0190)

$10.99

$

Usually ships in 2-12 days

0

0010

SPRING, Extension

$

$

Not available

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0150

SCREW, Shoulder, M6 X 10

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

9060

Murray 770774

KIT, Bevel Gear, Chute Rotation

Note: (Incl. Ref. Nos. 0050-260, 0050-270, 0050-340)

$21.99

$

Usually ships in 2-12 days

0

0050-260

GEAR, Bevel

$

$

Not available

0050-270

PIN, Spring, 4 X 28

$

$

Not available

0050-340

GEAR, Bevel

$

$

Not available

9070

Murray 84002905

KIT, Hardware, Chute Rotation

Note: (Incl. Ref. Nos. 0310, 0320)

$9.99

$

Usually ships in 2-12 days

0

0310

ADAPTER, Chute Ring

$

$

Not available

0320

RIVET, 4 X 13

$

$

Not available

9080

Murray 707524

KIT, Cardan Joint

Note: (Incl. Ref. Nos. 0060, 0070)

$71.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

0070

UNIVERSAL JOINT

$

$

Not available

9090

Murray 84003715

KIT, Chute Assembly

Note: (Incl. Ref. Nos. 0010, 0040, 0050, 0150, 0190, 0200, 0230, 0250, 0260, 0310, 0320)

$84.99

$

In Stock, only 1 left!

0

0010

SPRING, Extension

$

$

Not available

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0050

WASHER, 6x12x.7, Flat

$

$

Not available

0150

SCREW, Shoulder, M6 X 10

$

$

Not available

0190

NUT, Lock, M6

$

$

Not available

0200

BOLT, Button Head Socket, M6 X 13

$

$

Not available

0230

GASKET, Chute Deflector

$

$

Not available

0250

DEFLECTOR, Chute

$

$

Not available

0260

CHUTE

$

$

Not available

0310

ADAPTER, Chute Ring

$

$

Not available

0320

RIVET, 4 X 13

$

$

Not available

9100

Murray 771893

KIT, Bracket, Chute Rotation Hardware

Note: (Incl. Ref. Nos. 0040, 0100, 0110, 0180)

$7.99

$

Usually ships in 2-12 days

0

0040

WASHER, 6 X 18 X 1.5, Flat

$

$

Not available

0100

SPACER, Chute Rotation Bracket

$

$

Not available

0110

SCREW, Hex Head, M6 X 45

$

$

Not available

0180

NUT, Lock, Hex Flange Head, M6

$

$

Not available

9110

Murray 84003717

KIT, Chute Rotation Rod

Note: (Incl. Ref. Nos. 0060, 0070, 0080, 0220, 0240, 0050-350, 0050-360, 0050-370, 0050-380)

$87.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

0070

UNIVERSAL JOINT

$

$

Not available

0080

ROD, Chute Rotation, Worm

$

$

Not available

0220

ROD, Chute Rotation, Driven

$

$

Not available

0240

ROD, Chute Rotation, Connecting

$

$

Not available

0050-350

PLATE, Rotation Rod, Bevel Gear

$

$

Not available

0050-360

RING, External Retaining, 20

$

$

Not available

0050-370

WASHER, Wave, 20

$

$

Not available

0050-380

SCREW, Hex Washer Head, M6 X 12

$

$

Not available

9120

Murray 84003716

KIT, Chute Rotation Bracket

Note: (Incl. Ref. Nos. 0020, 0030, 0160, 0210)

$64.99

$

Usually ships in 2-12 days

0

0020

WASHER, Lock, M8

$

$

Not available

0030

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

0210

BRACKET, Chute Rotation Upper

$

$

Not available

9130

Murray 771996

KIT, Bracket, Chute Rotation Hardware

Note: (Incl. Ref. Nos. 0020, 0030, 0160)

$13.99

$

Usually ships in 2-12 days

0

0020

WASHER, Lock, M8

$

$

Not available

0030

WASHER, Flat, 8 X 16 X 1.2

$

$

Not available

0160

SCREW, Hex Head, M8 X 45

$

$

Not available

9140

Murray 771921

KIT, Spring Pin, 4 X 20

Note: (Incl. Ref. No. 0060)

$6.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

9150

Murray 707543

KIT, Worm Gear Hardware, Chute

Note: (Incl. Ref. Nos. 0060, 0120, 0130, 0140, 0170)

$36.99

$

Usually ships in 2-12 days

0

0060

PIN, 4 X 20, Spring

$

$

Not available

0120

BRACKET, Chute Rotation, Worm

$

$

Not available

0130

BOLT, Carriage, M8 X 30

$

$

Not available

0140

GEAR, Chute Rotation, Worm

$

$

Not available

0170

NUT, Hex Flange Head, M8

$

$

Not available
