S 125XT (5901506) - Snapper Pro S125XT Series 61" Zero-Turn Mower, 26hp Kawasaki Instrument Control Panel Group - Kawasaki Fuel Injected Models Parts Diagram

S125XT Series 61" Zero-Turn Mower, 26hp Kawasaki

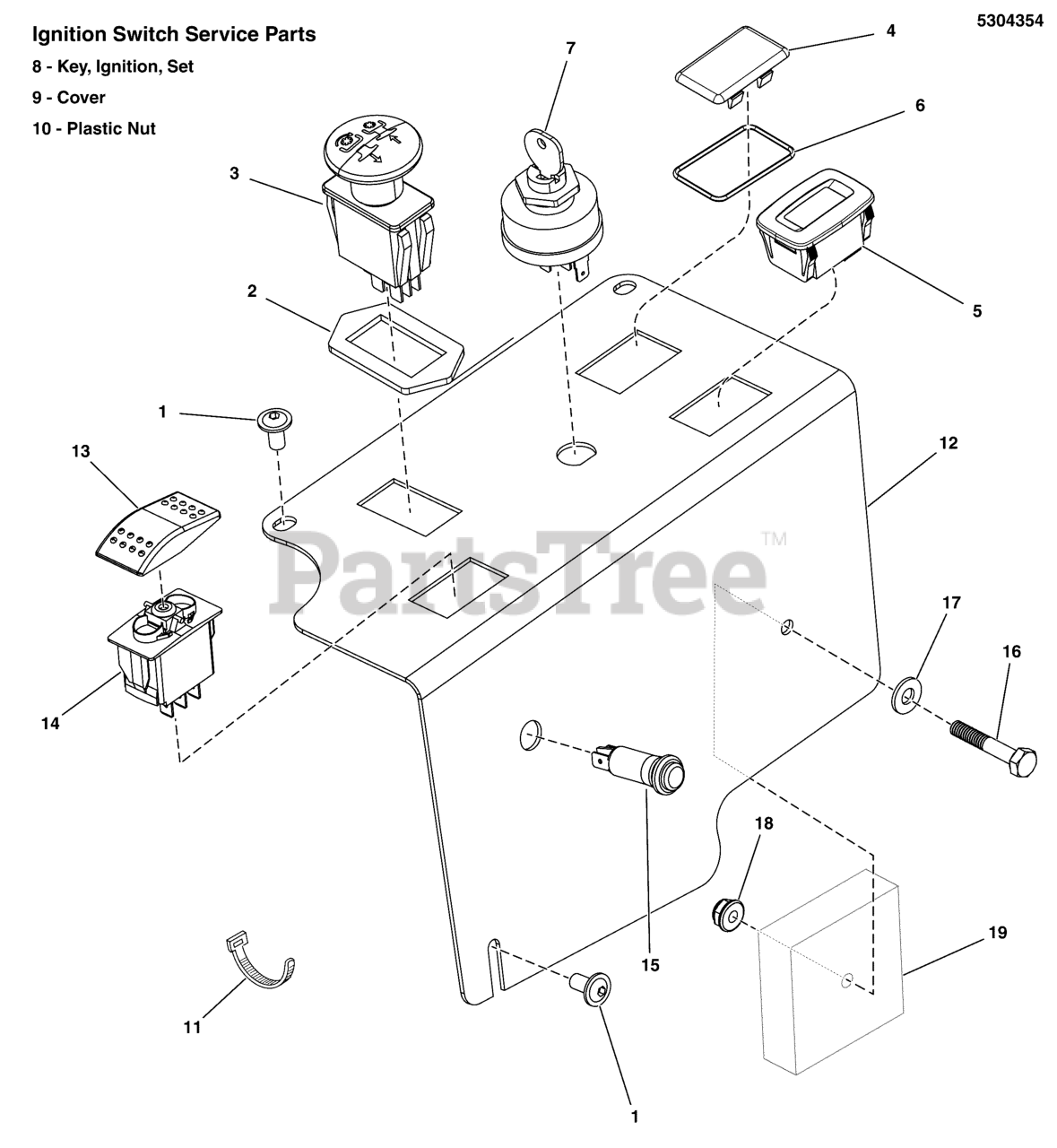

Instrument Control Panel Group - Kawasaki Fuel Injected Models Parts Diagram

  • Title

1

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

3

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 17

0

4

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, only 4 left!

0

5

* HOUR METER, ASSEMBLE

$

$

Not available

6

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

9

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5021030

TIE,SELF-LOCKING, 6"
(Superseded to 5021030SM)

$2.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5414578A

PLATE, CONTROL PANEL, S125XT,KAV EFI - BLK

$

$

Currently unavailable

13

Snapper Pro 5102219

ACTUATOR, ROCKER SWITCH, RED
(Superseded to 84006404)

$6.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5102218

BODY, ROCKER SWITCH
(Superseded to 84006405)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$29.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025010X12

BOLT, 1/4-20 X 1-1/2 GD5 CZ
(Superseded to 5025010X12SM)

$2.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

19

MODULE, THROTTLE CONTROL (SEE ELECTRICAL GROUP - KAWASAKI FUEL INJECTED MODELS)

$

$

Not available
