S 125XT (5901630) - Snapper Pro S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton 52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

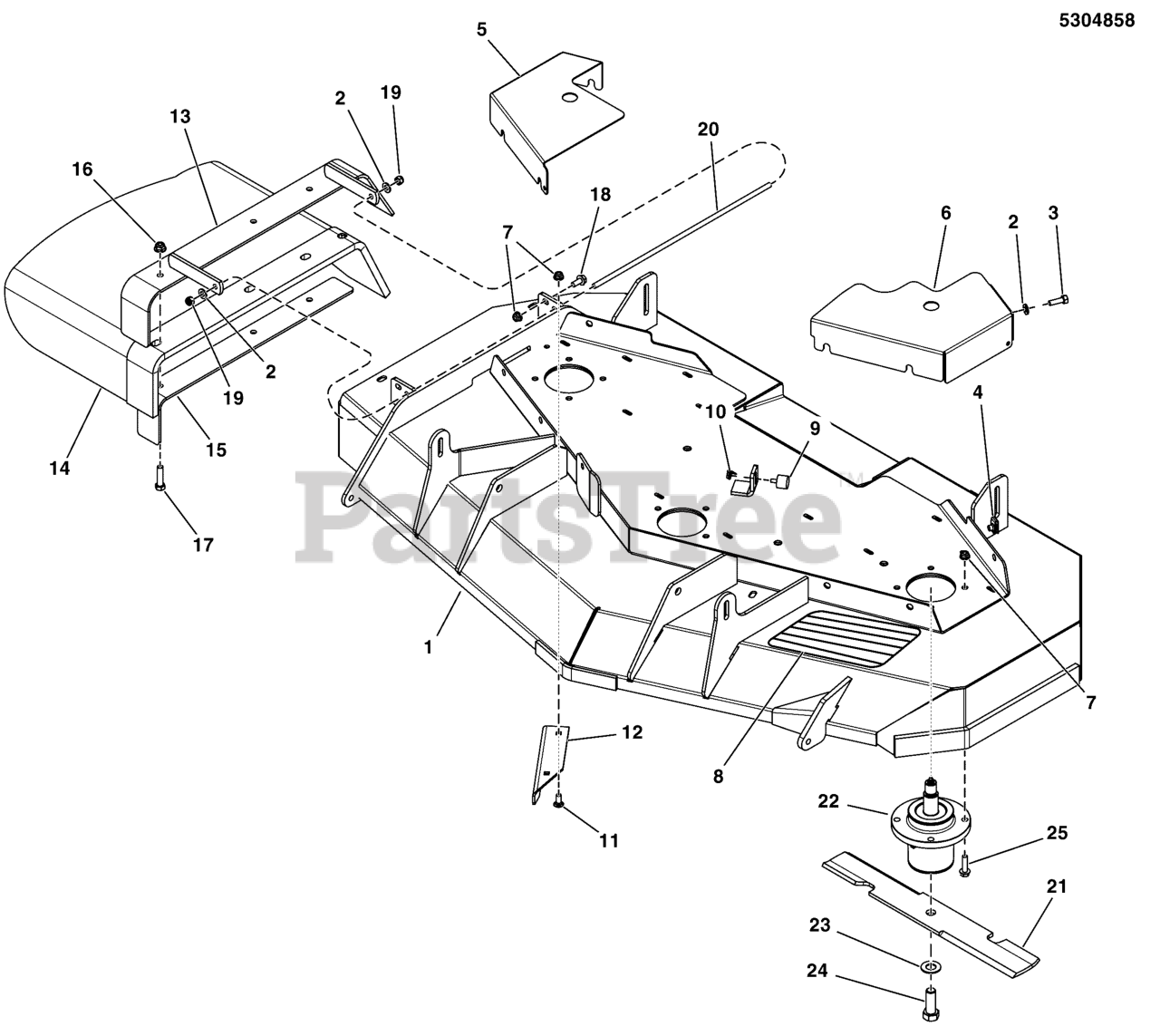

52" Mower Deck - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5600993

DECK SHELL W/DECALS, 52, 125 (5422048D)

$2665.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

3

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

Note: (Torque to 17 ft.lbs (23 Nm))

$3.99

$

In Stock, Qty 7

0

4

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 4 left!

0

5

Snapper Pro 5415634D

GUARD, RH 52", 560/700/125
(Superseded to 5415634DYP)

$46.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5410492D

GUARD, 52 DECK, LH - RED
(Superseded to 5410492DYP)

$45.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$20.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Snapper Pro 5405557A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5405557AAFS)

$20.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

$68.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5413500

CHUTE, RUBBER DISCHARGE (5104442)

$216.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

$31.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

$4.49

$

In Stock, only 3 left!

0

18

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

19

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 15

0

20

Snapper Pro 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Currently unavailable

22

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer Sold Seperately)

$231.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$4.49

$

In Stock, Qty 20+

0

24

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

Note: (Torque to 70 ft.lbs (94 Nm))

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$4.49

$

In Stock, Qty 7

0
