S 125XT (5901633) - Snapper Pro S125XT Series 61" Zero-Turn Mower, 26hp Kawasaki Electrical Group - S/N: 2017954955 & Below Parts Diagram

S125XT Series 61" Zero-Turn Mower, 26hp Kawasaki

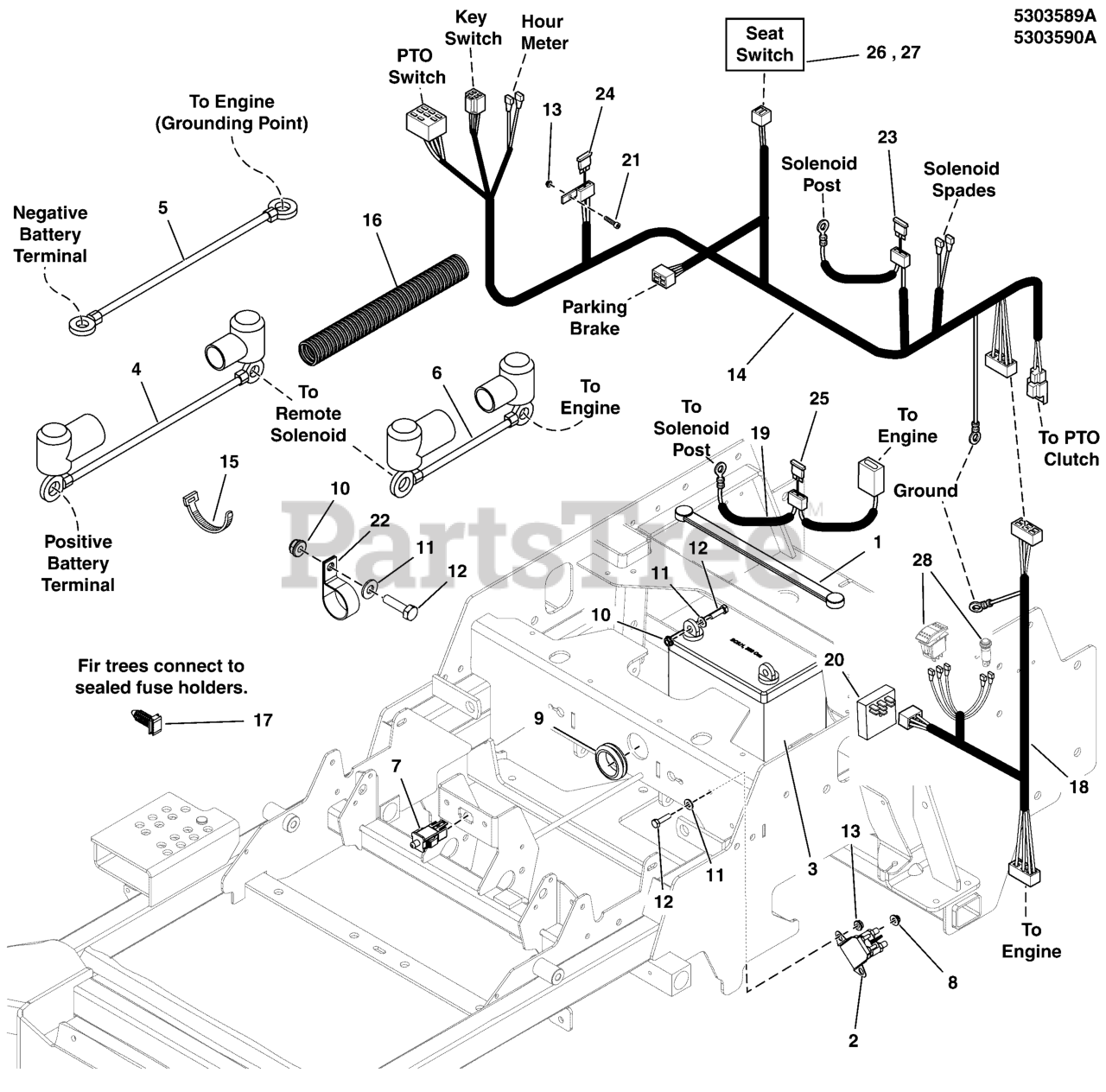

Electrical Group - S/N: 2017954955 & Below Parts Diagram

  • Title

1

Snapper Pro 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 1755382

SOLENOID, STD-BRACKET, 2-SPADE
(Superseded to 1755382FS)

$27.99

$

Usually ships in 2-12 days

0

3

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

4

Snapper Pro 5021405

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5047690

BATTERY CABLE, NEG, 14, 5/16-13/32
(Superseded to 5047690SM)

$16.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5023488

BATTERY CABLE, POS, 22, 1/4-5/16
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

8

Snapper Pro 80003921

NUT,1/4-20,KEPS,CONICAL WSHR,ZC/CL
(Superseded to 703061)

$3.49

$

In Stock, only 3 left!

0

9

Snapper Pro 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

10

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

13

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5416016

WIRE HARNESS, MAIN, SM, ZTR

$176.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

16

Snapper Pro 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

17

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5416382

WIRE HARNESS, JUMPER FX730V, EFI, IS700

$198.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5416597

HARNESS, KAWI, FS, EFI CHARGE JUMPER
(Superseded to 5416597FS)

$53.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5102075

MODULE, THROTTLE CONTROL, KAV DFI

$

$

Not available

21

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5021603

FUSE, ATO, 20 AMP (SV)
(Superseded to 5021603SM)

$4.99

$

In Stock, only 2 left!

0

24

Snapper Pro 5101935

FUSE, ATO, 15 AMP (SV)
(Superseded to 5101935YP)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper Pro 5023454

FUSE, ATO, 40 AMP (SV)

$

$

Currently unavailable

26

Snapper Pro 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

$32.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5105541

SEAT SWITCH, MILSCO, TWIST-IN (SV)

$

$

Currently unavailable

28

SEE INSTRUMENT CONTROL PANEL GROUP

$

$

Not available
