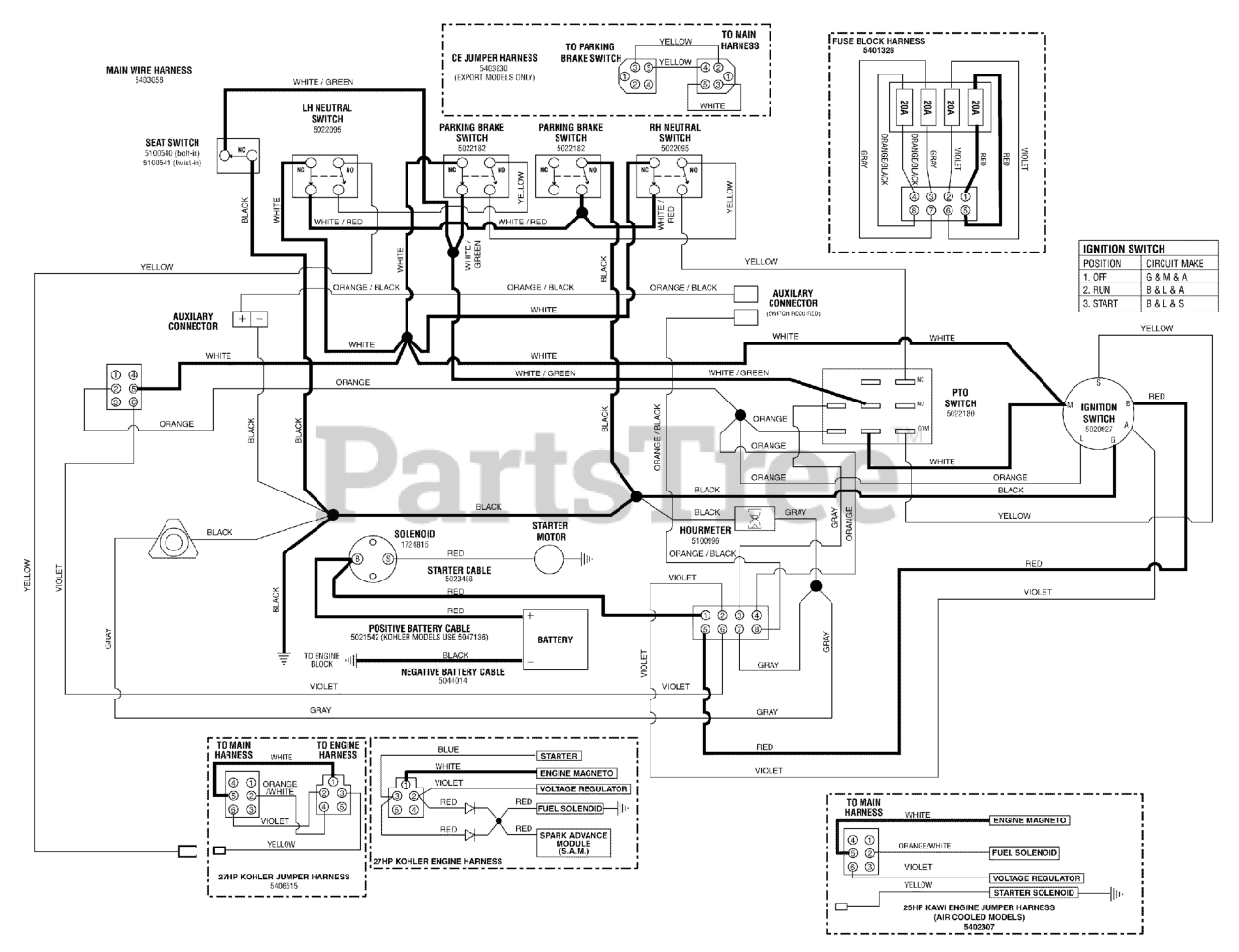

S 150X (5900885) - Snapper Pro S150X Series 52" Zero-Turn Mower, 22hp Kawasaki Electrical Schematic - Ignition Grounding Circuit / Operator Presence Parts Diagram

S150X Series 52" Zero-Turn Mower, 22hp Kawasaki
