S 150X (5900909) - Snapper Pro S150X Series 52" Zero-Turn Mower, 25hp Kawasaki 52" Mower Deck - Housing, Covers, Spindles & Blades (Export Models) Parts Diagram

S150X Series 52" Zero-Turn Mower, 25hp Kawasaki

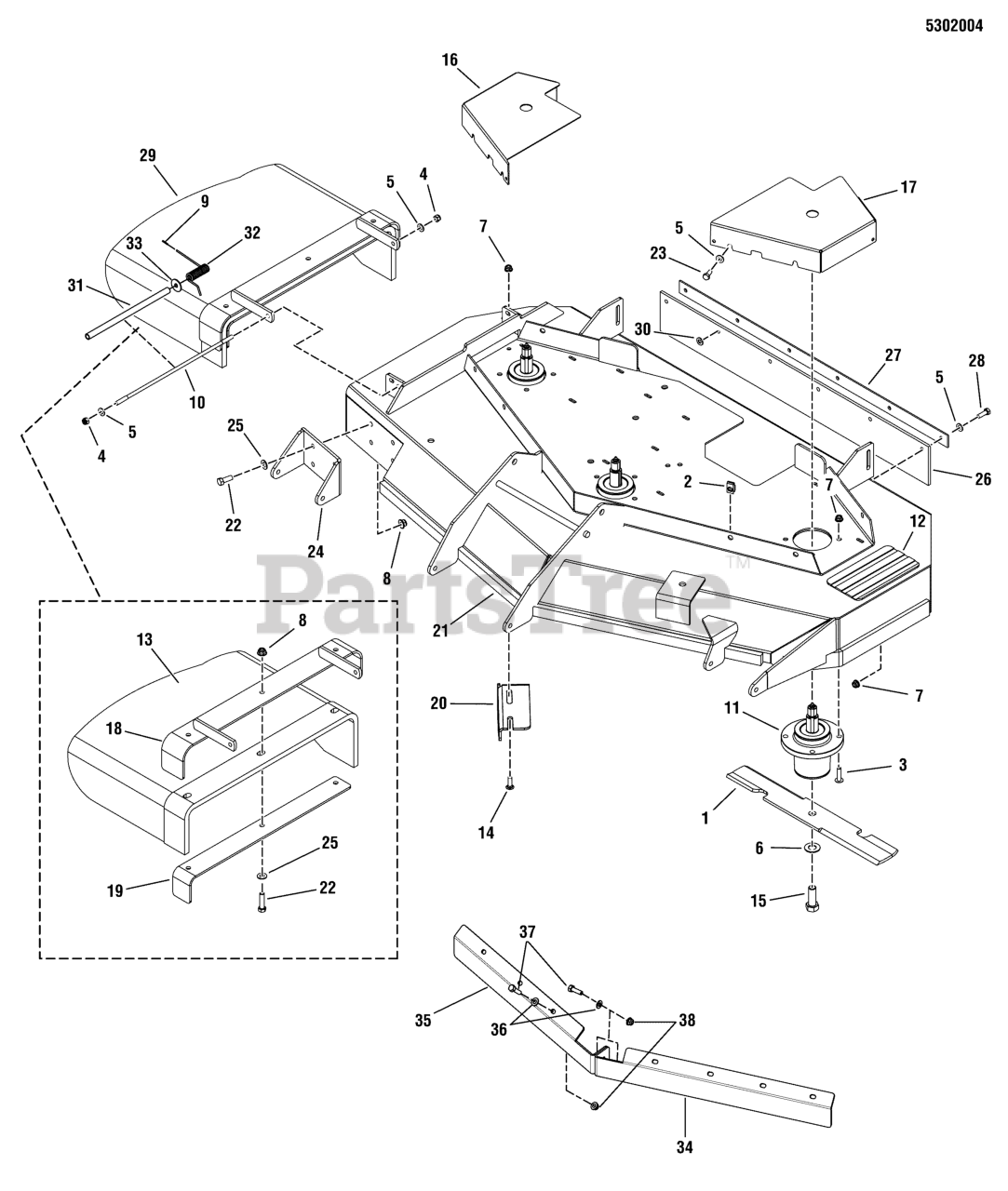

52" Mower Deck - Housing, Covers, Spindles & Blades (Export Models) Parts Diagram

  • Title

1

Snapper Pro 5101756S

BLADE, 18 X .25 X 2.5, 1 X 3.5 (SET OF 3)

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

3

Snapper Pro 5023156

BOLT, 5/16-18 X 1 1/4 FLANGE
(Superseded to 5023156SM)

$3.99

$

In Stock, Qty 5

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025477

WASHER, 5/8 GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 15

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 19

0

9

Snapper Pro 5023489

CAP, PROTECTOR, .120 ID
(Superseded to 5023489SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5061095

ASSM, SPINDLE, LOW PROFILE
(Superseded to 5061095FS)

Note: (Nut and Washer sold seperately)

$231.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5402403

CHUTE, DISCHARGE, RUBBER, 61/72
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5405037D

GUARD, 52 DECK, RH - RED

$43.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5061811D

GUARD, 52" DECK - LH - RED

$

$

Currently unavailable

18

Snapper Pro 5061293D

WELD, FRAME, CHUTE, 61 - SNP RED
(Superseded to 5061293DYP)

$67.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

In Stock, only 1 left!

0

20

Snapper Pro 5405557A

PLATE, DEFLECTOR - BLK
(Superseded to 5405557AAFS)

Note: (52" Models)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600382

DECK SHELL W/ DECALS, 52, S150XCE

$

$

Currently unavailable

22

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

24

Snapper Pro 5404699D

WELD,BRACKET, ANTI SCALP - RED
(Superseded to 5408810DYP)

$41.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102015

FLAP, STRIPER, 52 DECK
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5600131

KIT, DISCHARGE CHUTE

Note: (INCLUDES REF NOS 8, 13, 18, 19, 22, 25)

$

$

Not available

30

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5061598

SPACER, TORSION SPRING,9.63 LG

$

$

Not available

32

Snapper Pro 5023385

SPRING, TORSION
(Superseded to 5023385SM)

$8.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025164

WASHER, 5/16 FENDER
(Superseded to 5025164SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5406204D

BAFFLE, FRONT DISCHARGE, LH,S150XCE, RED

$

$

Currently unavailable

35

Snapper Pro 5406205D

BAFFLE, FRONT DISCHARGE, RH,S150XCE, RED

$

$

Currently unavailable

36

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

37

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

38

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
