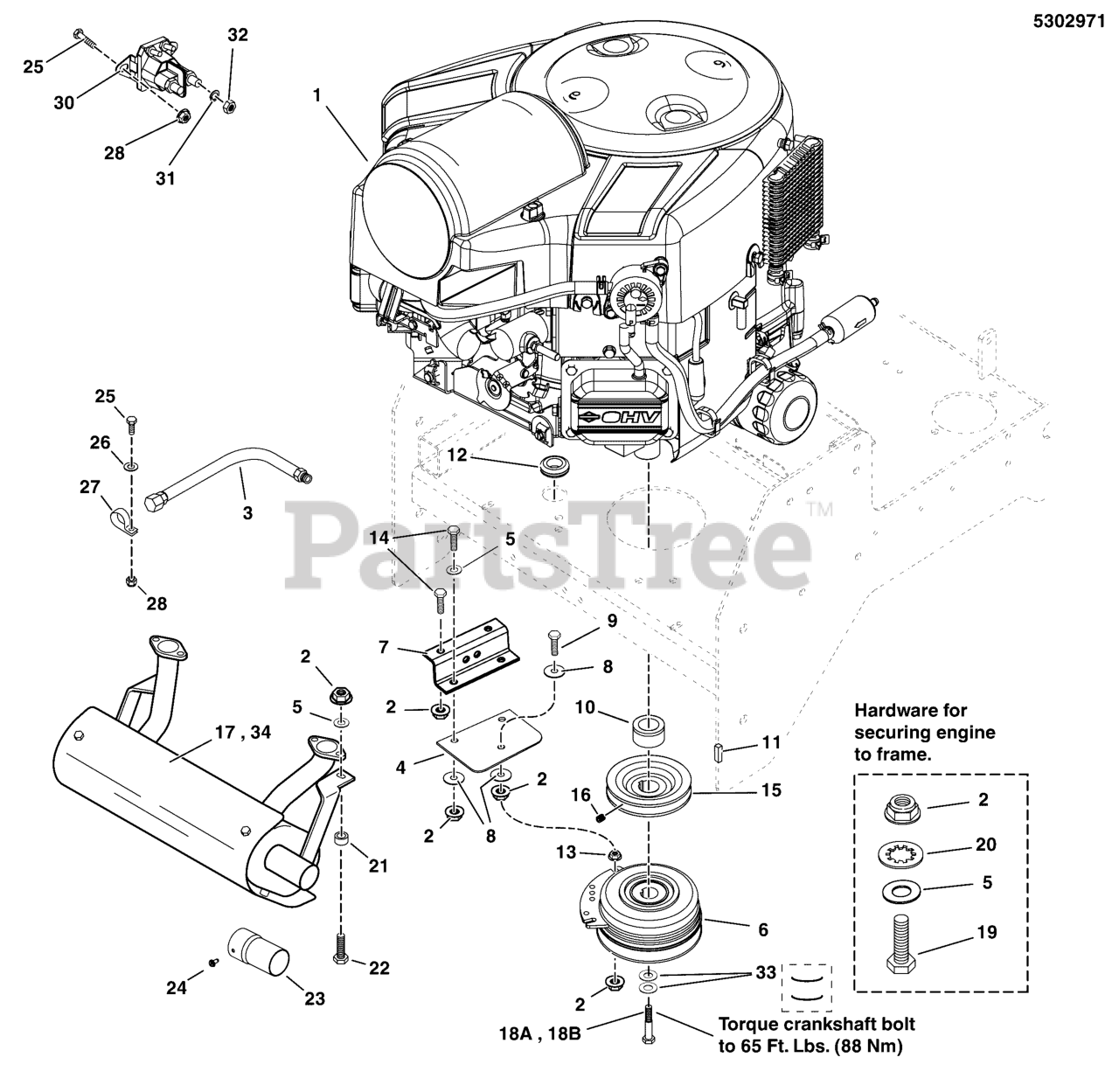

S 150XT (5900574) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton Engine & PTO Group - Briggs & Stratton Parts Diagram

S150XT Series 52" Zero-Turn Mower, 28hp Briggs & Stratton

Engine & PTO Group - Briggs & Stratton Parts Diagram

  • Title

1

* ENGINE, B&S, COMM TURF

$

$

Not available

2

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5105090

** CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5046416A

ANCHOR, CLUTCH - BLK
(Superseded to 5046416AYP)

$16.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

9

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

10

Snapper Pro 5048136

SPACER, 1.13 X 1.75 X 1.25

$15.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

$6.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 7

0

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL
(Superseded to 5025531YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5100907

MUFFLER, B&S-ELS
(Superseded to 5100907SM)

Note: (S/N: 2016294925 & Below)

$

$

Not available

18a

Snapper Pro 5102865

BOLT, CRANKSHAFT,7/16-20X2-3/4
(Superseded to 5102865YP)

Note: (S/N: 2015745414 & Above)

$5.49

$

In Stock, only 1 left!

0

18b

Snapper Pro 5102864

BOLT, CRANKSHAFT,7/16-20X2-1/2, GD8
(Superseded to 5102864YP)

Note: (S/N: 2015745413 & Below)

$5.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5046446

SPACER, .39 X 1.00 X .80, CZ
(Superseded to 5046446SM)

Note: (52" Models)

$7.49

$

In Stock, only 1 left!

0

22

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

Note: (52" Models)

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5021808X8

SCREW
(Superseded to 5021808X8SM)

$3.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

26

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

29

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (SV- NOT SHOWN)

$84.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5023217

WASHER, Light Lock, 5/16
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5023216

NUT, Hex Jam, 5/16-24
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 1 left!

0

34

Snapper Pro 593249

MUFFLER, RIGHT OUTLET ASSY
(Superseded to 706900)

Note: (S/N: 2016294926 & Above)

$222.99

$

In Stock, only 2 left!

0
