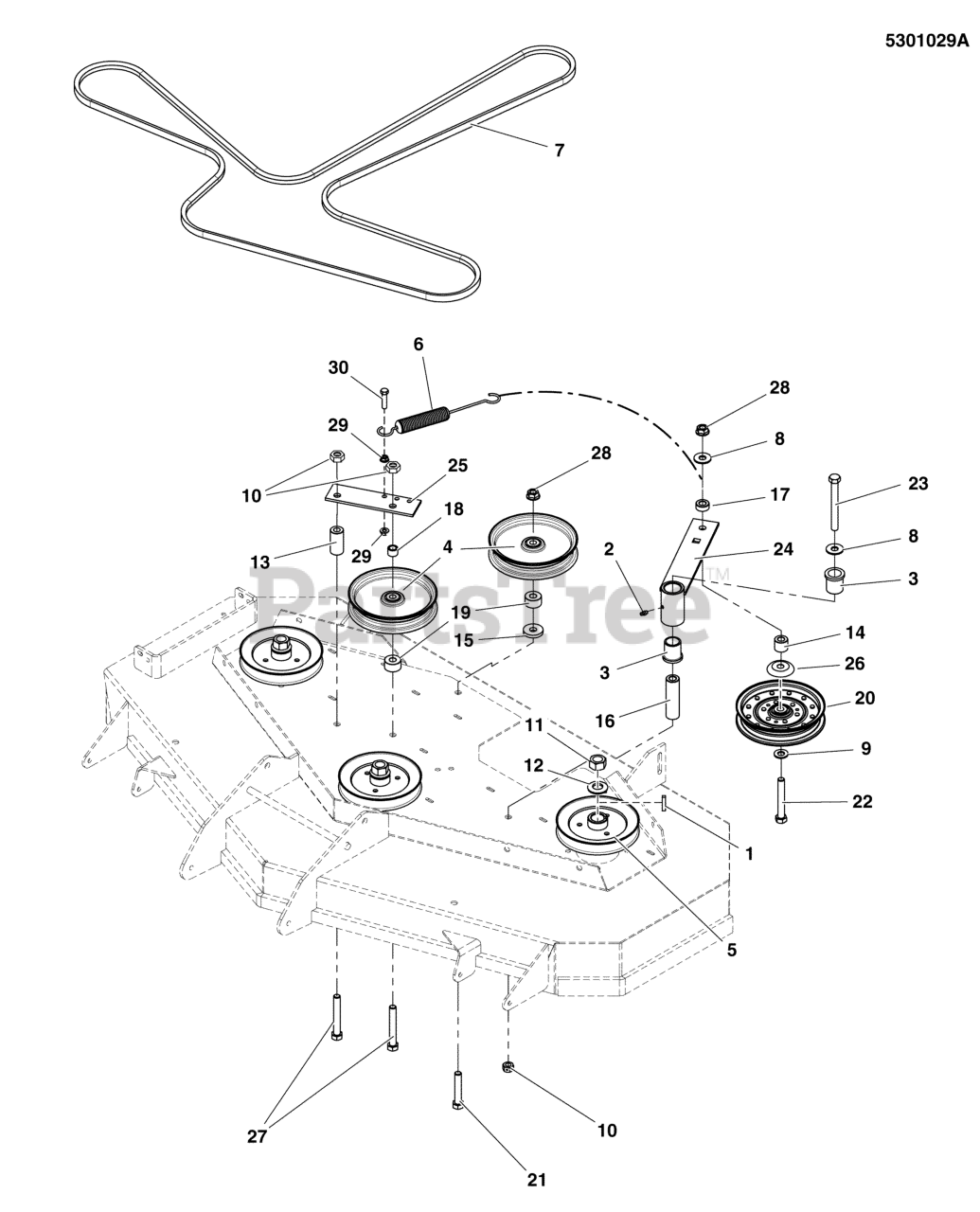

S 150XT (5901208) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki 48" Mower Deck - Pulleys, Belt, & Idler Arm - S/N: 2014985876 & Below Parts Diagram

S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki

48" Mower Deck - Pulleys, Belt, & Idler Arm - S/N: 2014985876 & Below Parts Diagram

  • Title

1

Snapper Pro 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$4.49

$

In Stock, Qty 12

0

2

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$4.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$10.99

$

In Stock, Qty 20+

0

4

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

5

Snapper Pro 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$68.99

$

In Stock, only 2 left!

0

6

Snapper Pro 5023340

SPRING, EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$38.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5023297

BELT, # 7-8671, 147.4

Note: (48" MODELS ONLY)

$112.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$4.49

$

In Stock, only 2 left!

0

9

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$4.49

$

In Stock, Qty 20+

0

10

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, only 4 left!

0

11

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, Qty 8

0

12

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5043607

SPACER, .50 X 1.00 X 2.00

$

$

Currently unavailable

14

Snapper Pro 5044673

SPACER, .52 X 1.00 X .88
(Superseded to 5044673SM)

$9.49

$

In Stock, only 2 left!

0

15

Snapper Pro 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

In Stock, Qty 9

0

16

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$25.99

$

In Stock, only 2 left!

0

17

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

In Stock, only 3 left!

0

18

Snapper Pro 5047027

SPACER, .51 X .75 X .56
(Superseded to 5047027SM)

$5.49

$

In Stock, only 1 left!

0

19

Snapper Pro 5047142

SPACER, .52 X 1.25 X .70
(Superseded to 5047142SM)

$9.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5100529

PULLEY, IDLER, 6.75 OD X 1.62 FACE
(Superseded to 5100529SM)

Note: (Make sure you have bolt # 5025017X28 & spacer 5044673)

$81.99

$

In Stock, only 4 left!

0

21

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 4 left!

0

22

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

In Stock, only 1 left!

0

24

Snapper Pro 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes bushings and grease fitting.)

$120.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5402555D

PLATE, SPRING ANCHOR - RED

$

$

Currently unavailable

26

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, Qty 19

0

27

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, Qty 6

0

28

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 18

0

29

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, only 3 left!

0

30

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 2 left!

0
