S 150XT (5901292) - Snapper Pro S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

S150XT Series 52" Zero-Turn Mower, 26hp Briggs & Stratton

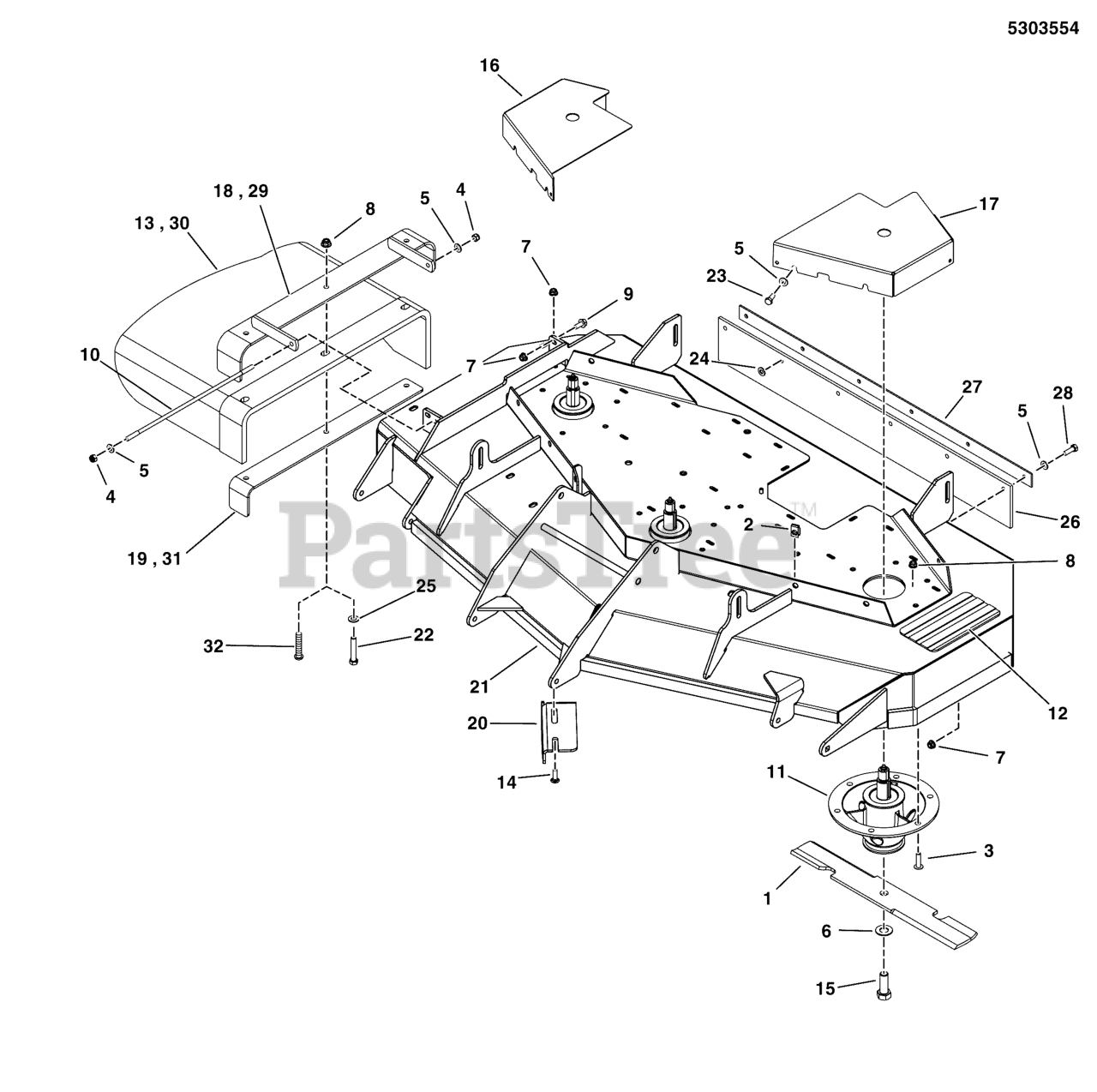

52" Mower Deck Group - Housing, Covers, Spindles & Blades Parts Diagram

  • Title

1

Snapper Pro 5101756S

BLADE SET, 52 SLOPE DECK (SV)

$

$

Currently unavailable

2

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

3

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025477

WASHER, BLADE BOLT, 9/16" F436, CZ
(Superseded to 5025477SM)

$3.99

$

In Stock, Qty 18

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

10

Snapper Pro 5061300

ROD, MOUNT, CHUTE 61, CZ
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5100993

SPINDLE ASSM, CAST IRON 8.0-6 BOLT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101004

SAFETY WALK, 4.00 X 7.50
(Superseded to 5101004SM)

$9.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5410575YP

CHUTE, Discharge

Note: (S/N: 2017100600 & Below)(5103719)

$204.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5408106D

GUARD, 52 DECK, RH - RED

$

$

Currently unavailable

17

Snapper Pro 5061811D

GUARD, 52" DECK - LH - RED

$

$

Currently unavailable

18

Snapper Pro 5410498A

WELD, FRAME CHUTE, 52 - BLK
(Superseded to 5410498AYP)

Note: (S/N: 2017100600 & Below)

$69.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5410404A

SUPPORT, DISCHARGE CHUTE, 52 - BLK
(Superseded to 5410404AYP)

Note: (S/N: 2017100600 & Below)

$24.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5407983A

PLATE, DEFLECTOR, 52 DECK - BLK
(Superseded to 5407983AYP)

$16.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600712

DECK SHELL W/ DECALS, 52, S150XT (5411156D)

Note: (S/N: 2016950122 & Below)

$1956.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5600876

DECK SHELL W/ DECALS, 52, S150XT-DOM (5413377D)

Note: (S/N: 2016950123 & Above)

$1956.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

Note: (S/N: 2017100600 & Below)

$3.99

$

In Stock, only 3 left!

0

23

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

24

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

Note: (S/N: 2017100600 & Below)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102015

FLAP, STRIPER, 52 DECK
(Superseded to 5102015YP)

$62.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5405238A

PLATE, SUPPORT - BLK
(Superseded to 5405238AYP)

$30.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5413400A

WELD, MOUNT, DISCHARGE CHUTE - BLK
(Superseded to 5413400AA)

Note: (S/N: 2017100601 & Above)

$66.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5413500

CHUTE, RUBBER DISCHARGE

Note: (S/N: 2017100601 & Above)(5104442)

$216.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5413398A

SUPPORT, DISCHARGE CHUTE - BLK

Note: (S/N: 2017100601 & Above)

$31.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025146X12

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ
(Superseded to 5025146X12YP)

Note: (S/N: 2017100601 & Above)

$3.99

$

In Stock, only 1 left!

0
