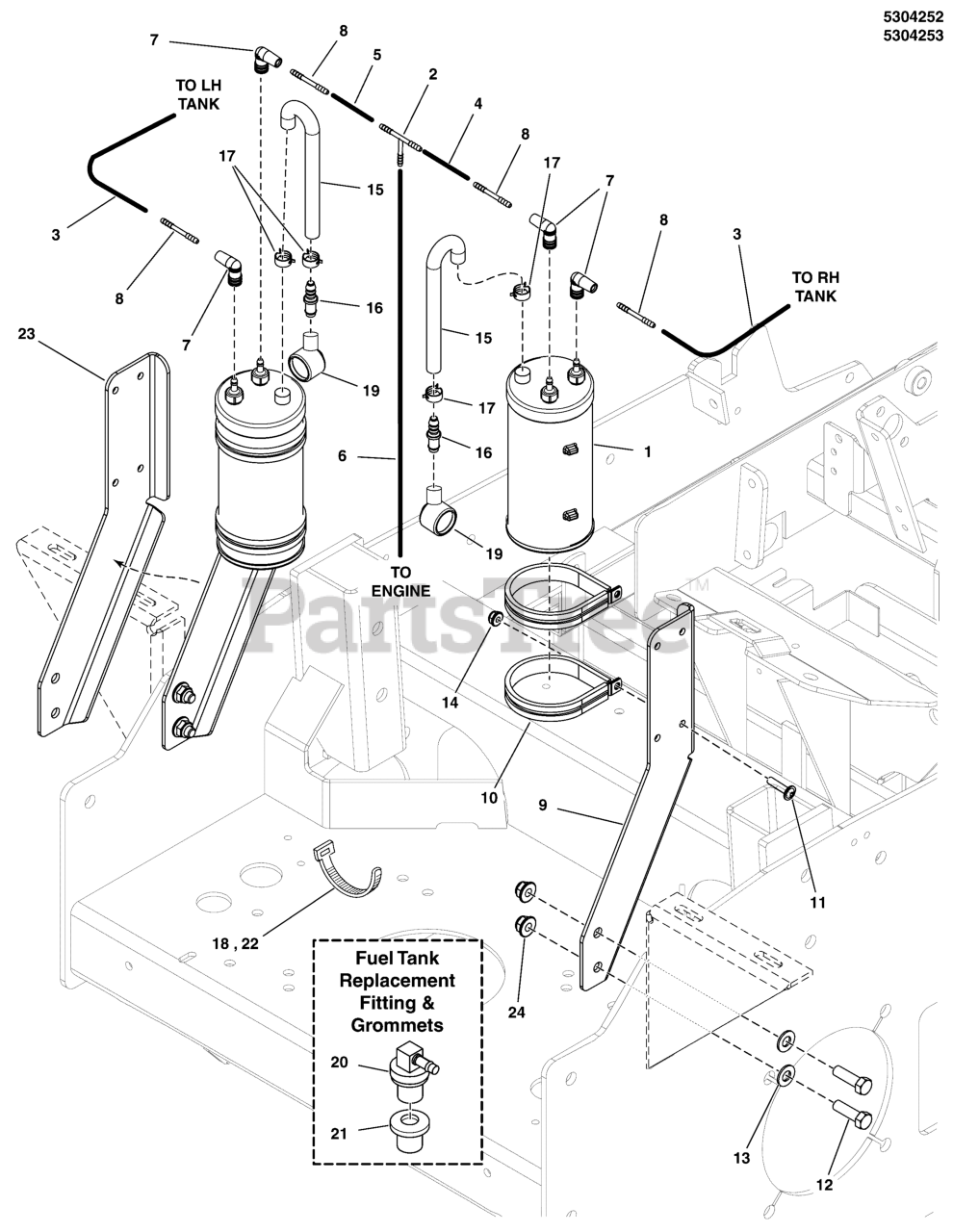

S 150XT (5901488) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki, CARB Evap Canister Group - CAL Models Parts Diagram

S150XT Series 48" Zero-Turn Mower, 24hp Kawasaki, CARB

Evap Canister Group - CAL Models Parts Diagram

  • Title

1

Snapper Pro 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$231.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

$10.99

$

In Stock, only 2 left!

0

3

Snapper Pro 7700552X7P5

HOSE, VAPOR, 5MM ID, 7.50 LG

$

$

Currently unavailable

4

Snapper Pro 7700552X40

HOSE, VAPOR, 5MM ID, 40.00 LG
(Superseded to 7700552X40FS)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 7700552X16P5

HOSE, VAPOR, 5MM ID, 16.50 LG

$

$

Currently unavailable

6

Snapper Pro 7700552X22

HOSE, VAPOR, 5MM ID, 22.00 LG
(Superseded to 7700552X22YP)

$9.49

$

In Stock, only 2 left!

0

7

Snapper Pro 5103082

FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
(Superseded to 5103082YP)

$10.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5103084

FITTING, STRAIGHT, 3/16X3/16, PLASTIC
(Superseded to 5103084YP)

$11.99

$

In Stock, only 2 left!

0

9

Snapper Pro 5414303A

BRACKET, EVAP MOUNT, RIGHT - BLK

$

$

Currently unavailable

10

Snapper Pro 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$8.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$4.49

$

In Stock, only 4 left!

0

13

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$4.49

$

In Stock, Qty 7

0

15

Snapper Pro 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$35.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5100772

TIE, SELF-LOCKING, 15"

$

$

Currently unavailable

19

Snapper Pro 1752800

DUST FILTER, CANISTER (SV)
(Superseded to 1752800YP)

$15.99

$

In Stock, only 2 left!

0

20

Snapper Pro 770046

REMOTE VENT ASSEMBLY

$17.99

$

In Stock, only 2 left!

0

21

Snapper Pro 209043

GROMMET (SV)
(Superseded to 799624)

$9.49

$

In Stock, only 3 left!

0

22

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

23

Snapper Pro 5414302A

BRACKET, EVAP MOUNT, LEFT - BLK

$

$

Currently unavailable

24

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0
